Pipe Welding Line for HG50

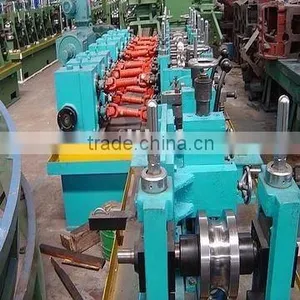

Pipe Welding Line for HG50 thumbnail-1
Pipe Welding Line for HG50 photo-1
US$ 44,444 - 77,777 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Pipe Production Line, steel pipe making machine
Pipe Material:
Carbon Steel
Application:
Energy Supply Pipe
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Pipe Production Line, steel pipe making machine
Pipe Material Carbon Steel
Application Energy Supply Pipe
Place of Origin Hebei, China
Brand Name ZTZG
Model Number HG50

Specifications

Commodity:steel pipe making machine
1) Pipe OD: 20mm-50mm Thickness: 0.8mm-3.0mm
2) Square tube: 20mm*20mm-40mm*40mm

Commodity:pipe welding line



I. Brief introduction:

50mm welded pipe production line is designed to produce welded pipes of 20mm-50mm in OD and 0.8mm-3.0mm in wall thickness, as well as corresponding square and rectangle tube.



II. Basic Technical Information:

1.Specification of pipes

Pipe OD: 20mm-50mm                  Thickness: 0.8mm-3.0mm

Square tube: 20mm×20mm-40mm×40mm, Thickness: 0.8mm-2.0mm

Length: 6 -12m                         Length Tolerance: ±3mm

2.Raw Material:

Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

3. Tube mill

Production Speed : 20-80 m/min

Direction :

left to right or right to left from operator`s side decided by customers.



III. The technical flow of the production line

pipe welding line for HG50



IV. Makeup of tube mill line

1. Double-reel Mechanical Uncoiler

2. Shear & Butt Welder

3. Cage Loop(Accumulator)

4. Tube mill

5. Solid State H.F. welder

6. CNC Flying Saw

7. Output Rollway

8. Rollers
