Help CenterERW32mm Roll Forming Machines
Related Products
Specifications
Commodity:ERW32mm roll forming machines1) OD: 10-32mm
2) Thickness: 0.6mm-2.0mm
We have our own design teams and factory.
Commodity: ERW 32mm roll forming machines
Zhongtai pipe production line is designed to manufacture pipe or tube used in metallurgy, construction, transportation, machinery and vehicle industries. It makes pipe or tube of carbon steel strip by cold roll forming technology, which is developed by our company on basis of world advanced forming technology as well as our former technology and skills. Our innovative production line and each single unit of the production line are not only economical but also practical. With our technology, the customer shall reduce 60% expense on tooling and improve production effiency and gain maximum economic benefit.
I. Brief introduction:
HG32 welded pipe making machine is designed to produce welded pipes of 10mm-32mm in OD and 0.6mm-2.0mm in wall thickness, as well as corresponding square and rectangle tube.
Its Basic Technical Information:
II. Specification of pipes
Pipe OD: 10mm-32mm Thickness: 0.6mm-2.0mm
Square tube: 10mm×10mm -25mm×25mm, Thickness: 0.6mm-1.5mm
Length: 6 -12m Length Tolerance: ±3mm
2. Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill:
Production Speed: 20-80 m/min
Direction:
left to right or right to left from operator`s side decided by customers.
III. The technical flow of the production line
IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)

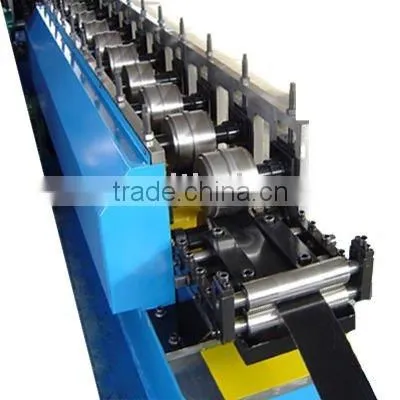

4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
