Help CenterHG610 ERW Steel Tube Mill
Related Products
Specifications
610mm ERW tube mill is designed to produce welded pipes of 219mm-610mm in OD and 6mm-20mm in wall thickness, as well as squareCommodity: ERW tube mill
610mm ERW tube mill is designed to produce welded pipes of 219mm-610mm in OD and 6mm-20mm in wall thickness, as well as corresponding square and rectangle tube.
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 219mm-610mm Thickness: 6mm-20mm
Square & rectangle tube: 170mm*170mm-480mm*480mm,
Thickness: 6.0mm-17mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: HR & CR Carbon steel coil(GB Q195Q345 / APIX80)
3. Tube mill
Production Speed : 10-30 m/min
III. The technical flow of the production line

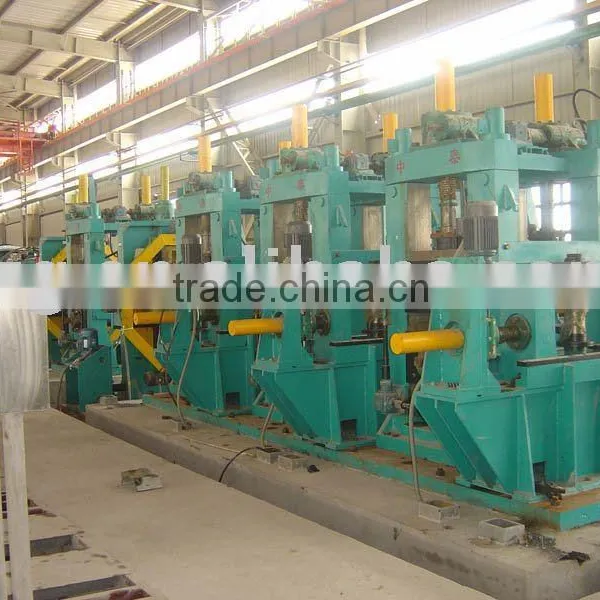

IV. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop (Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
