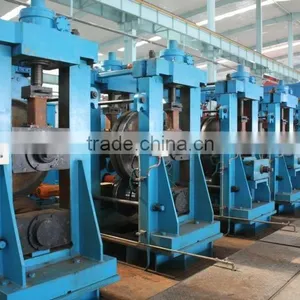

Help CenterHG219 Cold Forming Section Steel Mill
Related Products
Specifications
HG219 cold forming section steel mill1 OD 76-219mm
2 Thickness 2-6.0mm
Commodity: cold forming section steel mill for HG219

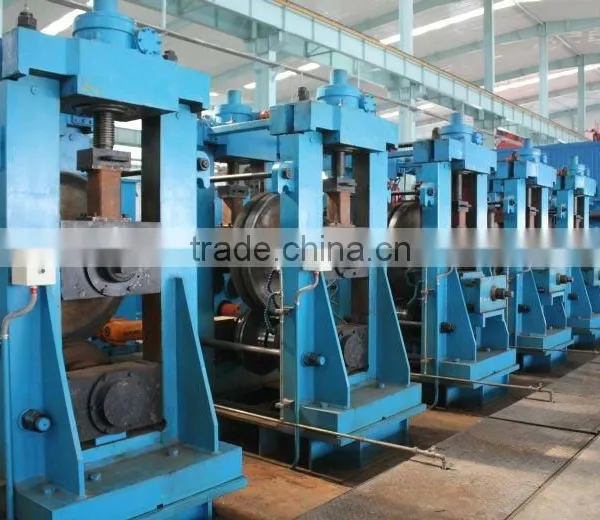

HGΦ219 high frequency longitudinally welded tube making machine is used to manufacture welded steel pipes of Φ76mm-Φ219mm with 2mm-6.5mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production lines are both economical and practical.
Technical Flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: Φ76mm-219mm
wall thickness :2mm-6.5mm
II. Square and rectangle tube : 60*60mm-180*180mm
wall thickness range 2-5mm
III .Tube and pipe length: 6--12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
3 Line specification
production speed:0-50m/min
Line Direction: right to left(from operator' s side)
