ERW tube making machine
- 10 Set / Sets per Month
- Xingang
- T/T
You May Like
Product Details
| Type | Pipe Production Line | Pipe Material | Carbon Steel | |
| Application | Drain Pipe | Place of Origin | Hebei, China | |
| Brand Name | ztzg, ZTZG | Model Number | HG140 |
Product Description
140mm ERW pipe making machine is designed to produce Iwelded pipes of 60mm-140mm in OD and 2.0mm-5.0mm in wall thickness, as well as corresponding square and rectangle tube.
I. Basic Technical Information:
1.Specification of pipes
Pipe OD: 60mm-140mm Thickness: 2.0mm-5.0mm
Square tube: 40mm×40mm 110mm×110mm, Thickness: 2.0mm-4.0mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80
3. Tube mill
Production Speed : 10-60 m/min
Direction : left to right or right to left from operator`s side decided by customers.
II. The technical flow of the production line
Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming →HFwelding→Removing & outsied Bead →Cooling→Sizing→Cutting off→
Conveying →Downloading → Packing →Warehousing

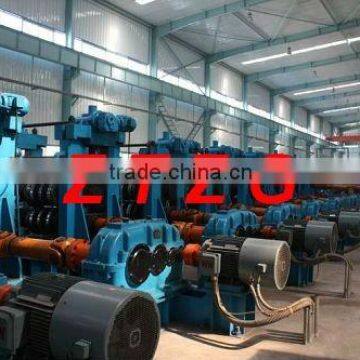

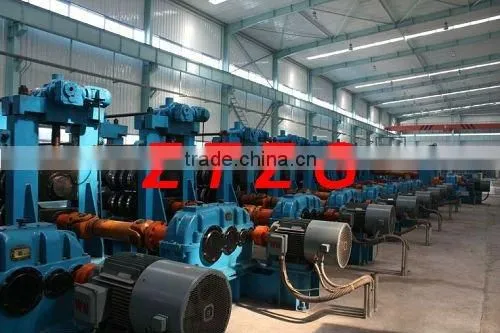

III. Makeup of tube mill line
1. Double-reel Mechanical Uncoiler
2. Shear & Butt Welder
3. Cage Loop(Accumulator)
4. Tube mill
5. Solid State H.F. welder
6. NC Flying Saw
7. Output Rollway
8. Rollers
