Product Details
Place of Origin: | Guangdong, China | Brand Name: | Suntor | Model Number: | ST5817H |
Product Description

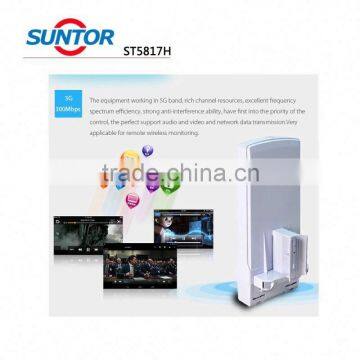

2016 New product projector 1080p Portable Multimedia wireless
Frequency: 5100-5900MHz
Transmit Power: 26dBm

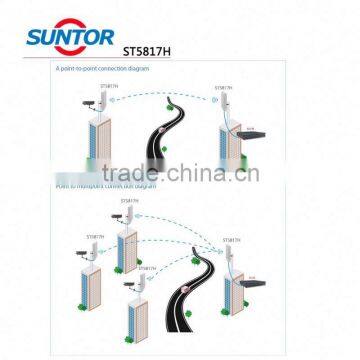

Wireless Mode:PTP and PTMP
Support Range: 1-3km(LOS)
Working Voltage: DC12-24V
Operation temperature: -30°C~ +70°C
Function: Audio video and network signal
Features

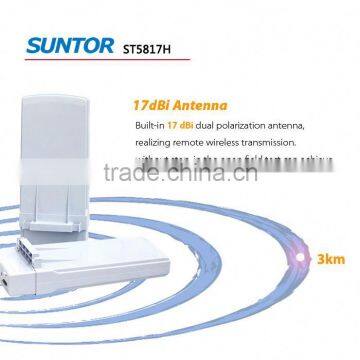

- Built-in 17dBi directional dual-polarized antenna, support antenna signal calibration
- High Transmission Power up to 26dBm and enhanced sensitivity performance
- High Speed Data Rate Up to 300Mbps 2T2R, the transmission signal is strong and stable
- Built-in Software Detects Surrounding Frequency Interference, use the best channel to transmit stable
- Support PoE, Passive PoE24V

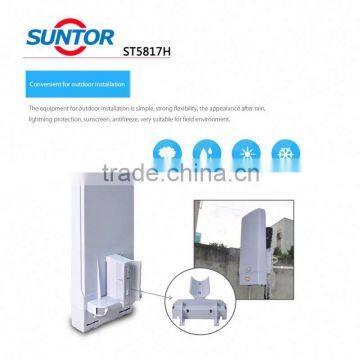

- IP66 Weatherproof casing and grounding terminal
Product Name | 2016 New product projector 1080p Portable Multimedia wireless | |||||
Model | ST5817H | |||||
System information | ||||||
Standards Compliance | IEEE 802.11a/n | |||||
CPE Processor | Atheros AR9342 (560MHz) | |||||
Memory Size | 64MB DDR2 | |||||
NOR Flash | 8MB (max 16MB optional) | |||||
Modulation | OFDM | |||||
LAN Interface | 2 FE ports with Auto-MDI/X | |||||
Antenna | Integrated 5GHz 17dBi directional dual-polarization antenna | |||||
Power Consumption | 5.5 Watts | |||||
Power method | Passive PoE | |||||
Humidity | Operating: 5% to 95% (non-condensing) Storage: Max.90% (non-condensing) | |||||
Temperature Range | Operating:-30ºC to 70ºC Storage: -40ºC to 90ºC | |||||

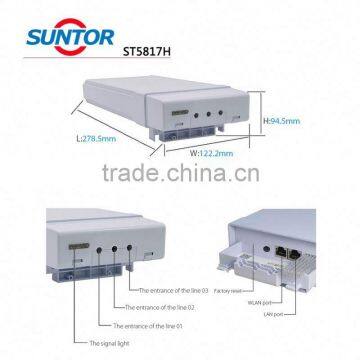

Dimensions (H x W x D) | 278.5 x 122.2 x 94.5 (mm) | |||||
Connections data | ||||||
Max of clients | encryption | 100 | ||||
Max of concurrent associations | TCP, each station upload and download randomly from 384Kbps to 768Kbps | UDP, each station upload and download 2Mbps | ||||
WPA2-PSK | 40 | 20 | ||||
Transmit Power & Receiver Sensitivity | ||||||
Transmit Power | Data Rate | 5GHz (aggregate) | ||||
HT20 MCS0 | 25dBm | |||||
HT20 MCS7 | 19dBm | |||||
HT40 MCS0 | 24dBm | |||||
HT40 MCS7 | 19dBm | |||||
Receiver Sensitivity | Data Rate | 5GHz | ||||
HT20 MCS0 | -94dBm | |||||
HT20 MCS7 | -77dBm | |||||
HT40 MCS0 | -93dBm | |||||
HT40 MCS7 | -75dBm |
2016 New product projector 1080p Portable Multimedia wireless
More wireless network bridge
2016 New product projector 1080p Portable Multimedia wireless
Exhibition
Certificate
Q1: Is the Wireless bridge stability? Do they support lightning protection?
A: Yes. All the bridges adopt USA Atheros CREE XLamp, All of them have been experienced many time times testing. All the products built in anti-thunder module and with interface from where you can connect with a lightning protection equipment.
Q2: Can you make us a detailed solution?
A: Yes, we can. SUNTOR have done over 1,000 successful solutions in different field. We can provide a complete solution according to different requirement.
Q3: How to install?
A: Each product will be tested & debugged by QC so that each of them support plug and play. Besides that each package will have a CD to show you clearly how to install.
Q4: How to supply power?
A: All the wireless bridges support to be powered by DC48V PoE switch.
Q5: In remote area without internet, how does the bridge work?
A: The wireless bridge transmit signal by microwave and it no need of internet.
Q6: How long is the warranty?
A: As usual it is 1year. If you have special requirement, we can offer 2 years warranty.
Q7: What is its application filed?
A: Wireless bridge transmit signal by microwave to instead cable. It have advantage in long distance transmitting. CCTV Projects we ever did are large scale building site, Mine, Petroleum, Forest Fire protection system, Tunnel Construction, high way, safe city, parking lost, harbors and wharfs, military exercises and etc.
