Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > Factory Price 2014 NEW Style 20W Energy Saving Floodlight Led High Efficiency High PF

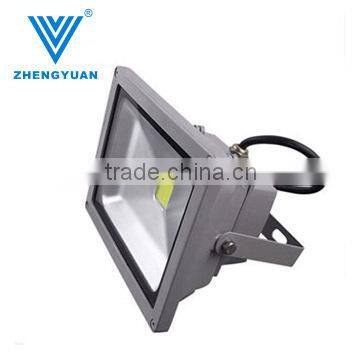

Factory Price 2014 NEW Style 20W Energy Saving Floodlight Led High Efficiency High PF
US$ 15 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD/COB
Input Voltage(V):
85-265
Lamp Power(W):
20
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price Shenzhen 50W Energy Saving Floodlight LedUS$ 20 - 25MOQ: 10 Pieces -
Factory Price Shenzhen 70W High Efficiency High PF Floodlight Led With CE RoHS FCC ApprovedUS$ 30 - 40MOQ: 10 Pieces
-
Led Floodlight Housing Factory Price Energy Saving Floodlight Led High Efficiency High PF CE RoHS FCCUS$ 15 - 20MOQ: 10 Pieces
-
Led Rechargeable Floodlight Factory Price Energy Saving Floodlight Led High Efficiency High PF CE RoHS FCCUS$ 15 - 20MOQ: 10 Pieces
-
Explosion Proof Led Floodlights Factory Price Energy Saving Floodlight Led High Efficiency High PF CE RoHS FCCUS$ 15 - 20MOQ: 10 Pieces
LED Light Source
SMD/COB
Input Voltage(V)
85-265
Lamp Power(W)
20
Lamp Luminous Flux(lm)
1950
Lamp Luminous Efficiency(lm/w)
110
Color Temperature(CCT)
Pure White
Working Temperature(℃)
-20, 60
Working Lifetime(Hour)
50000
Lamp Body Material
Other, Aluminum Alloy, Aluminum + Toughened glass
IP Rating
IP65
Certification
CE, EMC, LVD
Place of Origin
Guangdong, China
Brand Name
Zhengyuan
Model Number
ZY-F20W-001
Specifications
1.Input Voltage: 85-265V2.Output Power:20W
3.5-7 Delivery days
4.OEM/ODM Service
5.High efficiency High PF
Products Description;
| Physical Specifications | ||
| Product size | 20W 80(L)*140(W)*100(H)MM | |
| Weight | 1.75KG | |
| Housing | Aluminum Base+Toughened Glass | |
| Lens | Toughened Glass | |
| Waterproof | IP65 | |
| Base Type | ||
| Work Environment | Outdoor use (applicable for wet and dry environment) | |
| Electrical Specifications | ||
| LED Quantity | 20 LEDs | |
| Power Consumption | 20±1W | |
| Input Voltage | 85-265VAC | |
| Power Factor | >0.96 | |
| Light Source | 5730 SMD LEDs, more than 55LM each | |
| Operation Temperature | -20~40 °C | |
| Optical Specifications | ||
| Power Consumption | 20W | |
| Lumens | Clear | 2000±10%lm |
| Milky | 1950±10%lm | |
| Luminous Efficiency | Clear | 110lm/w |
| Milky | 100lm/w | |
| Color Temperature | Warm White:2800K-3200K | |
| Natural White:3900K-4300K | ||
| Cool White:5600K-6200K | ||
| CRI | >75 | |
| Beam Angle | 120 Degree | |
Product Specification;
1. AC85-265V 50/60Hz
2.90lm/w CRI75
3.3 years warranty,life is more than 50000Hs
4.CE ROHS PSE approved
5.super-bright,No Spot light,No glare,Good for decorative lighting,Sensor sensitivity.
Packaging & Delivery:
Packaging Detail: EPE/white box+ A=A box as client’s requirement.
- Delivery Detail: 3-7days as sample, 7-15 days as normal order
- Advantage:
- 1.Special heat dissipation design and professional thermal management.
2. Good quality with CE ROHS PSE certificate.
3. Anti-shock, anti-hit.
4. High brightness and long life , more than 50,000hours
5. Low power consumption, compared with the traditional Metal halide lamp, can save 70%
energy.
6. Tempered glass cover,No danger of broken glass,Good Light transmittance.
7. In order to meet the different irradiation angles,light direction can be adjustable.
8. Use high-quality silicone gaskets, high performance waterproof.
9. Finished with epoxy powder paint, resistant to corrosion,no fading.
10. Wide beam angle, huge lighting area.
Application:
This product is widely use in Exterior walls, architectural columns and square lighting, garden, the markers, terminals, billboards, parking.

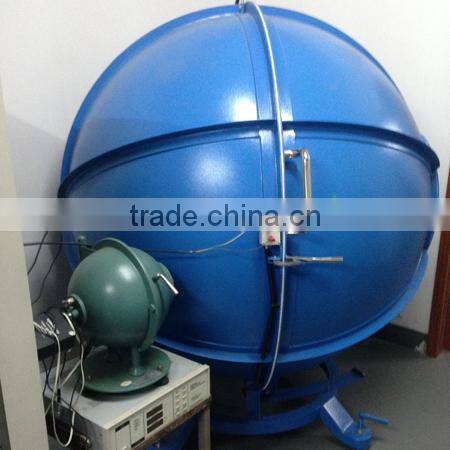

Aging and Testing
Factory Tour;
