2016 Suntor Intelligent 22x 1080P Infrared Digital HD High Speed Dome IP IR Camera

Model

Product model

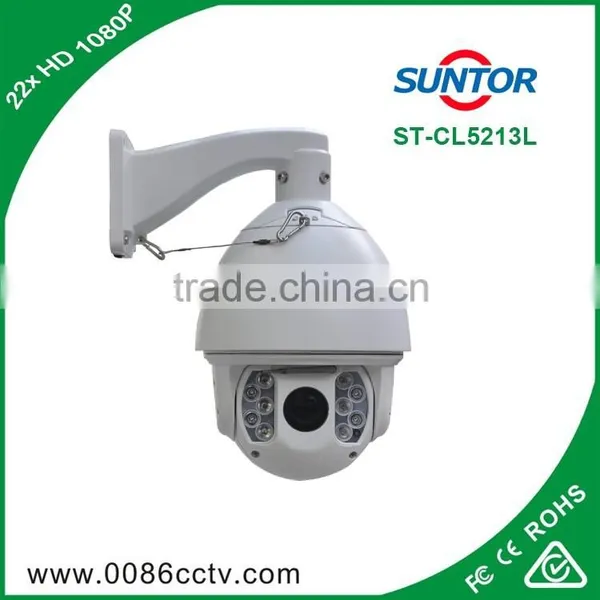

ST-CL5213L

Product name

Intelligent infrared full-function digital high-definition high speed camera

Lens

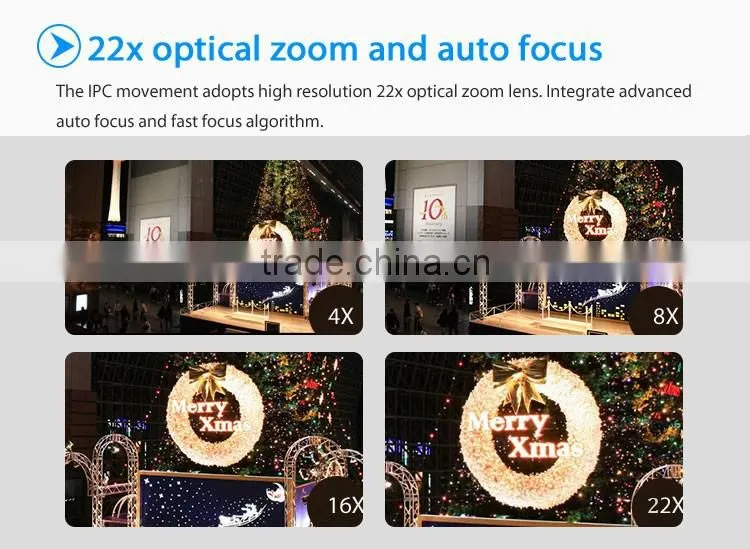

Lens multiples

22x

Focus(mm)

f4.3~94.6mm

Aperture

Fw1.6~Ft3.5

Angle of vision(D*H*V)

Wide:71°x 58.7° x 45°

Tele:4° x 3.2° x 2.4°

Minimum object distance

0.01M(wide) ~ 1.5M(tele)

Zoom speed

≤2.7s

Camera

Image Sensor

1/2.8″2.36MP Pannsonic line-by-line scanning CMOS

Minimum illumination

Color: 0.05Lux @(F1.6,AGC ON), ICR ON

Black-and-white Black-and-white :0.02Lux @(F1.6,AGC ON), ICR OFF

Shutter speed

1/10000s to 1/25s

Day & Night Convert

Day and night type infrared filter switching mechanism automatically

Signal to noise ratio

>52dB

Synchronous System

Internal Synchronization

Compression

Video compression

H.264 High Profile @ Level 5.1 / Motion JPEG

Max resolution

Full HD/1080P(1920x1080)

Horizontal resolution

>1000TVL(1920x1080 pixels)

Multi-stream

1080P + Full D1+CVBS

Video rate

32Kpbs~8Mpbs,In all resolutions at full frame rate simultaneously output multiple video streams,  frame rate and bandwidth can be adjusted  , support VBR/CBR

Frame rate

25/30fps

Audio compression

G.711, AAC, 16kHz 16bit 32kbps MP2

Function

Focus model

Auto Focus ,Zoom Trigger AF,Manual Focus

Exposure Control

Auto ,manual ,Priority (shutter or Max AGC),brightness and so on

Exposure area

Auto ,Center exposure, the global exposure, manually select the area

Exposure Compensation

5 adjustable

White balance

Auto, Scene (incandescent, fluorescent, daylight, flash, etc.), Manual

Gain

auto , Threshold control

Backlight Compensation

On/off

Image Special effects

Rotation and mirroring effects, latitude and longitude image mode

OSD

Multi-zone OSD: Support time and date, the scene name and custom OSD (5 lines ,each line with multiple characters)

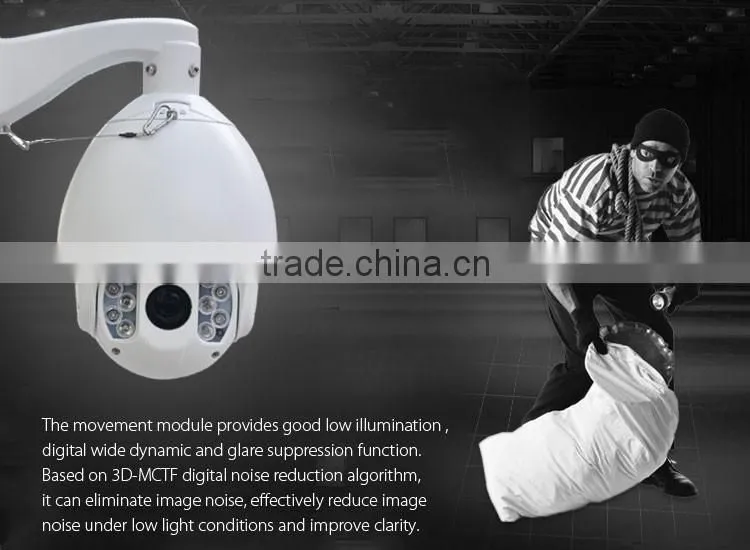

Noise Reduction

3D-MCTF Digital Noise Reduction

Day & Night Mode

Auto / Color / B & W

ICR switch

auto , timer, alarm trigger

Through fog

Support ,*Optional features-DF

Network and interface

Supported protocols

IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP

Compatible protocol

ONVIF, GB/T 28181

Security

Security Password protection, multiple user access control

Web Service

Built-in WEB access the page

API integration

Provides SDK development kit, mobile application APP and supporting NVR and CMS management platform software

Basic

feature

Power supply

24V AC±10%

Power consumption

<45W

Operating temperature / humidity

-30 ℃ ~ 55 ℃, humidity of 20 to 80% (non-condensing)

Storage temperature / humidity

-40 ℃ ~ 60 ℃, humidity 20% to 95% (non-condensing)

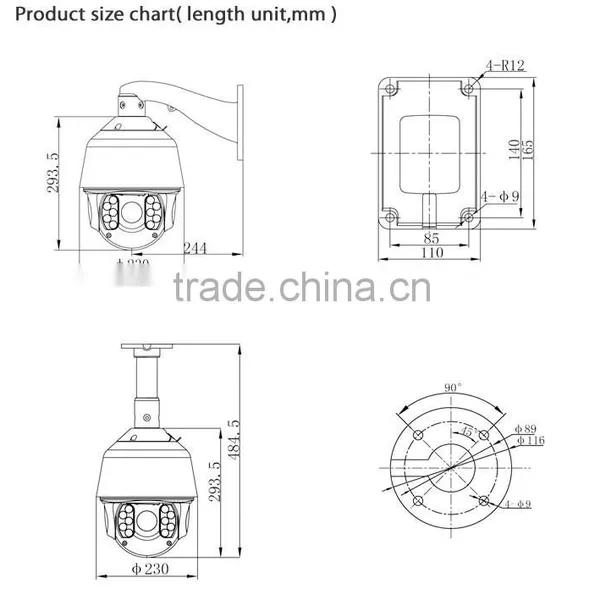

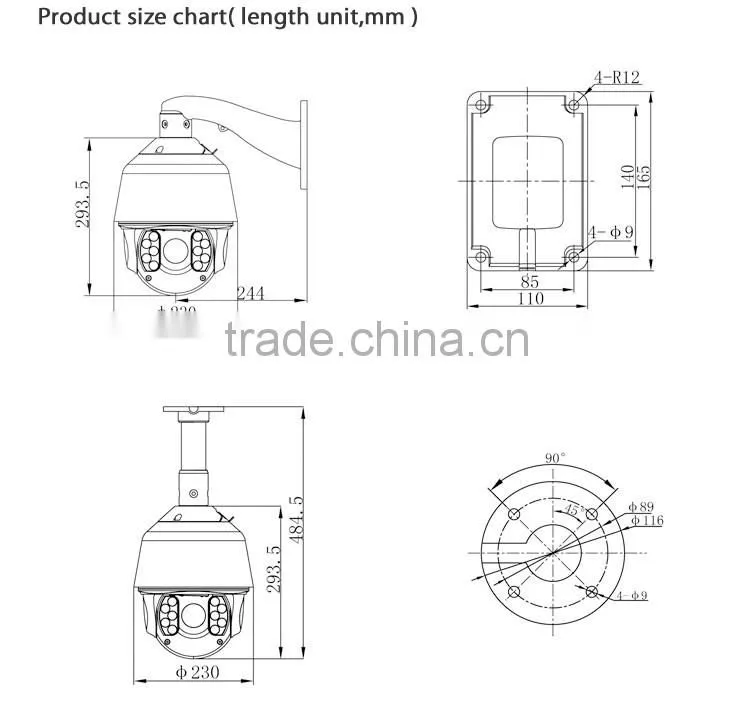

Size (mm)

299*238*231

Camera feature

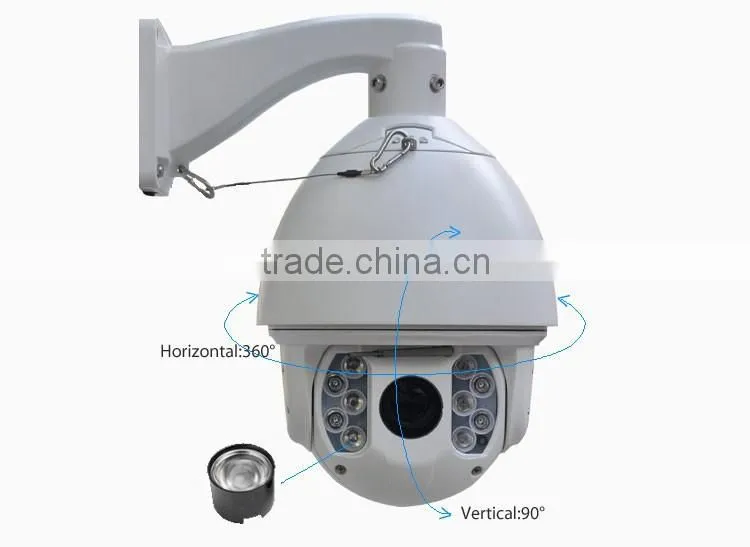

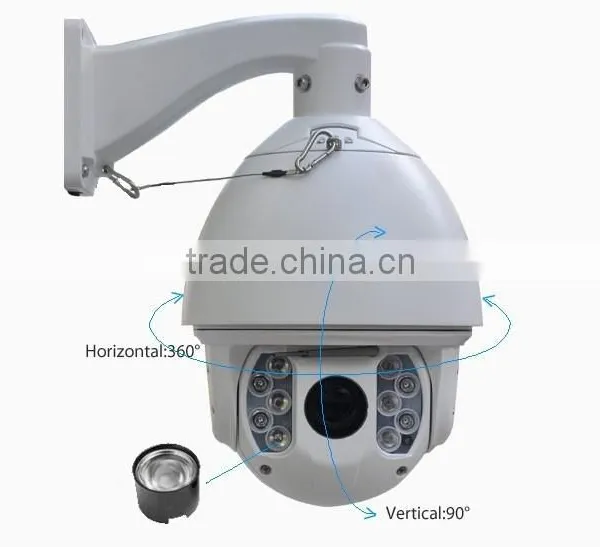

Horizontal range

360°continuous rotation

Level speed

level keying speed: 0.1 ° -260 ° / s, speed can be set, the level of preset speed: 350 ° / s

Vertical range

0°- 90°(Auto Flip)

Vertical speed

120°/s

Telephoto limit

Support

The quantity od preset

256

Cruise Scan

8, each can add 16 presets

Line scan function

8, you can set the scanning direction and speed

Protection range

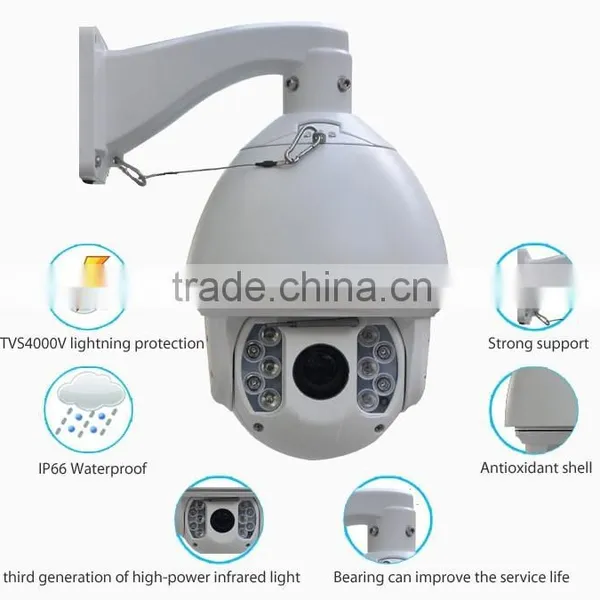

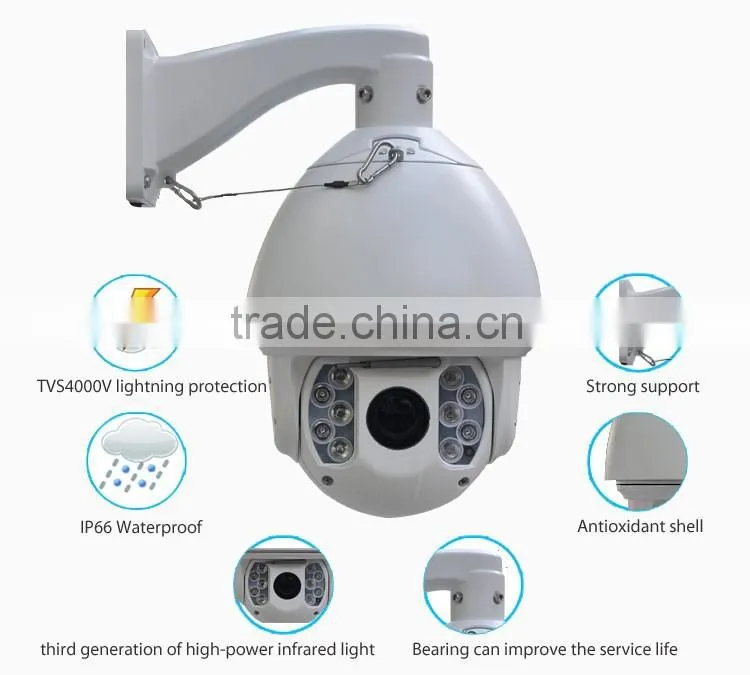

IP66, TVS 4000V anti-thunder , anti-surge, anti-surge
