Specifications
H.264 digital network video server encoder1 Audio compression standards:G.722 and G.711
2.Support D1, Half D1, CIF format

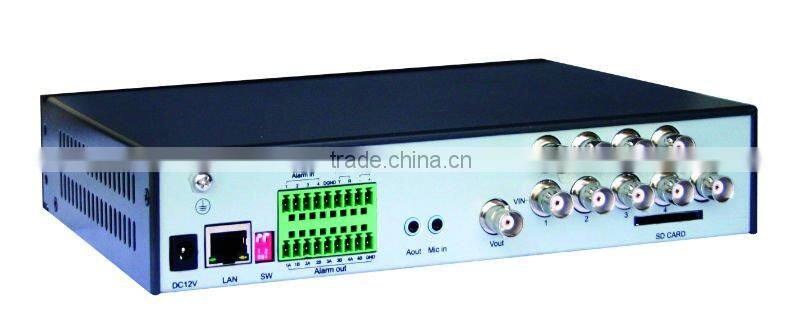

H.264 digital network video server encoder
Product introduction
ST83 series network video & audio server is H.264/MJPEG arithmetic and G.722 audio compression, which perform higher definition and fluency. It supports High definition:1080i or 720p, D1: 704×576,Half D1: 704×288, CIF: 352×288. And it is bidirectional talkback, dual stream. The full interface including 2CHA SATA hard disk interface, USB interface, SD card interface, WIFI interface. No PC is required since the built-in Web server has its own IP address. And it is easy to manage, configure and monitor through Internet Explore.
Product Type: Professional Distributed Digital Surveillance equipment
Video Decoding Format:H.264
Audio Compression Standard: G.722
Chipset:HI 3511
Operating system:Linux
Function introduction
Support PAL and NTSC format
Support 720P, SVGA, XGA, D1, Half D1, CIF format (including 720P, SVGA, XGA high-definition exclusive)
Support high-definition, D1, HALF-D1 and CIF resolution
Support H.264 Video Compression
Support G.722 audio Compression
Support fully transparent RS232 and RS485 interfaces
Frame Rate adjust range is 128Kbps~8Mbps
Video Stream Bandwidth Usage Average less than 200 milliseconds(LAN)
Built-in Web Server, it fully supports IE monitoring, configuration and updating
Support dynamic domain name(DDNS), LAN, WAN
Bidirectional Voice Talkback
Support dual stream for local recording and network transmission
pre-recorded 5 seconds of alarm’ file, and support Upload Alarm file
Capture 704*576 resolution base on JPEG format
After network disconnection automatically connect
Support automatic restart when anomaly
Feature-rich, support 2 channels SATA Hard disk, or USB, SD, WIFI
