Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v

Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v thumbnail-1
Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v thumbnail-2
Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v thumbnail-3
Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v photo-1
Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v photo-2
Alseye 4010-1 Axial Series(40x40x10mm) dc Axial Case Fan 24v photo-3
US$ 0.7 - 1.9 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Other, case, server
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Alseye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK or Shezhen Shekou/Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Mounting Other, case, server
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name ALSEYE
Model Number 4010-1 Axial Series(40x40x10mm)
Voltage 12V
Air Volume 20CFM-420CFM
Speed 2000-3000RPM
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available

  Item specifics

  Blade Material:Plastic
  Type:Axial Flow Fan
  Brand Name:ALSEYE
  Voltage:12V
  Electric Current Type:DC
  Model Number:4010-1 Axial Series
  Certification:CE FCC ROSH
  Mounting:AC DC Fan
  Dimension:40*40*10mm
  Fan Speed:6000RPM
  Bearing Type:Hydraulic
  Current:0.22A

  Product Description

  Demensions:40x40x10mm
  Bearing Type:Sleeve,Ball Bearing
  Function Type:FG/RD Signal,PWM pulse
  Protection:Auto Restart Protection or General Options
  Red Wire:Positive(+)
  Black Wire:Negative(-)
  Yellow Wire:Signal output
  Lead Wire:UL 1007# 28AWG or Equivalent
Alseye 4010-1 Axial Series(40x40x10mm) dc axial case fan 24v

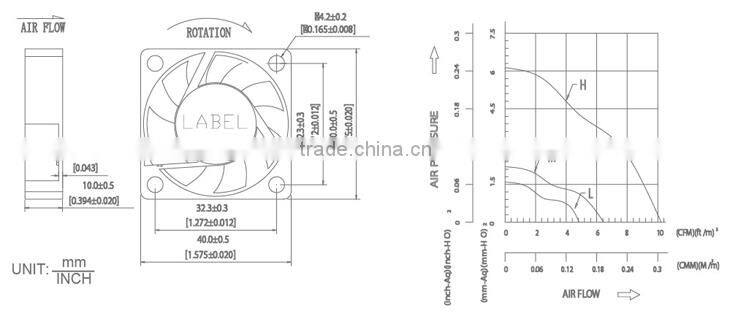

•    Dimensions or awing                                      •    Performance curves

Alseye 4010-1 Axial Series(40x40x10mm) dc axial case fan 24v
•    Specifications


MODEL NO. RATING
VOLTAGE
V		 RATED
CURRENT
A		 POWER
W		 SPEED
RPM		 AIR FLOW STATIC
PRESSURE		 NOISE
LEVEL
dBA
CMM CFM MMH2O INH2O
4010S(B/A)VL-N(P/M)5 5 0.2 1.00 3000 0.104 3.66 0.87 0.034 14.8
5 0.2 1.00 4000 0.137 4.85 1.56 0.061 20.7
4010S(B/A)VM-N(P/M)5 5 0.35 1.75 5000 0.184 6.49 2.31 0.091 23.8
5 0.35 1.75 6000 0.217 7.65 3.43 0.135 28.0
4010S(B/A)VH-N(P/M)5 5 0.45 2.25 7000 0.249 8.80 4.65 0.183 33.8
4010S(B/A)VL-N(P/M)1 12 0.13 1.56 3000 0.104 3.66 0.87 0.034 14.8
12 0.13 1.56 4000 0.137 4.85 1.56 0.061 20.7
4010S(B/A)VM-N(P/M)1 12 0.22 2.64 5000 0.184 6.49 2.31 0.091 23.8
12 0.22 2.64 6000 0.217 7.65 3.43 0.135 28.0
4010S(B/A)VH-N(P/M)1 12 0.35 4.20 7000 0.249 8.80 4.65 0.183 33.8
12 0.35 4.20 8000 0.291 10.29 6.13 0.242 36.8
4010S(B/A)VM-N(P)2 24 0.15 3.60 5000 0.184 6.49 2.31 0.091 23.8
24 0.15 3.60 6000 0.217 7.65 3.43 0.135 28.0



1.All model could be customized on voltage or and other requirements to fit your need

2."S" is sleeve bearing,"B" is two ball bearing,"R" is long life bearing,"A" is "AHB"

3."N" is nomorl,"P" is Auto-Restart,"M" is "PWM"

4.Specifications subject to change without notice.
