LED Bulb Load Resistor 6Ohm 50Watt For Signal or Brake light with Dual Filament
Why choose car adapters and wiring from ADT? ADT
When it comes to LED and HID installation, sometimes we need not only the product, but also some special wiring/adapters in order to do the job right. An example would be for any car installing LED turn signal light bulbs, you will need to add load resistors or LED flasher relay. ForBMW E46 3 Series installing H7 HID bulbs, you will need a H7 HID bulb retainer. For Scion FR-S installing BRZ OEM fog lamps, you will need a H11/5202 conversion wires. Fortunately at ADT, we offer the most complete components required for our lights to properly work in most applications. Whether you need an adapter for your lights, a relay harness, a decoder, resistors, or an automatic switch to turn on your lights with the car engine, we have it available for your needs. Fixes for hyper-flashing, error, messages, flickering, and more have never been easier to solve and figure out thanks to our selection of quality parts.
What is the specification about LED Load Resistor? ADT

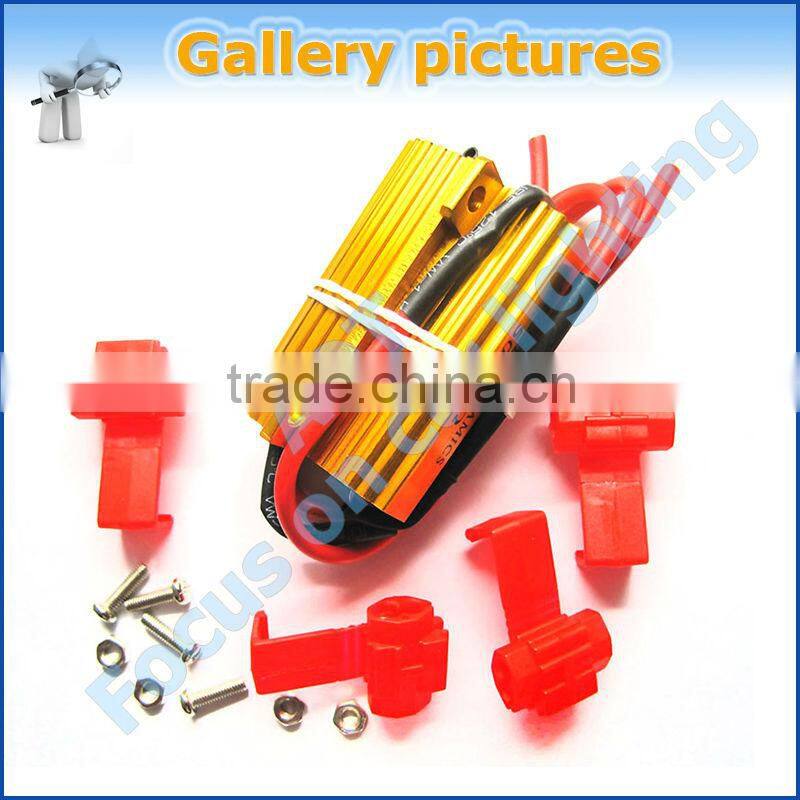

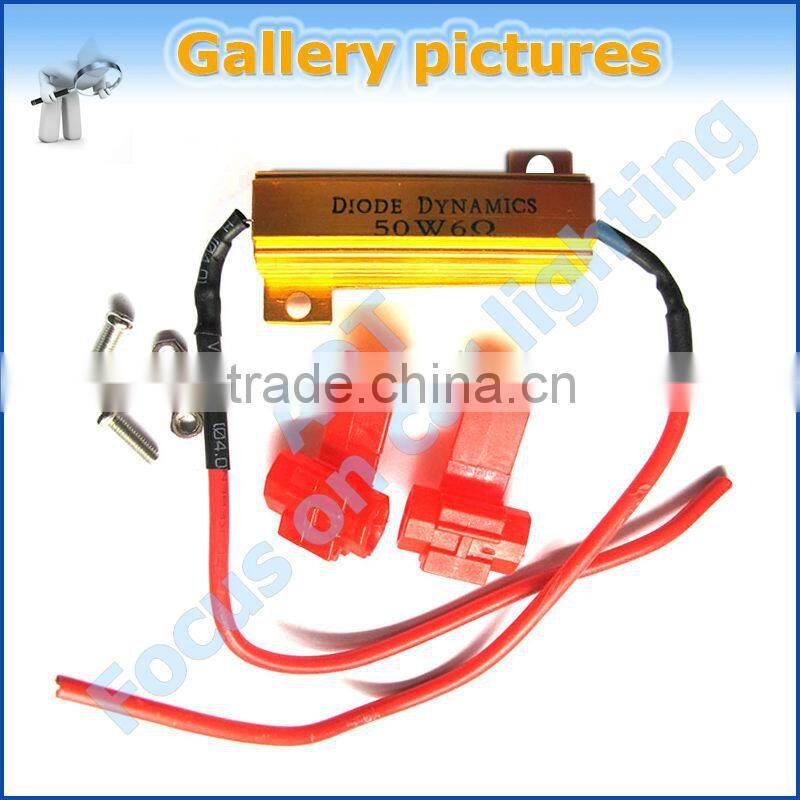

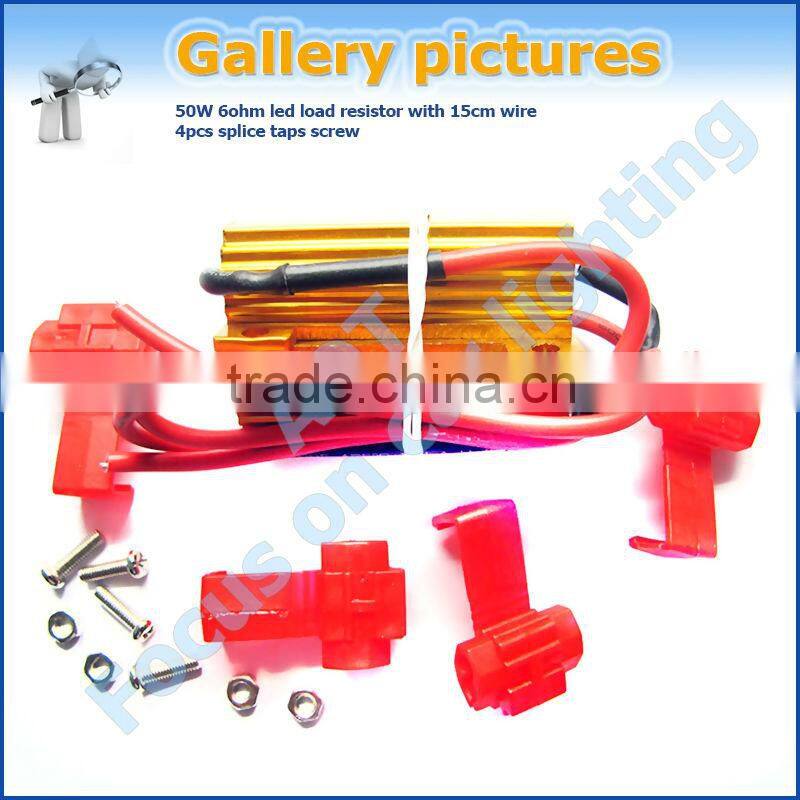

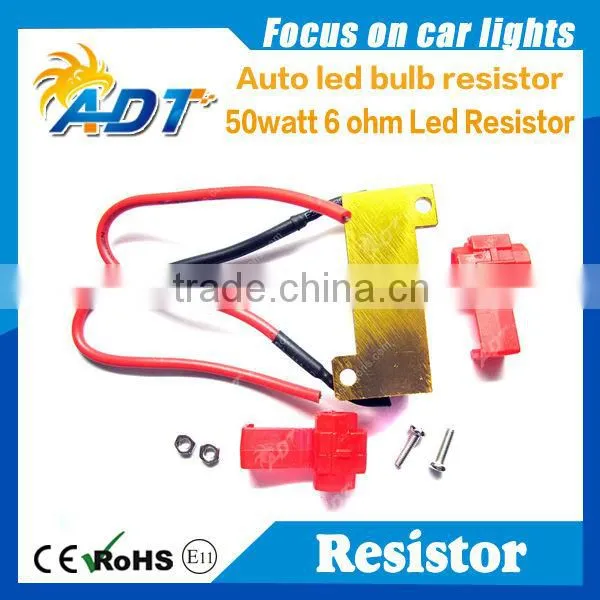

1. 50W,6ohm led load resistor with 15cm wire, 4pcs splice taps ,screw
2. Any wattage any ohm available
3. Suitable for replacing filament bulbs with LED bulbs
4. Prevenets hyper flashing of LED signal bulbs
What is the feature of LED Load Resistors from ADT? ADT

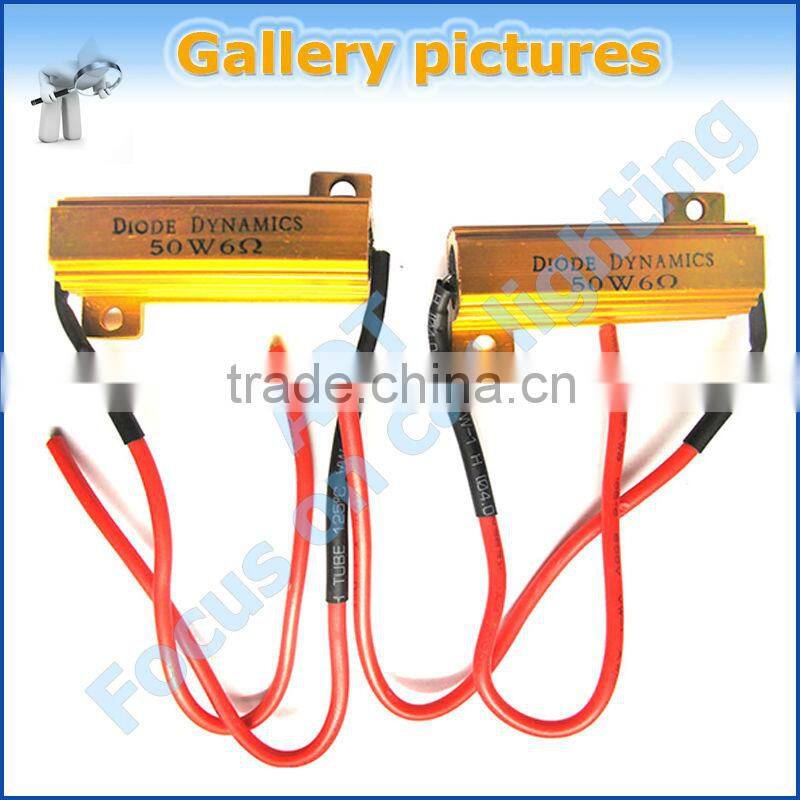

6Ohm 50W LED Load Resistors for LED Turn Signal Light Fix or LED License Plate Lights Error Fix.
These 6 Ohm, 50 Watt LED load resistors will work on any vehicle and can be connected across the turn signal bulbs or License Plate Lights to simulate the load of a regular filament bulb (2 Amp load). This will solve LED related turn signal lights or license plate light problems such as hyper flashing, no flashing or burnt out bulb indications. One LED resistor is required for each turn signal bulb or each license plate light bulb.

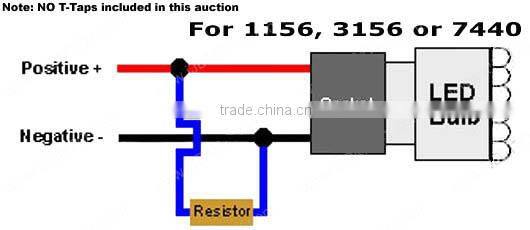

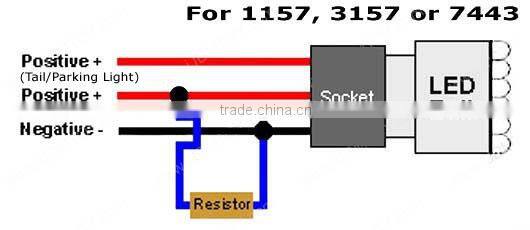

How to Connect the LED Load Resistor With Turn/Brake Bulb Light? ADT
Connect one wire to ground and the other wire to the turn/brake wire. You can use the T taps so you do not have to cut your car's wiring. One Load Resistor is required for each turn signal bulb.

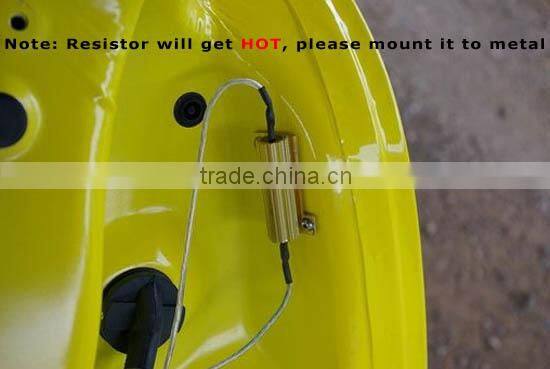

Note: LED Load Resistor will get hot, therefore, please don't mount the LED load resistors on plastic.
LED Load Resistor's Pictures
HID xenon kit, Car logo door light, Automotive LED bulb, LED Strip, For BMW LED angel eyes, CCFL Angel Eye, LED License Plate Lamp, LED Work Lamp, HID Work Lamp, LED Daytime Running Light, Parking Sensor, Plasma Halogen Lamp, Car Alarm, Motorcycle led headlight, LED Spot light, Chrome Bulbs, etc
1. Q: How many resistors do I need for a pair of LED turn signal light bulbs?
A: General speaking, each LED bulb requires one load resistor. For example, if you install both front and back turn signal lights with LED bulbs, therefore you will need 4 load resistors in total.
2. Q: Shall I use load resistors or LED flasher?
A: LED flasher only works for certain cars, but load resistors will work for all. Unless you know for sure the LED flasher works for your car, we still recommend you using load resistors.
3. Q: My front turn signal light bulbs function for both blinkers and parking lights, do I still need resistors?
A: Yes, you do, and please tap the resistor wires to the blinker + and the ground.
4. Q: Do I need load resistors for brake/tail lights?
A: General speaking, you do not need load resistors for brake lights or tail lights, unless you are experiencing the LED bulbs causing error message on dashboard.
5. Q: Where shall I mount the resistor?
A: Since the load resistors will generate a lot of heat, therefore, please mount the load resistor on the metal.
