Home > Products > DC Fan > Alseye CB2902 manufacture electric 9225 cooler cpu fan 92*92*25mm solar battery dc fan

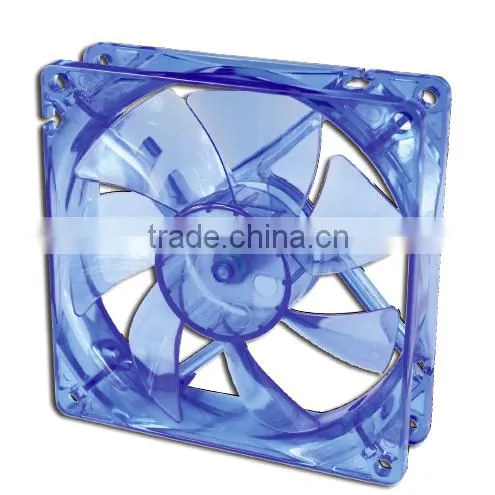

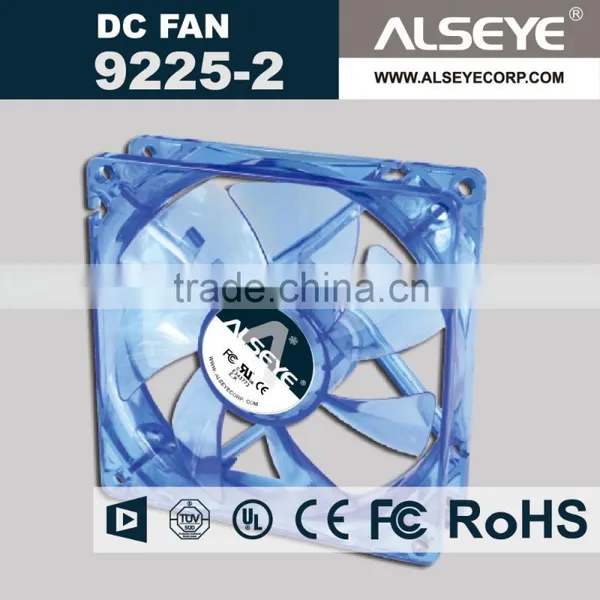

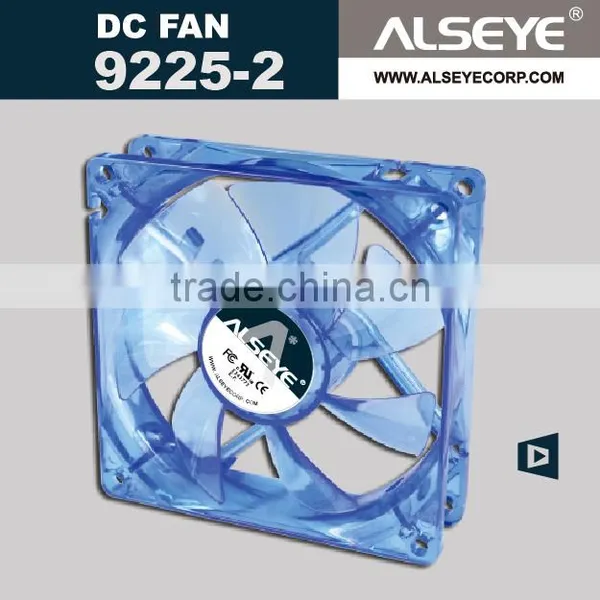

Alseye CB2902 manufacture electric 9225 cooler cpu fan 92*92*25mm solar battery dc fan
- 8000 Carton / Cartons per Month
- HK or Shezhen Shekou/Yantian
- T/T Credit Card
Product Details
Electric Current Type: | DC | Mounting: | Other, screw | Blade Material: | Plastic |
Place of Origin: | Guangdong, China | Brand Name: | ALSEYE | Model Number: | 9225-2 Axial Series(92x92x25mm) |
Voltage: | 5v,12V,24v,48v | Power: | 2.10-15.36w | Air Volume: | 33.37CFM-76.27CFM |
Speed: | 1800-4000RPM | Certification: | CE, ROHS, UL | After-sales Service Provided: | Overseas third-party support available |

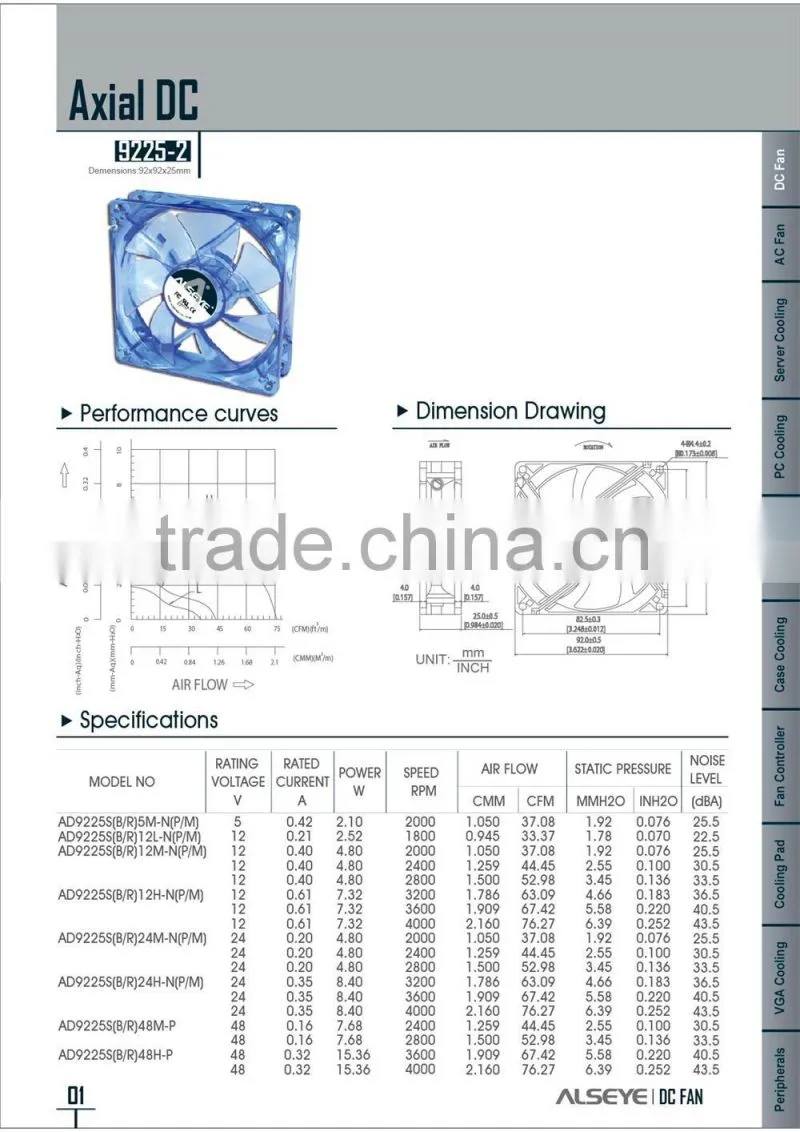

Product Description

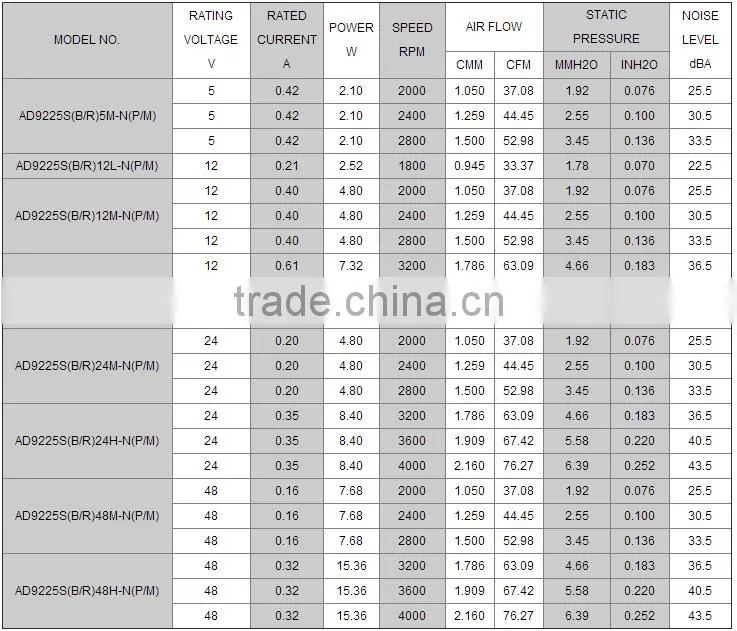

Fan Speed | 1800-4000RPM | Rated Current | 0.16-0.61A | Bearing Type | Sleeve, hydraulic ,Ball Bearing, | Electric Current Type | DC |
Protection | Auto Restart Protection/General Options | Certification | CE , UL, ROSH, TUV, FCC, ISO | Fan Type | Axial Flow Fan | Model Number | 9225-2 Axial Series |
Red Wire | Positive(+) | Black Wire | Signal output | Lead Wire | UL 1007# 24AWG or Equivalent | Manufacture | Yes |
1.All model could be customized on voltage or and other requirements to fit your need
2."S" is sleeve bearing,"B" is two ball bearing,"R" is long life bearing,"A" is "AHB"
3."N" is nomorl,"P" is Auto-Restart,"M" is "PWM"
4.Specifications subject to change without notice.
PACKAGING: Carton box or according to customer requirement.
Shipping:
1.Samples delivery time is 1-3 working days.
2.Fans can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
3.Fans could be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agent have discount with these express company.
4.Large Measure are shipped by sea or air as customer's requirements.
1. What is a DC Axial Fan?
A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.
2. How to choose a DC fan?
To choose a DC fan, you should consider the points below
*fan size(mm):
*fan speed(rpm):
*fan airflow(cfm):
*fan noise level(dBA):
*fan start voltage(v):
*fan current(A):
*fan connector:
3. What is a Bearing?
Fan bearing includes Sleeve Bearing, Hydraulic Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000 hours, hydraulic bearing fan is 40000 hours , while ball bearing is 55000hours or more.
4.What is the divery time?
Sample lead time:2-5 days
Mass production Delivery lead time: 1 -3 weeks
Delivery Ways: DHL, UPS Door to Door service, By Air, By Sea, etc.
5. What can I do if we can not find the suitable fan model in the fan list?
Please feel free to contact us for customized fans.
* Such as: moisture roof, water proof, turbocharger, soft start, Reversible, temperature control, PWM speed control, the RD alarm and the FG signal etc.
IP 55: Protection of motor and PCB board against splashed water and humidity.
Speed signal: The fan uses a separate wire to output information about its speed, and thus about the speed of the rotor.
PWM control input: The speed of the fan can be changed via a pulse-widthmodulated signal. This signal is applied to a specially provided wire.
Dear,If you want to learn more information about this item ,Do not hesitate to send the message to me pls. I will reply you within 12 hours,show you more detail and give you better price. I am looking forward to your contact.
Phone: 86-159-7556-6061
Skype: live:466485481
Wechat: lianzhi329
Welcome to blowse our Company Website like below:
Contact Us
- Shenzhen Alseye Technology Co., Ltd.
- Contact nameALSEYE KING
- Phone86-755-23600230
- Addressfutian area Shenzhen,Guangdong
