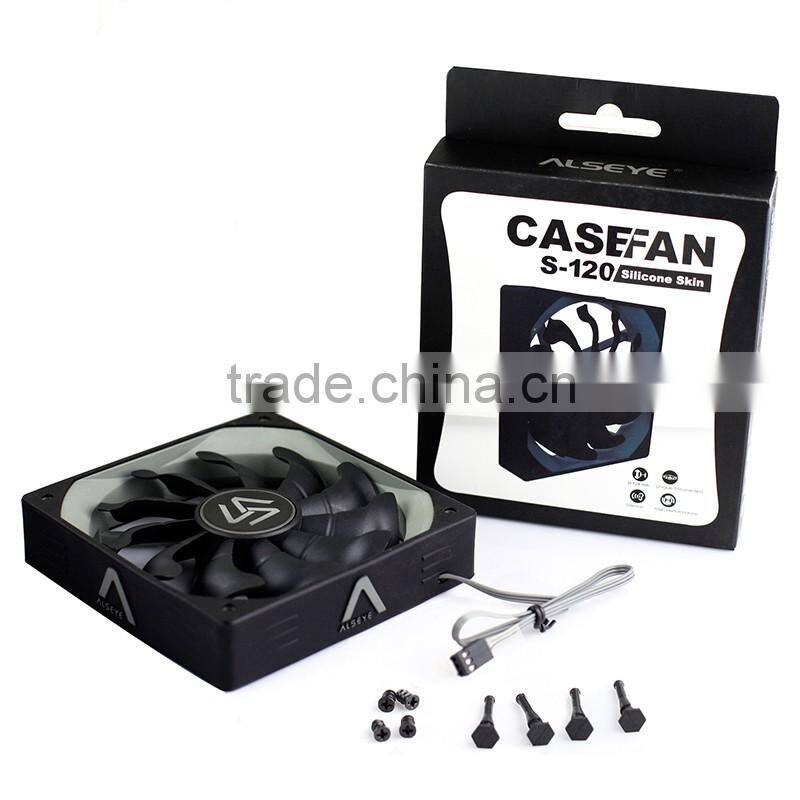

Alseye CA0125 Manufacture Waterproof 12v Fan 120mm Brushless Radiator Fan 12025 Quality Choice
- HK or Shezhen Shekou/Yantian
- T/T Money Gram Credit Card
You May Like
-
Alseye CA0126 Manufacture Vane Axial Fans 120*120*25mm Computer Cooling Fan
-
Alseye CA0127 Manufacture Electronics Cooling Fan 12025 dc Fan Motor 12v 2 Pin Cooler Fan for Computer PC CPU
-
Alseye CA0128 Manufacture Industrial Axial Fan 12025 DC Cooling Case Fan
-
Alseye CA0128 Manufacture dc Solar Fans Computer Case Fan 12CM Cpu Fan
-
Alseye CA0130 Manufacture 12 Volts dc Fan 120mm Over 40000H Life Expectance
-
Alseye CA0131 Manufacture dc Electric Fan Small 12v Fan Brushless Small Case Fan 12025 Quality Choice
Product Details
| Electric Current Type | DC | Mounting | Other, screw | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | ALSEYE | Model Number | S-120 Axial Series(120x120x25mm) | |
| Voltage | 5v,12v,24v,48v | Power | 2.04W | |
| Air Volume | 68.4CFM | Speed | 1200RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | Overseas third-party support available |
Product Description
Fan Speed | 1200RPM | Rated Current | 0.17A | Bearing Type | Sleeve,Ball Bearing | Electric Current Type | DC |

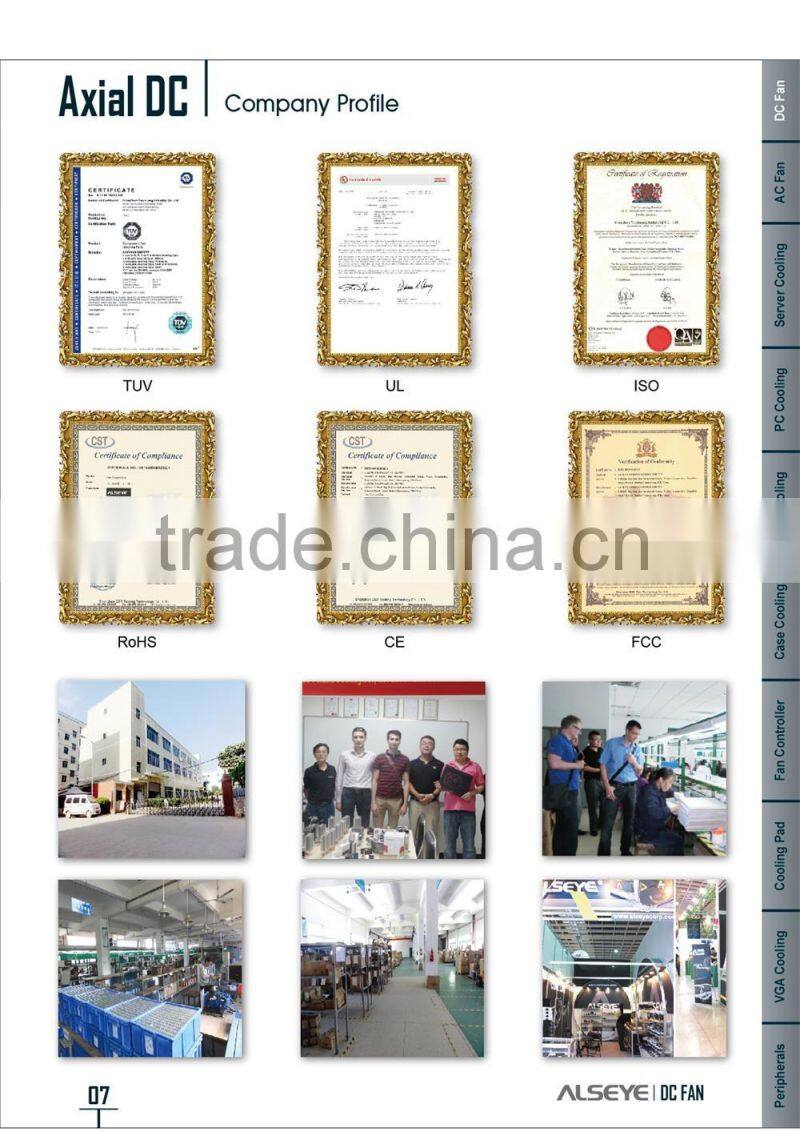

Protection | Auto Restart Protection/General Options | Certification | CE , UL, ROSH, TUV, FCC, ISO | Fan Type | Axial Flow Fan | Model Number | S-120 Axial Series |
Red Wire | Positive(+) | Black Wire | Signal output | Lead Wire | UL 1007# 24AWG or Equivalent | Manufacture | Yes |
1.All model could be customized on voltage or and other requirements to fit your need
2."S" is sleeve bearing,"B" is two ball bearing,"R" is long life bearing,"A" is "AHB"
3."N" is nomorl,"P" is Auto-Restart,"M" is "PWM"
4.Specifications subject to change without notice.



PACKAGING: Carton box or according to customer requirement.
Shipping:
1.Samples delivery time is 1-3 working days.
2.Fans can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
3.Fans could be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agent have discount with these express company.
4.Large Measure are shipped by sea or air as customer's requirements.

1. What is a DC Axial Fan?
A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.
2. How to choose a DC fan?
To choose a DC fan, you should consider the points below
*fan size(mm):
*fan speed(rpm):
*fan airflow(cfm):
*fan noise level(dBA):
*fan start voltage(v):
*fan current(A):
*fan connector:
3. What is a Bearing?
Fan bearing includes Sleeve Bearing, Hydraulic Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000 hours, hydraulic bearing fan is 40000 hours , while ball bearing is 55000hours or more.
4.What is the divery time?
Sample lead time:2-5 days
Mass production Delivery lead time: 1 -3 weeks
Delivery Ways: DHL, UPS Door to Door service, By Air, By Sea, etc.
5. What can I do if we can not find the suitable fan model in the fan list?
Please feel free to contact us for customized fans.

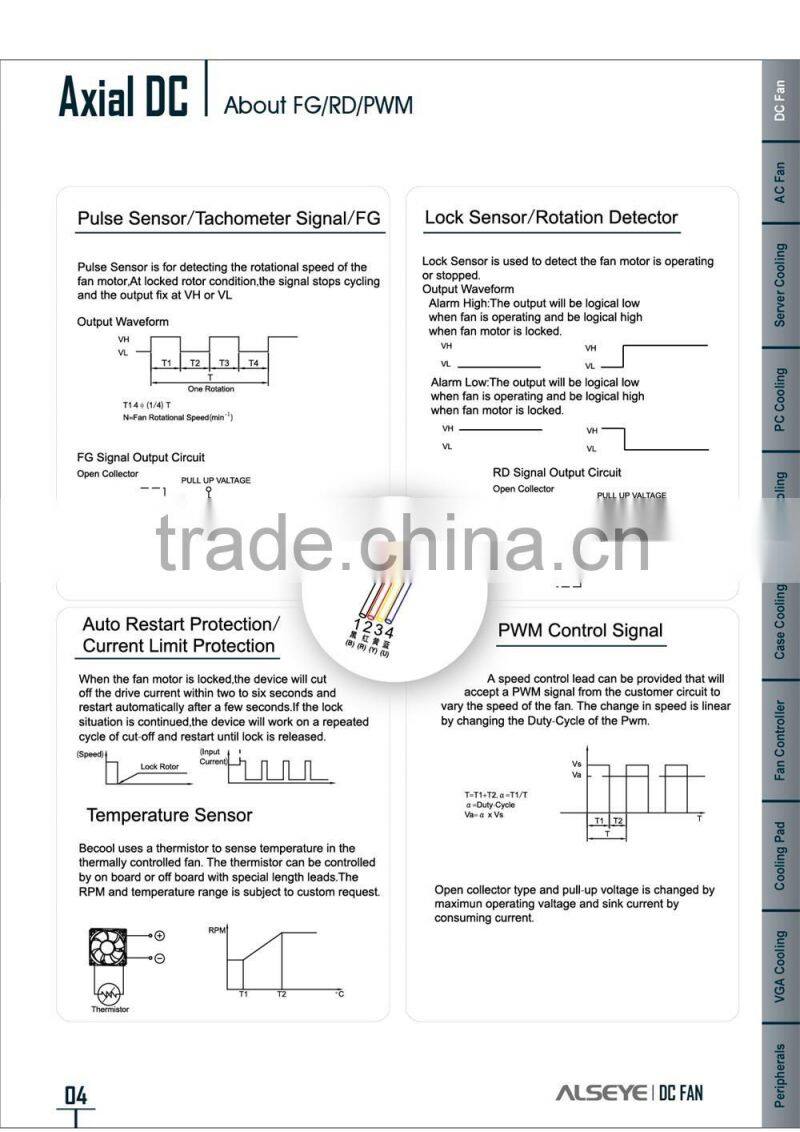

* Such as: moisture roof, water proof, turbocharger, soft start, Reversible, temperature control, PWM speed control, the RD alarm and the FG signal etc.
IP 55: Protection of motor and PCB board against splashed water and humidity.
Speed signal: The fan uses a separate wire to output information about its speed, and thus about the speed of the rotor.
PWM control input: The speed of the fan can be changed via a pulse-widthmodulated signal. This signal is applied to a specially provided wire.

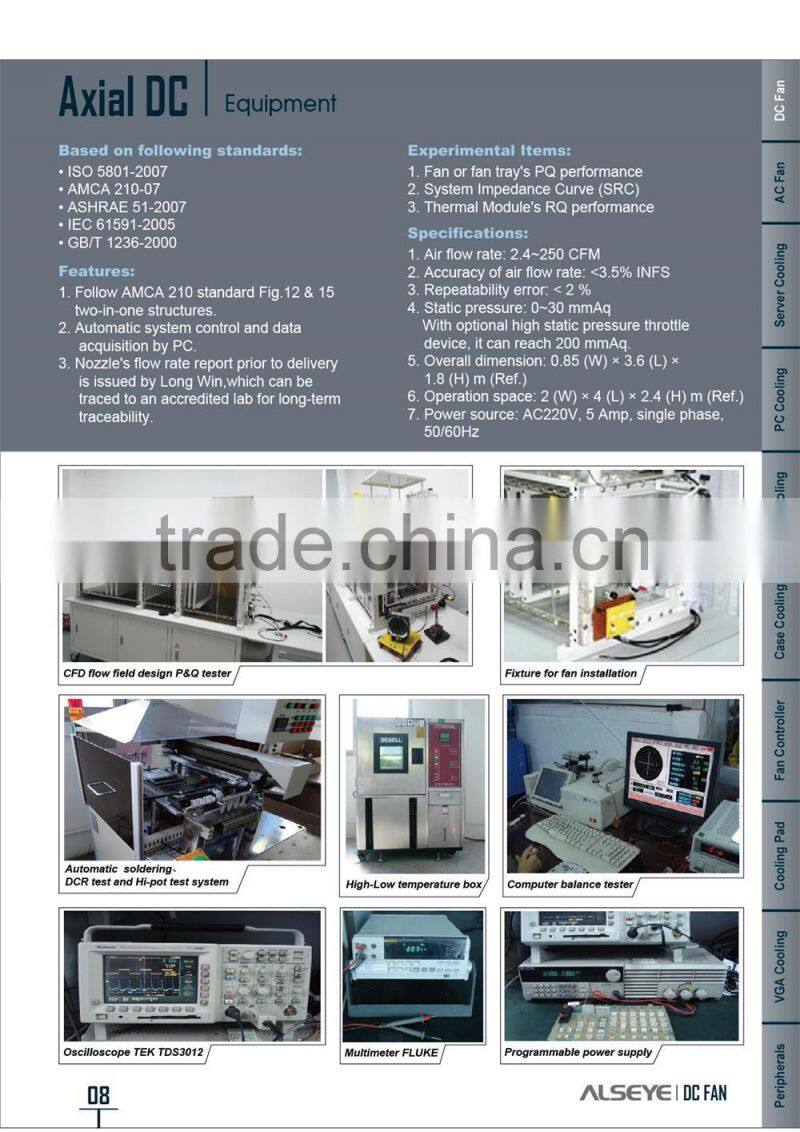

6. How do we carry out quality control?
Usually, there are two ways to monitor reliability during the manufacturing process. * Early Life Test This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at 50C+/-5C for 24 hours. *On-going Reliability Demonstration This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at 50C+/-5C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where necessary.
Dear,If you want to learn more information about this item ,Do not hesitate to send the message to me pls. I will reply you within 12 hours,show you more detail and give you better price. I am looking forward to your contact.
Phone: 86-159-7556-6061
Skype: live:466485481
Wechat: lianzhi329
Welcome to blowse our Company Website like below:
