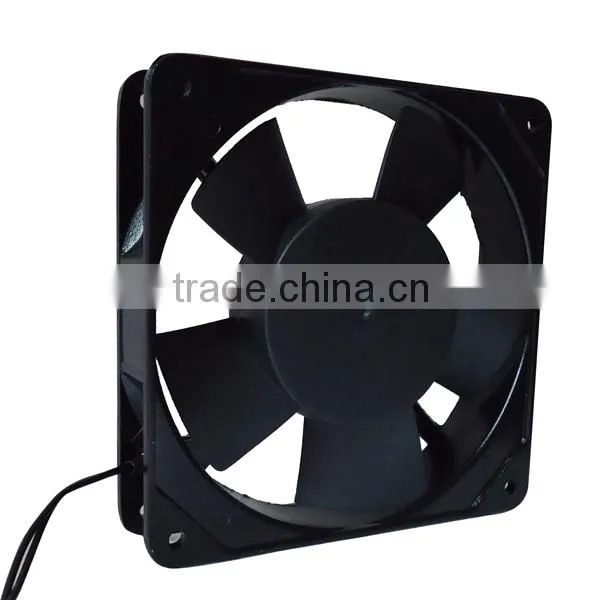

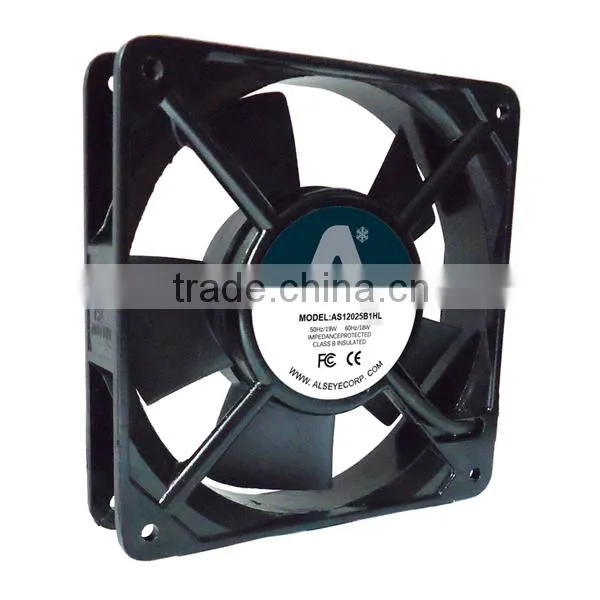

Alseye H12025 cooling sink fans
USD $1 - $3
/ Piece
2000 Pieces(Min.Order)
- 8000 Carton / Cartons per Month
- HK or Shezhen Shekou/Yantian
You May Like
Product Details
Electric Current Type: | AC | Mounting: | Other, case | Blade Material: | Plastic |
Place of Origin: | Guangdong, China | Brand Name: | ALSEYE | Model Number: | H12025 |
Voltage: | 12V | Air Volume: | 20CFM-420CFM | Speed: | 2000-3000RPM |
Certification: | CE, ROHS | After-sales Service Provided: | Overseas third-party support available |
Product Description

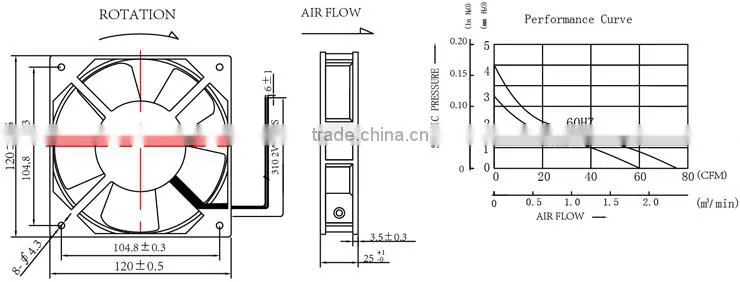

• Dimensions or awing • Performance curves
• Specifications
Model No. | Bearing Type | Voltage (V) | Input Power (W) | Frequency (Hz) | Current (A) | Speed (RPM) | Air Quantity (m³/h) | Static Pressure (mmAq) | Noise Level dB(A) |
H12025B1HL | B | 110/120 | 19/18 | 50/60 | 0.19/0.18 | 2000/2200 | 66/78 | 3.56/4.06 | 38/40 |
H12025B2HL | B | 220/240 | 19/18 | 50/60 | 0.09/0.09 | 2000/2200 | 66/78 | 3.56/4.06 | 38/40 |
H12025S1HL | S | 220/240 | 19/18 | 50/60 | 0.19/0.18 | 2000/2200 | 66/78 | 3.56/4.06 | 38/40 |
H12025S2HL | S | 110/120 | 19/18 | 50/60 | 0.09/0.09 | 2000/2200 | 66/78 | 3.56/4.06 | 38/40 |
1.All model could be customized on voltage or and other requirements to fit your need
2."S" is sleeve bearing,"B" is two ball bearing,"R" is long life bearing,"A" is "AHB"
3."N" is nomorl,"P" is Auto-Restart,"M" is "PWM"
4.Specifications subject to change without notice.
