5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A) Quality Choice

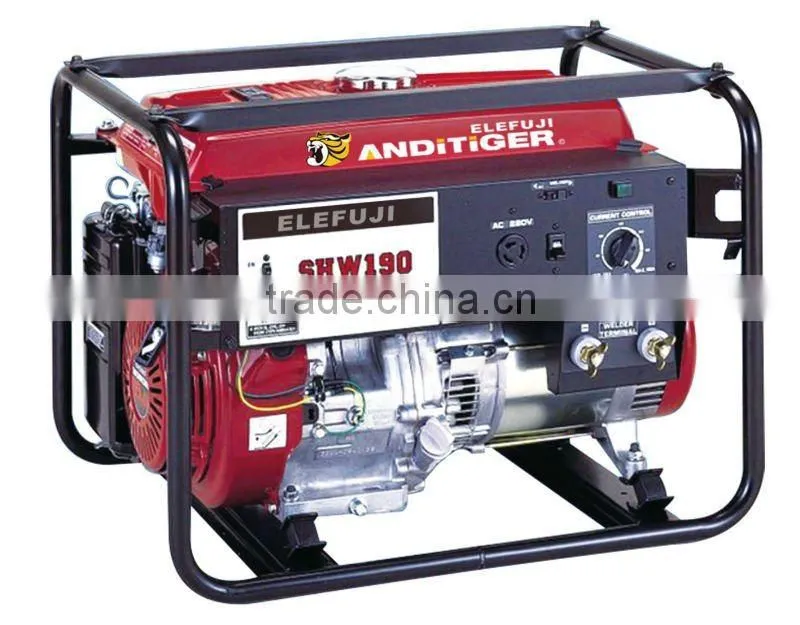

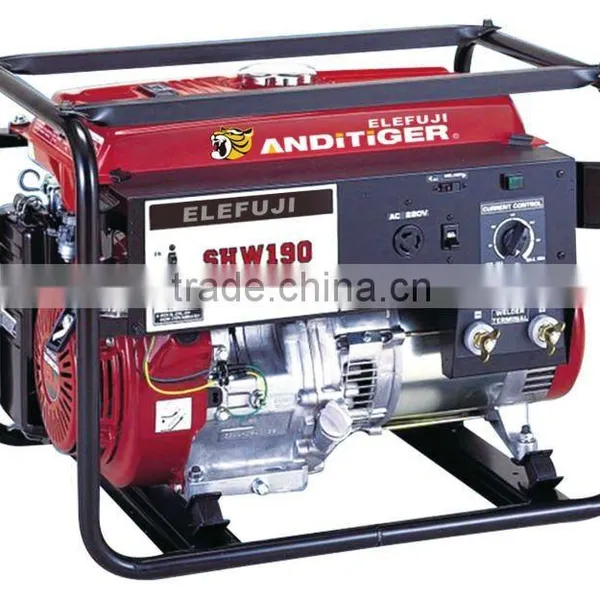

5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A) Quality Choice photo-1
US$ 450 - 550 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ANDITIGER,ANDI,ELEFUJI,ASTRA KOREA,ELEMAX
Model Number:
SHW190/210/300-A
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name ANDITIGER,ANDI,ELEFUJI,ASTRA KOREA,ELEMAX
Model Number SHW190/210/300-A
Output Type AC Single Phase
Speed 3600
Frequency 50/60
Rated Power 5.0KW
Rated Voltage 220V
Rated Current 9A

Specifications

5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)
One year's warranty

5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)

Welding Generator



• ANDI-190 welding generator is an intermediate frequency (720HZ)welding machine  with up to 190A current output.

• Powered by self-made reliable gasoline engine,it is good for field welding which needs high efficiency and quality,

 and it is number one silent welding generator



Technical Parameters



NAME ITEM SHW190 SHW210R SHW300E
Engine Engine Model GX390 GX670
Type 4-stroke,OHV,1cylinder 4stroke,OHV, 2cylinders
Displacement(cc) 389 670
Bore*Stroke(mm) 88*64 77*72
Cooling system Air cooling
Ignition system Transistorized magneto ignition
Start system Recoil/Electric Electric
Generator Rated voltage(V) 220(AC) 220(DC)
Rated frequency(HZ) 50/60 60
Rated current 9.1A(AC) 15A(AC)
Rated output 50HZ 5.0KVA(AC) 5.0KVA(AC) 5KW(DC)
Rated output 60HZ 5.0KVA(AC) 5.0KVA(AC)
Rated power factor cos φ=1.0
Phase Single
Type 2-pole,rotating type 24-pole,rotating type
DC Welder Rated Max .current(A) 180 200 300
Load voltage(V) 27.2 28 32
Current range(A) 50-180 60-190 60-300
Max.current duty cycle(%) 20 32 20
Applicable welding rod diameter(mm) 2.5-5.0 2.5-5.0 2.5-6.0
Rated Revolving Speed(r/min) 3600
No-load voltage(A) 70 52 82
Idle control Automatic
Rectifier type Six phase half wave rectifier Three phase full wave rectifier
Other Fuel tank capacity(L) 13 27.5 23
Length*Width*Height(mm) 690*510*520 690*535*540 953*617*622
Net weight(kg) 86 88 180



 5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)



Certificate



5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)

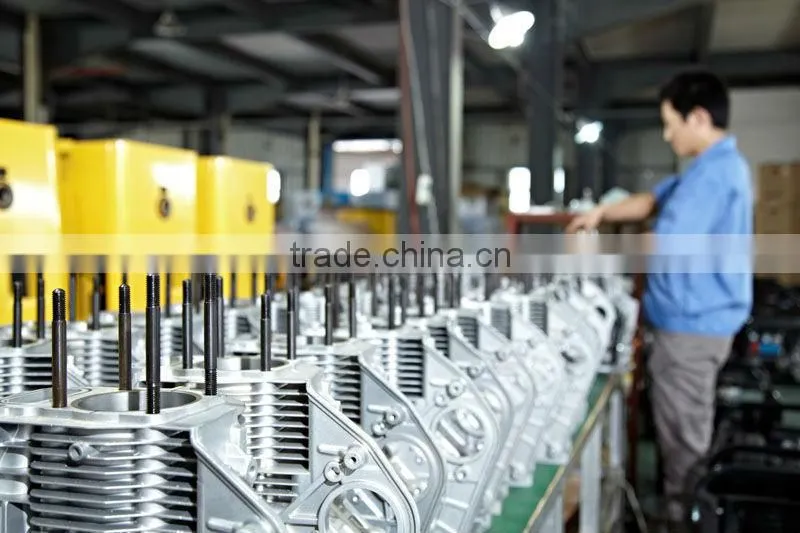

Production line

5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)



 5kw ELEMAX Silent Gasoline Welding Generator(SHW190/210/300-A)
