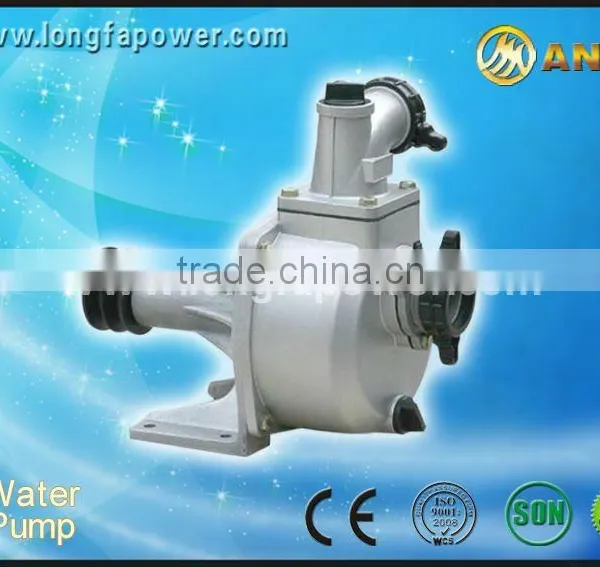

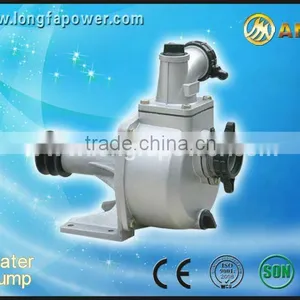

Help CenterSmall Electric Water Pump(SU50/80)
Related Products
Specifications
1. Portable Gasoline Water Pump of compact structure2. Alauminum alloy high pressure pump body
3.Maller and light in weight
Water pump
SUseries water pump is self-priming centrifugal pump. There is a valve at the nozzl of pump, so the question of leakage can be worked out before running.
This series is especially used for agriculture, it consists of pump body and drive motor. Both of them are independent, they are connected by the belt-drive wheel, through which could drive the impeller to run.
This series pump can also match with motor, diesel engine and gasoline engine.
It has the advantages of compact construction smooth running and easy maintenance.
The following are available: Single phase dual-voltage 110V/220V/50Hz; And single phase uni-voltage 220V; 240V; Or 127V, 110V, 115V
Techanical Parameters
Model |
SU-50 (2 Inch) |
SU-80 (3 Inch) |
SU-100 (4 Inch) |
Outlet size(mm) |
50 |
80 |
100 |
Inlet size(mm) |
50 |
80 |
100 |
Max. output(hp) |
5.5 |
6.0 |
13 |
Speed(rpm) |
3600 |
3600 |
3600 |
Displacement Q. max(m3/h) |
25 |
40 |
80 |
Lift H. max(m) |
36 |
36 |
25 |
Suction(m) |
7 |
7 |
7 |
Packing dimensions(mm) |
37× 22.5× 23 |
39.5× 25× 26.5 |
450× 390× 325 |
