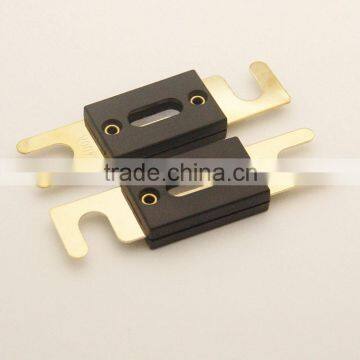

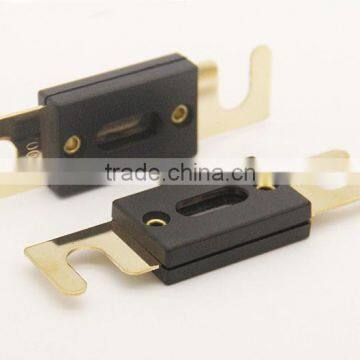

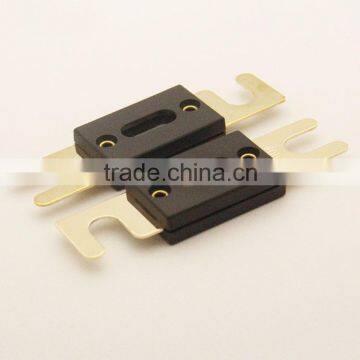

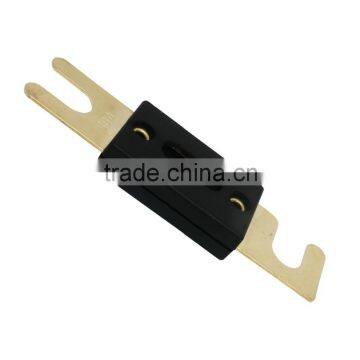

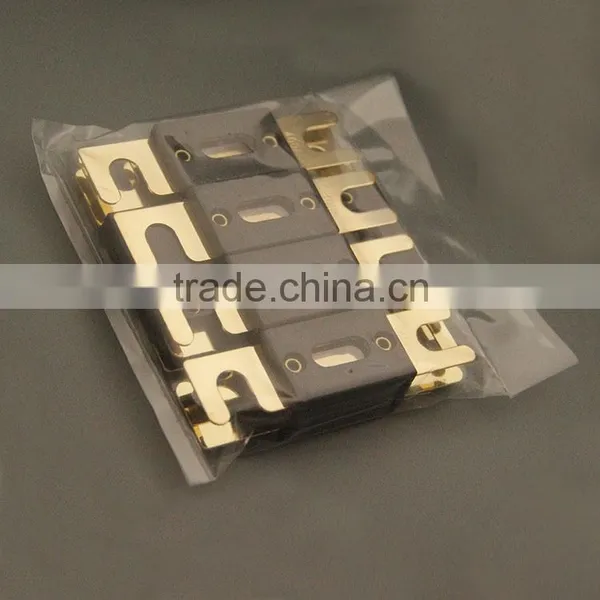

Bolt Down Automotive Fuse Link From Andu Electronic
US$ 0.5 - 0.6
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANDU
Model Number:
ANL
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Elm 327 Bluetooth Interface OBD II Elm327 Bluetooth Car/Auto Diagnostic Scanner Tool For Computers and Android Phones/TabletsUS$ 0.5 - 2MOQ: 100 Pieces -
Autel MaxiScan MS309 OBD 2 Scanner CAN BUS Code Reader Car Diagnostic ToolUS$ 0.5 - 2MOQ: 100 Pieces
-
Satellite Antenna 3G OBD 2 Cheap Gps Car TrackerUS$ 0.5 - 2MOQ: 100 Pieces
-
NitroOBD2 Interface More Power / More Torque Plug And Drive Nitro OBD For Benzine Cars OBD ii Chip Tuning Box High PerformenceUS$ 0.5 - 2MOQ: 100 Pieces
-
2015 New Product!!! Original Autel MaxiSys MS908 OBD 2 Bluetooth Scanner Wireless Touch Screen Display Universal OBD2 ScannerUS$ 0.5 - 2MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
ANDU
Model Number
ANL
Usage
Automotive
Breaking Capacity
Other
Safety Standards
Other, IEC, UL,RoHS
Auto fuse link
Specifications
Housing: Out of thermoplastic (UL 94-V0, heat-resistant) Visible melting element
Terminal: Copper alloy, gal. Sn 2 x M8 bolts, Distance 51 mm
Mounting Torque: 12.0 Nm +/- 1Nm
Breaking Capacity: 1000A, 63V DC
Complies with: ISO 8820-5 UL 248 Special Purpose Fuses
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) | |
| 100A - 250A | 300A-500A | |
| 75 | – / – | – / – |
| 100 | 4 h / – | 4 h / – |
| 135 | 120 s / 1,800 s | – / – |
| 200 | 1 s / 15 s | 1 s / 15 s |
| 350 | 0.300 s / 5 s | 0.500 s / 5 s |
| 600 | 0.100 s / 1 s | 0.100 s / 1 s |
Ratings
| TYPE | Rating Current(A) | Typ Voltage drop | Rating Voltage(V) |
| ANL-20 | 20A | ≤150mV | 32V/58V/63V |
| ANL-40 | 40A | ≤150mV | 32V/58V/63V |
| ANL-60 | 60A | ≤130mV | 32V/58V/63V |
| ANL-80 | 80A | ≤130mV | 32V/58V/63V |
| ANL-100 | 100A | ≤110mV | 32V/58V/63V |
| ANL-125 | 125A | ≤110mV | 32V/58V/63V |
| ANL-130 | 130A | ≤110mV | 32V/58V/63V |
| ANL-150 | 150A | ≤100mV | 32V/58V/63V |
| ANL-175 | 175A | ≤100mV | 32V/58V/63V |
| ANL-200 | 200A | ≤100mV | 32V/58V/63V |
| ANL-225 | 225A | ≤90mV | 32V/58V/63V |
| ANL-250 | 250A | ≤90mV | 32V/58V/63V |
| ANL-275 | 275A | ≤90mV | 32V/58V/63V |
| ANL-300 | 300A | ≤90mV | 32V/58V/63V |
| ANL-350 | 350A | ≤90mV | 32V/58V/63V |
| ANL-400 | 400A | ≤90mV | 32V/58V/63V |
| ANL-500 | 500A | ≤90mV | 32V/58V/63V |
Time-Current Curve Characteristic Curves
