Specifications
Most Popular Split Pressurized Solar Hot Heater1.High efficiency
2.Anti-freeze
3.Pretty competitive price
4.OEM service
Split Pressurized Solar Hot Heater
Features
1. Highly efficient absorber of high performance with daily average efficiency over 50%
2. Special high quality Insulated material to reducing the heat loss rate
3. High quality heat pipe for efficient heat transferring and long life span of the solar water heater
4. Exquisite workmanship to guarantee the decent appearance
5. Certificate: solar key mark,CE, ISO
6. Long life span and no extra cost after installation
7. Easy opearation
8. Cold resistance: -30 centigrade degree
9. Stagnation temperature : 300 centigrade degree
| Model | Solar Collector | Absorber Area(m2) | Capacity(L) |
Loading Qty(set) | |||||
| Model | NO. | 20'GP | 40'GP | 40'HQ | |||||
| CDSP-150-18 | CD-5818-18 | 1 | 2.3 | 150 | 38 | 76 | 88 | ||
| CDSP-200-24 | CD-5818-24 | 1 | 3.1 | 200 | 28 | 58 | 74 | ||
| CDSP-250-30 | CD-5818-30 | 1 | 3.8 | 250 | 25 | 51 | 55 | ||
| CDSP-300-36 | CD-5818-18 | 2 | 4.6 | 300 | 21 | 43 | 48 | ||
| CDSP-400-48 | CD-5818-24 | 2 | 6.2 | 400 | 17 | 37 | 41 | ||
| CDSP-500-60 | CD-5818-30 | 2 | 7.6 | 500 | 14 | 28 | 32 | ||
| Specification | |||||||||

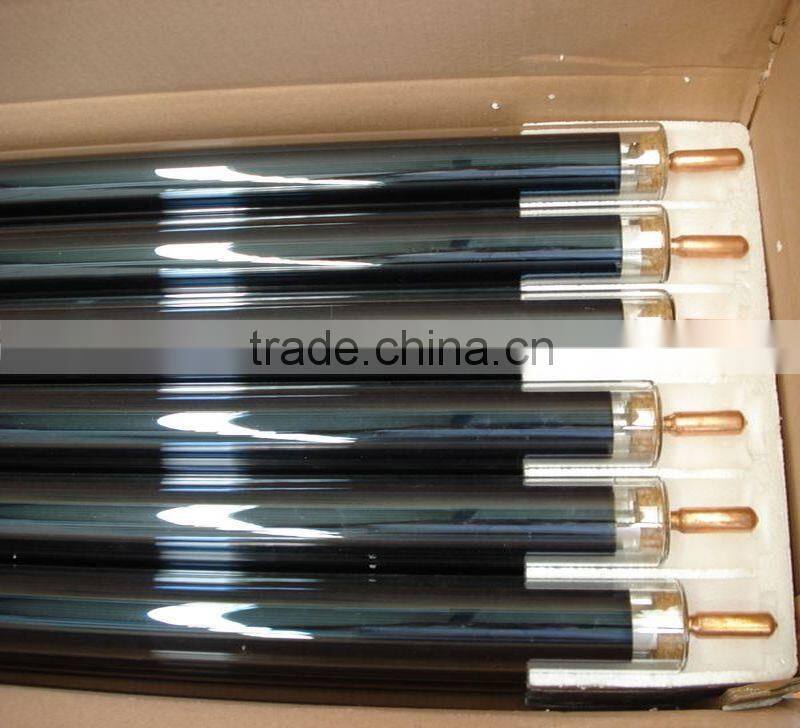

| Vacuum tube | 15~30 tubes of 58/1800mm heat pipe | ||||||||
| Inner tank | SUS304-2B with thickness 1.5mm-2.0mm | ||||||||
| Outer tank | Galvanized steel alloy with thickness 0.5mm | ||||||||
| inner copper header | 0.8 mm thick red copper |
||||||||
| Outer shell | 1.6 mm thick aluminum alloy | ||||||||
| Size of outer case | 100mm*112mm | ||||||||
| Bracket | 45 degree 1.8mm thick aluminum alloy | ||||||||
| Heat insulation layer | 35 mm thick polyurethane foam | ||||||||
| Application | split solar water heating systerm | ||||||||
| Absorption rate | 93%~96% | ||||||||
| Certificate | CE, ISO | ||||||||
| Deliver time | within 7 days | ||||||||
| Product contains 3 parts | Pressurized water tank | ||||||||
| Heat pipe solar collector | |||||||||
| Working Station(Including controller, circulation pump, flowing meter, pressure gauge,safety valve, expansion vessel) | |||||||||
Advantages
1. The insulation layers use the up-to-date technology and has a good effect of temperature preservation which allows the water to stay warm for about 72 hours
2. Start up quickly heat pipe transfer the heat energy into the storage tank in one condition
3. With stand pressure of 0.2Mpa,can be connected directly with city water pipe
4. Highly efficient insulation with polyurethane foam
5. Can be used all year round even in the cold weather
6. Automatically controlled
7. Highly heat absorber and less in heat losing
8. Popular market: USA, Europe, Russia, Canada, Mexico, Australia, New Zealand, and ect.
