Industrial Split Solar Water Heater

Specifications

Industrial Split Solar Water Heater
1.High efficiency
2.Environmental friendly
3.Strongly Anti-corrosion
4.Reasonable price

                Industrial Split Solar Water Heater
Features:

1)  Pipeline is made of all red copper and conducted by heat transfer medium liquid

2) Water isn't flow in the vacuum tubes and is operated when confined

3) Aluminum alloy mould material of high strength with airflow design

4) It is furnished in good style; It is furnished in good style

5) Tank is equipped with electric water heater setting, automatic temperature controller

6) With increased anode magnesium bar stick to prevent furring.

7) The insulating layer uses polyurethane bulk bubble

8) It successfully carries out installation of separation according to fabricating yard





Specifications

Model		CDCP011
Water tank		Inner tank: SUS-304B stainless steel ,1.2mm thickness, Φ360mm
		Outer tank: galvanized steel/stainless steel,0.31mm thinckness, Φ470mm
		Insulation layer: polyurethane foam with 55mm thickness
		Heat preservation: 72 hours
		Capacity:150L~300L
Vacuum tube		Structure: all-glass double-tube co-axial structure
		Material: high borosilicate 3.3 glass
		Coating: Cu/SS-ALN(H)/SS-ALN(L)/ALN
		Sediment method: 3 target magnetron sputtering plating
		External pipe: Φ58mm, Internal pipe: Φ47mm, Length:1800mm, thickness:1.6mm
		Vacuum tightness: P≤5.0*10-3Pa
		Absorption Rate: 93%~96% (AM1.5)
		Emission Rate: 4%~6% (80°C±1.5°C)
Bracket		1.2mm thickness, Galvanized steel / as your request
		Angle: 45 degree
Color		Blue/Silver/Red/as your request
Warranty		3 years



Working Principle:

There is one copper coil which install inside the tank as the heat exchanger, once the water flow into the copper coil, the copper coil will absorb the heat to the water in the tank, then it will change to hot water.

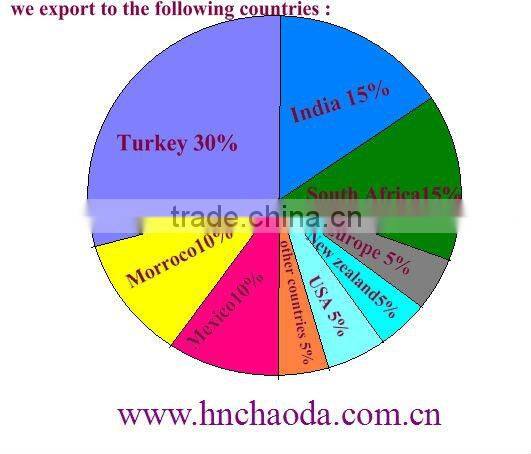

Markets:
