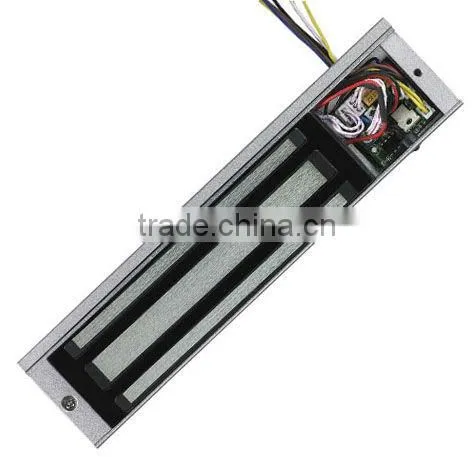

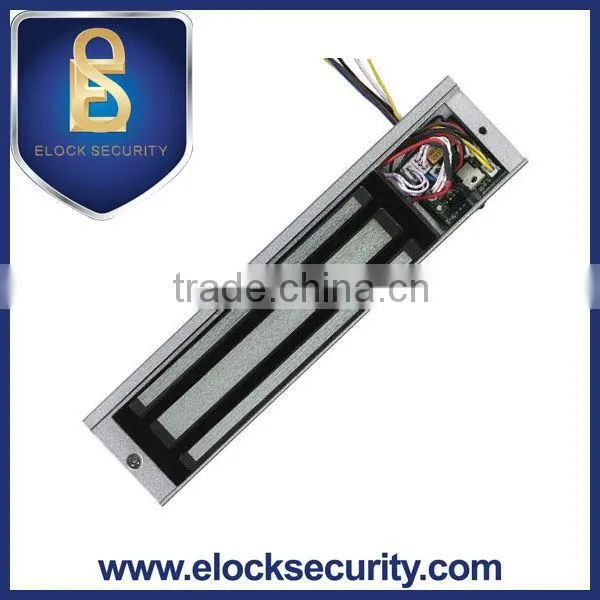

320KG(800LBS) Magnetic Lock with Feedback, 12V 24V
Features
1. Magnetic bond sensor monitor output
2. Door position status sensor output
3. Bi-color LED indicate lock/unlock status
4. Dual voltage 12 or 24VDC(selectable)
5. MOV provides spike and surge protection
6. Anti-Residual magnetism designed
7. Low current consumption
8. Reliable holding force
9. High strength material, anodized aluminum housing
10. Anti-residual magnetism designed
11. Durable and silence operation
12. CE Certificate by European Union
Specification
Model |
ES300GF(12/24VDC) |
Feature |
Fail-safe: Power to lock |
Lock Size |
240 L X 29 H X 56.5 D mm |
Armature Size |
158 L X 11 H X 43 D mm |
Holding Force |
320KG(800LBS) |
Feedback |
Door Status Output, NO/NC/COM |
Voltage |
DC12V/24V |
Current Draw |
12V/500mA 24V/250mA |
Material |
Finishes for shell: Anodized aluminum Finishes for magnet: Zinc Finishes for Armature: Zinc |
Certification |
CE, ROHS, CMA |
Advantage |
Low power consumption, high efficiency |
Application |
Metal doors, wooden doors, fireproof doors, glass door |
Weight |
Approx.: 2.5kg |
Packing
Carton Size: 38X30X18cm
Qty/Carton: 12pcs
N.W: 29KG
G.W: 30KG
Installation
Sample photo
Payment
If the total payment is less than 500USD, we usually accept Western Union or Paypal. |
For big amount we accept bank transfer. |
Shipment
Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to. |
Warranty
Warranty for two years if the damage is not caused by human. |
