320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer

320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer thumbnail-1
320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer thumbnail-2
320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer thumbnail-3
320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer photo-1

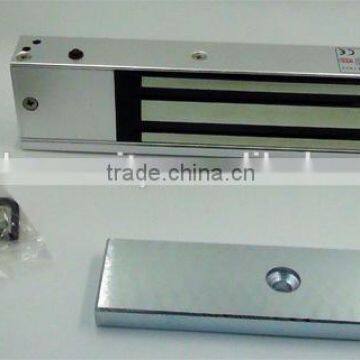

320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer photo-2
320KG(800LBS) Electromagnetic Door Lock With Feedback, Timer photo-3
US$ 10 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ELOCK SECURITY
Model Number:
ES300GFX
Contact Supplier Request Quote Chat Now
Zhongshan Elock Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ELOCK SECURITY
Model Number ES300GFX

320KG(800LBS) Electromagnetic Door Lock with Feedback, Timer





Features



1. With adjustable timer, 0~120s

2. Magnetic bond sensor monitor output

3. Door position status sensor output

4. Bi-color LED indicate lock/unlock status

5. Dual voltage 12 or 24VDC(selectable)

6. MOV provides spike and surge protection

7. Anti-Residual magnetism designed

8. Low current consumption

9. Reliable holding force

10. High strength material, anodized aluminum housing

11. Anti-residual magnetism designed

12. Durable and silence operation

13. CE Certificate by European Union



Specification



Model

ES300GFX

Feature

Fail-safe: Power to lock

Lock Size

240 L X 29 H X 56.5 D mm

Armature Size

158 L X 11 H X 43 D mm

Holding Force

320KG(800LBS)

Feedback

Door Status Output, NO/NC/COM

Time delay

0~120s

Voltage

DC12V

Current Draw

12V/500mA

Material

Finishes for shell: Anodized aluminum

Finishes for magnet: Zinc

Finishes for Armature: Zinc

Certification

CE, ROHS, CMA

Advantage

Low power consumption, high efficiency

Application

Metal doors, wooden doors, fireproof doors, glass door

Weight

Approx.: 2.5kg





Packing



Carton Size: 38X30X18cm

Qty/Carton: 12pcs

N.W: 29KG

G.W: 30KG



Installation

320KG(800LBS) Electromagnetic Door Lock with Feedback, Timer

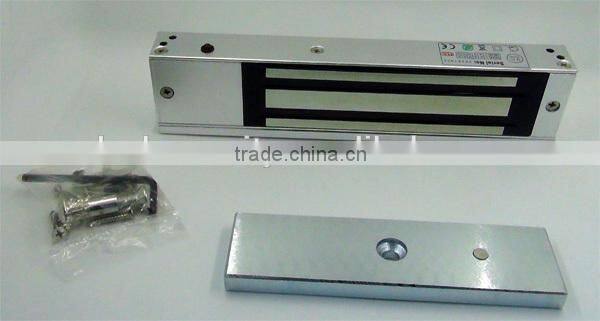

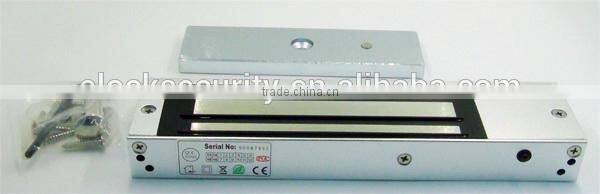

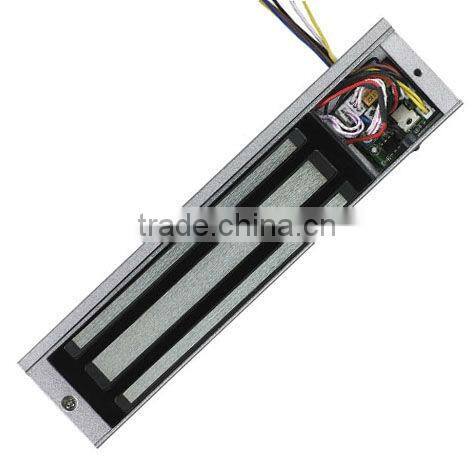

Sample photo

320KG(800LBS) Electromagnetic Door Lock with Feedback, Timer

320KG(800LBS) Electromagnetic Door Lock with Feedback, Timer

320KG(800LBS) Electromagnetic Door Lock with Feedback, Timer320KG(800LBS) Electromagnetic Door Lock with Feedback, Timer



Payment



If the total payment is less than 500USD, we usually accept Western Union or Paypal.

For big amount we accept bank transfer.



Shipment



Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to.



 Warranty



Warranty for two years if the damage is not caused by human.
