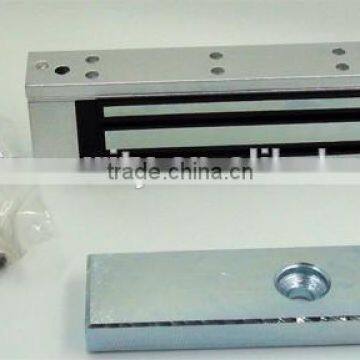

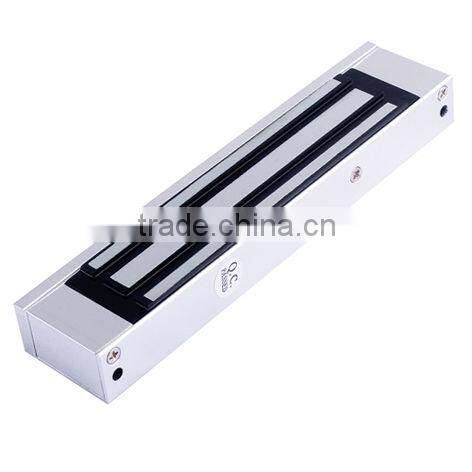

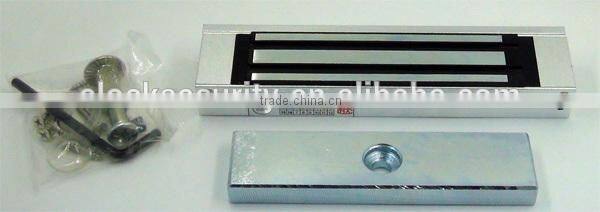

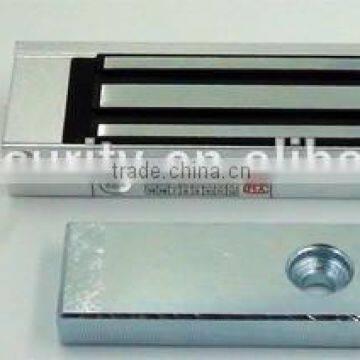

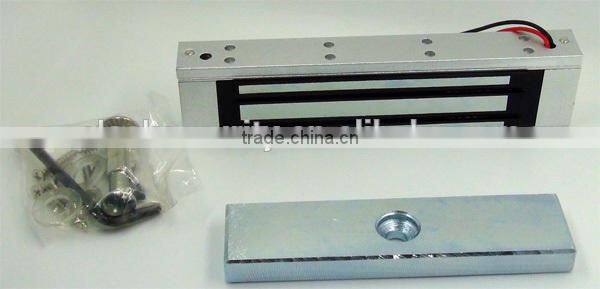

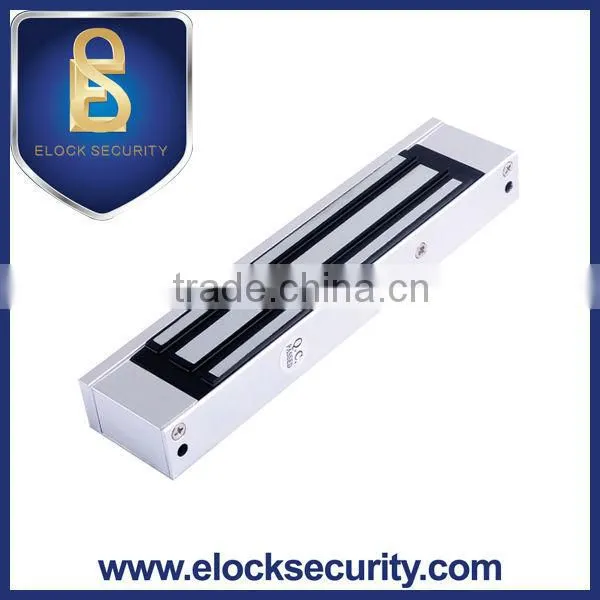

300lbs(180kg) Single Door EM Lock With Door Status Output

Name: 300lbs(180kg) Single Door EM Lock With Door Status Output
Brand: ELOCK SECURITY
SKU: 124274351
Availability: InStock

US$ 10 - 50 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ELOCK SECURITY

Model Number:

ES180GF

Zhongshan Elock Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ELOCK SECURITY

Model Number ES180GF

300lbs(180kg) Single Door EM Lock with Door Status Output

Features

1. With door status output, NO, NC, COM

2. Low current consumption

3. Reliable holding force

4. High strength material, anodized aluminum housing

5. Anti-residual magnetism designed

6. Durable and silence operation

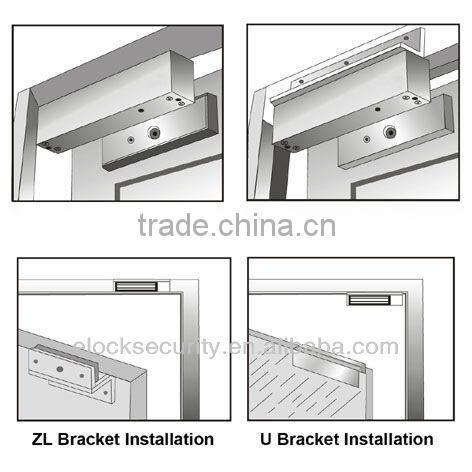

7. Full range of optional brackets

8. Durable and silence operation

9. CE Certificate by European Union

Specification

Model	ES180GF
Feature	Fail-safe: Power to lock
Lock Size	170 L X 22 H X 39 D (mm)
Armature Size	130 L X 30 H X 9 D (mm)
Holding Force	180KG(300LBS)
Door status output	NO, NC, COM
Voltage	DC12V
Current Draw	12V/300mA
Material	Finishes for shell: Anodized aluminum Finishes for magnet: Zinc Finishes for Armature: Zinc
Certification	CE, ROHS, CMA
Advantage	Low power consumption, high efficiency
Application	Metal doors, wooden door, fire door, glass door
Weight	Approx.: 1kg
