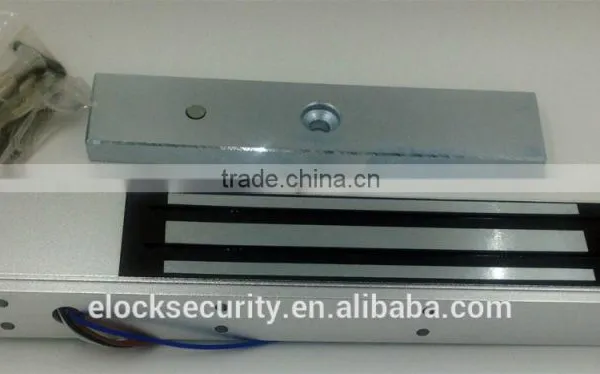

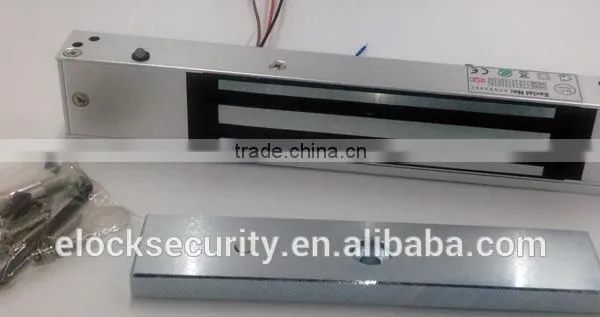

600LBS(280KG) Electromagnetic Lock With Feedback, 12V 24V

Name: 600LBS(280KG) Electromagnetic Lock With Feedback, 12V 24V
Brand: ELOCK SECURITY
SKU: 124274383
Availability: InStock

US$ 10 - 50 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ELOCK SECURITY

Model Number:

ES230GF 12/24VDC

Zhongshan Elock Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ELOCK SECURITY

Model Number ES230GF 12/24VDC

600LBS(280KG) Electromagnetic Lock with Feedback, 12V 24V

Features

1. Door status, lock status monitoring output

2. Dual voltage selectable (12VDC or 24VDC)

3. Low current consumption

4. Reliable holding force

5. High strength material, anodized aluminum housing

6. Anti-residual magnetism designed

7. Durable and silence operation

8. CE Certificate by European Union

Specification

Model	ES230GF 12/24VDC
Feature	Fail-safe: Power to lock
Lock Size	250 L X 27 H X 48 D (mm)
Armature Size	180 L X 38 H X 11 D (mm)
Holding Force	280KG(600LBS)
Feedback	Door Status Output, NO/NC/COM
Voltage	12/24VDC
Current Draw	12V/400mA, 24V/250mA
Material	Finishes for shell: Anodized aluminum Finishes for magnet: Zinc Finishes for Armature: Zinc
Certification	CE, ROHS, CMA
Advantage	Low power consumption, high efficiency
Application	Metal doors, wooden doors, fireproof doors, glass door
Weight	Approx.: 2kg
