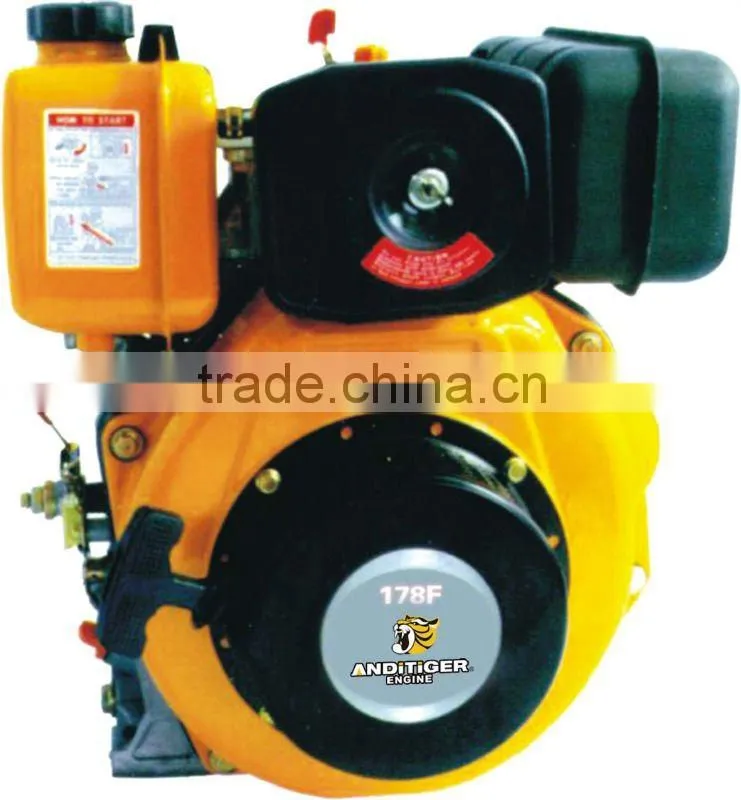

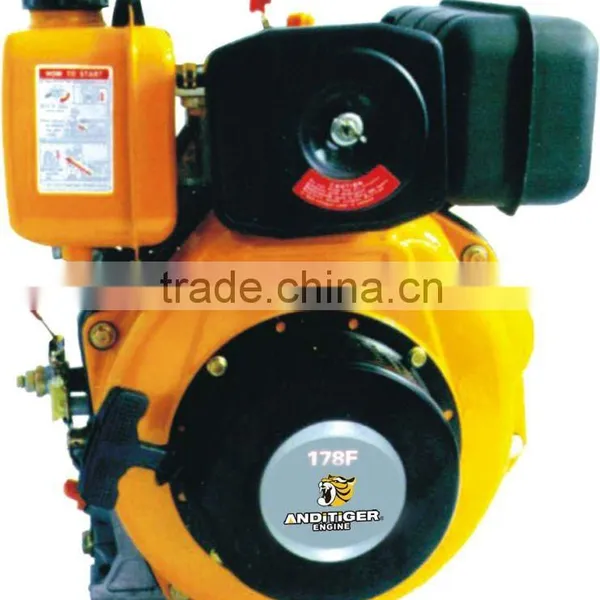

Diesel Engine(AD178F/FA)
Engine
•With Strict Testing from Spare Parts to whole Machine,ANDITIGER have superior durability with high performance -price ratio,it is
number one Silent engine
•Large fuel tank capacity ,four hours of continuous operation
•High quality power output
•Qualified mechanical seal device
•Compact in structure and convenient for carry
•Easy starting by recoil or E-start(key start with battery)
•Special balancer shaft inside reduces the vibration to the minimum level
ENGINE (DIESEL ENGINE)Specification
| NAME | ITEM | AD170F | AD178F/FA | AD186F/FA | |||
| Diesel Engine | Engine Type | Air-cooled,4-stroke,OHV;single cylinder | |||||
| Combustion system | Direct injection | ||||||
| Bore Stroke(mm) | 70×55 | 78×62/78×64 | 86×70/86×72 | ||||
| Displacement(cc) | 211 | 296/305 | 406/418 | ||||
| Engine speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Max. Output(HP) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 | |
| Continuous Output(HP) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 | |
| Power Take Off | Crankshaft or Camshaft(Camshaft PTO rpm is 1/2) | ||||||
| Start system | Recoil/Electric(optional) | ||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | ||||
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 | ||||
| Dimensions(LWH)(mm) | 420×360×460 | 440×370×480 | 480×420×530 | ||||
| Net Weight(recoil)(kg) | 27 | 33 | 48 | ||||
| Net Weight(electric)(kg) | 32 | 38 | 53 | ||||
| Fuel type | 0#,-10#,-20# | ||||||
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 | ||||||
| Option | Oil bath air cleaner | ||||||
ABOUT US
Taizhou Longfa Machinery Co., Ltd. Established in 2003, which is specialized in producing
series of gasoline generators, diesel generarors, gasoline engine, water pump and parts of
generators. Having an abounding experiences in this line, we are dedicated to research and
develop our products.
Our products are mainly export to European Union, Middle East, Africa, South & East Asian
countries and regions.
Taizhou Longfa Machinery Co., Ltd. Established in 2003, which is specialized in producing
series of gasoline generators, diesel generarors, gasoline engine, water pump and parts of
generators. Having an abounding experiences in this line, we are dedicated to research and
develop our products.
Our products are mainly export to European Union, Middle East, Africa, South & East Asian
countries and regions.
