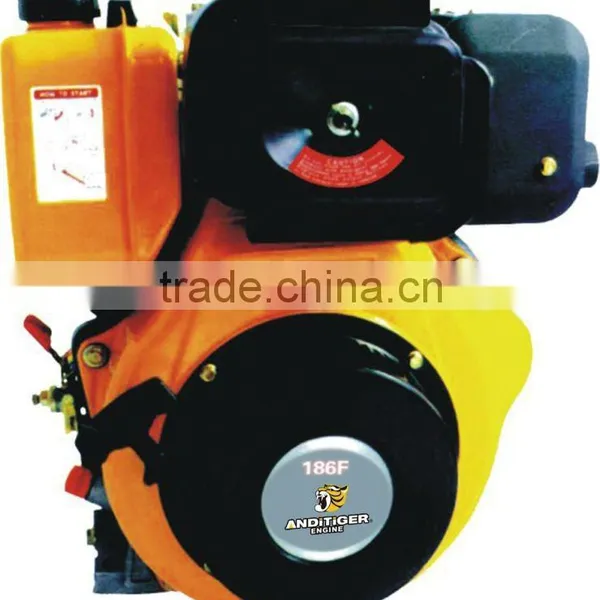

9 HP Small Diesel Engine With CE SONCAP

9 HP Small Diesel Engine With CE SONCAP thumbnail-1
9 HP Small Diesel Engine With CE SONCAP photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Other, Automobile&Boat
Fuel:
Diesel
Stroke:
4 Stroke
Contact Supplier Request Quote Chat Now
Taizhou Longfa Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Usage Other, Automobile&Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, Electric start/Kick start
Place of Origin Zhejiang, China
Brand Name ANDITIGER,ANDI ,ELEFUJI ,ELEMAX,ASTRA KOREA
Model Number AD186F/FA
Dimension(L*W*H) 480x420x530mm
Weight 53kg
Certification CE SONCAP
Warranty ONE YEAR
After-sales Service Provided Overseas service center available

Specifications

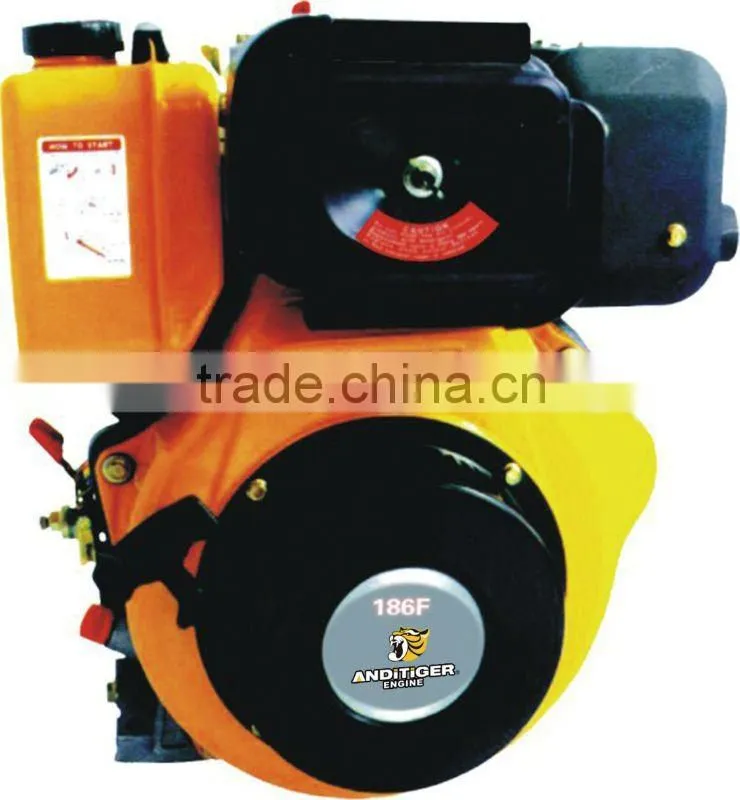

9 HP Small Diesel Engine with CE SONCAP
.High quality power output
.Qualified mechnical seal device

9 HP Small Diesel Engine with CE SONCAP

 •With Strict Testing from Spare Parts to whole Machine,ANDITIGER have superior durability with high performance -price ratio,it is

number one Silent engine

 •Large fuel tank capacity ,four hours of continuous operation

 •High quality power output

 •Qualified mechanical seal device

 •Compact in structure and convenient for carry

 •Easy starting by recoil or E-start(key start with battery)

 •Special balancer shaft inside reduces the vibration to the minimum level



ENGINE (DIESEL  ENGINE)Specification





NAME ITEM AD170F AD178F/FA AD186F/FA
Diesel Engine Engine Type Air-cooled,4-stroke,OHV;single cylinder
Combustion system Direct injection
Bore Stroke(mm) 70×55 78×62/78×64 86×70/86×72
Displacement(cc) 211 296/305 406/418
Engine speed(rpm) 3000 3600 3000 3600 3000 3600
Max. Output(HP) 3.8 4.2 5.7 7 9 10
Continuous Output(HP) 3.4 3.8 5.2 6 8.2 9
Power Take Off Crankshaft or Camshaft(Camshaft PTO rpm is 1/2)
Start system Recoil/Electric(optional)
Fuel tank capacity(L) 2.5 3.5 5.5
Lube oil capacity(L) 0.75 1.1 1.65
Dimensions(LWH)(mm) 420×360×460 440×370×480 480×420×530
Net Weight(recoil)(kg) 27 33 48
Net Weight(electric)(kg) 32 38 53
Fuel type 0#,-10#,-20#
Lube oil type CD Grade or SAE 10W-30,SAE 15W-40
Option Oil bath air cleaner

9 HP Small Diesel Engine with CE SONCAP

About us



Our company was established in2003, we have rich experience in gasoline generator,diesel generator,solar generator,water pump, we have participated some certificate of CE,SONCAP,ISO9000,ISO900A, amd our main market is Africa,east Asia,Austria, Europe and  South America
