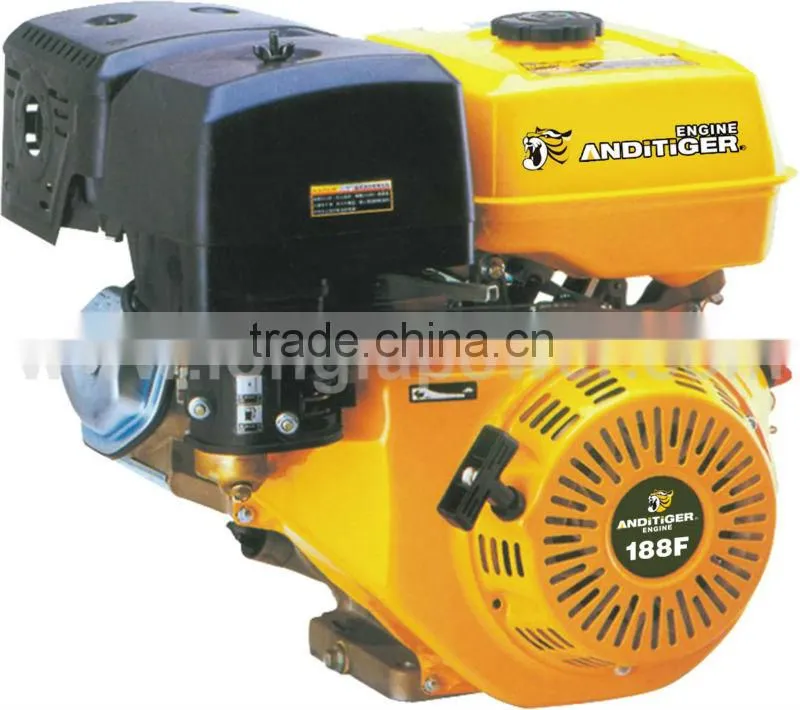

Small 4-stroke Engine

Small 4-stroke Engine thumbnail-1
Small 4-stroke Engine photo-1
US$ 220 - 230 MOQ: 100 Sets
Key Specifications
Get Latest Price
Usage:
Other, Pump, Boat
Fuel:
Diesel
Stroke:
4 Stroke
Contact Supplier Request Quote Chat Now
Taizhou Longfa Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Usage Other, Pump, Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, Hand start
Place of Origin Zhejiang, China
Brand Name ANDITIGER/ANDI/ELEFUJI
Model Number AD186F
Dimension(L*W*H) 480*420*530mm
Weight 53kg
Certification CE,SONCAP

 Description

1. 9.0HP,Easy and fast starting,

2. Diesel,Single Cylinder,4-Stroke,Recoil Start & electric starting.
3. The outpower is 100% enough

4. CE, EPA & SONCAP Standard

5. 8 Years experience in Producing Engine, Generator, Pump



 Parameter



Diesel Engine Type  Single cylinder, vertical, air cooled, 4-stroke
 Combustion type  Direct injection
 Bore*stroke(mm)  86*70
 Displacement(L)  0.406
 Rated power(HP)/rated speed(r/min)  7.72/3000, 8.5/3600
 Lubrication type  Pressure splash
 Lube-oil capacity(L)  1.65
 Fuel tank capacity(L)  5.5
 Fuel consumption[(g/kw.h)  275.1/3000 281.5/3600
 Starting system  Recoil manual/electric
 Dimensions(L*W*H)mm  500*460*560
 Dry weight(kg)  <=48







Small 4-stroke Engine





About Us

       China Longfa Machinery  Co.,Ltd  established in 2003,which is specialized in producing series of gasoline generator ,diesel generator,gasoline engine ,water pump and parts of generators .Meanwhile ,all of our

machine has passed CCC,ISO9001/2000 and CE certificate.We devoted ourselves to offering both qualified products and satisfying service to our customers and strive continuously.

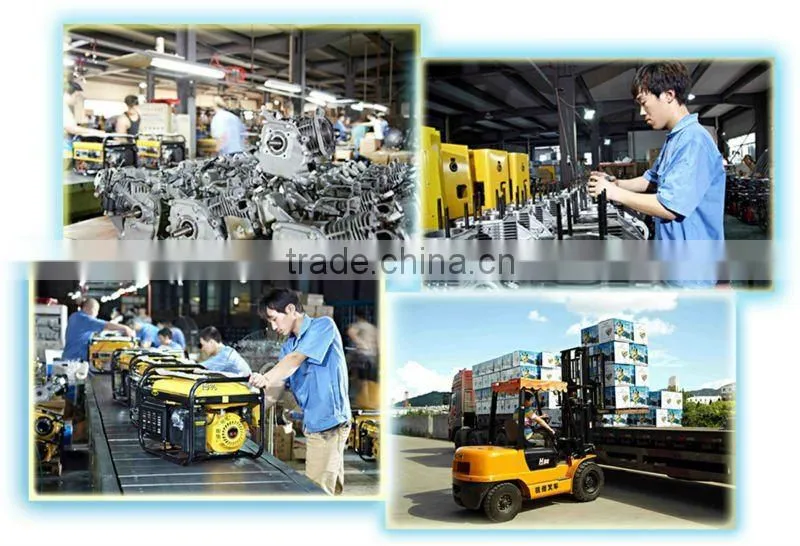

Assembly Line

Small 4-stroke Engine

Certificates

Small 4-stroke Engine

Main Markets



         Most of our machine exported to European Union ,Middle Easet ,Africa,South & East asian countries and regions
