3.6*10mm Fast Acting Glass Tube Fuse Standard Fuse

3.6*10mm Fast Acting Glass Tube Fuse Standard Fuse thumbnail-1

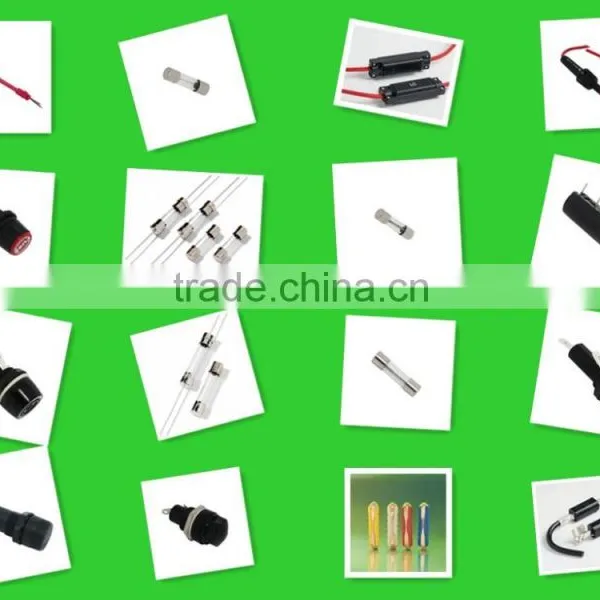

3.6*10mm Fast Acting Glass Tube Fuse Standard Fuse photo-1
US$ 0.03 - 0.05 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANDU
Model Number:
3.6*10mm fast acting glass tube fuse
Contact Supplier Request Quote Chat Now
Dongguan Andu Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ANDU
Model Number 3.6*10mm fast acting glass tube fuse
Type Fuse Link

Rated Current  And  Voltage: 100mA~10A

Rated Current: 100mA~10A;125V/250V AC
Rated  Voltage:125V/250V AC



Marking

The fuse shall have the following marking:

Specification:Characteristic  Symbol+Rated Voltage
   100mA~800mA : _mA250V    1A~10A:_A250V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
 100mA~10A:

Note:Size of the markings have not be specified.

2.SCOPE
Used in electronic equipment.


3.OUTLINE DRAWING AND STRUCTURE

Structure



No.
Component
Material
Quantity
(1)
Wire
Alloy		 1
(2)
Cap
Brass with mickel plated		 2
(3)
Body
GLASS Tube		 1
(4)
Lead
Tinned Copper wire		 2


4.APPEARANCES AND CONFIGURATION


Appearances:There shall no fragmentation and of remarkable blotch.

Configuration:Axial Leaded Fuse.

5.PHYSICAL CHARACTERISTIC

Tensile test

Keep pulling the cap of the fuse with 10N at axial direction for 1 min.

6.ELECTRICAL CHARACTERISTICS:
Pre-Arcing Time/Current Characteristic

a,Breaking capacity(Time Lag and Fast Acting)

50A 125V/250V AC

b,Electrical characteristics
Fast Acting

Rated current % of Ampere  Opening Rating Time

100mA~ 10A		 100% 200%
4 hours, Minimum 5 Sec, Max.

c,Temperature character
    When 100% of rating the temperature rise doesn’t exceed 75℃.
d,ORDERING INFORMATION:

Catalog Number Ampere Rating Voltage Rating Nominal Resistance Cold mOhms Nominal Melting i2tA2Sec. Agency Approvals
UL CSA CQC
3GFU-.100 .100 125/250V 4.8250 0.00194 × × ×
3GFU-.125 .125 125/250V 3.8620 0.00289 × × ×
3GFU-.200 .200 125/250V 1.7302 0.0114 × × ×
3GFU-.250 .250 125/250V 1.6120 0.0225 × × ×
3GFU-.300 .300 125/250V 0.9250 0.0295 × × ×
3GFU-.400 .400 125/250V 0.5840 0.0695 × × ×
3GFU-.500 .500 125/250V 0.2322 0.128 × × ×
3GFU-.600 .600 125/250V 0.1765 0.218 × × ×
3GFU-.750 .750 125/250V 0.1310 0.254 × × ×
3GFU-.800 .800 125/250V 0.1215 0.304 × × ×
3GFU-001. 1.00 125/250V 0.1056 0.508 × × ×
3GFU-01.5 1.50 125/250V 0.0595 0.884 × × ×
3GFU-01.6 1.60 125/250V 0.0565 0.965 × × ×
3GFU-002. 2.00 125/250V 0.0378 2.27 × × ×
3GFU-02.5 2.50 125/250V 0.0342 3.73 × × ×
3GFU-3.15 3.15 125/250V 0.0253 5.95 × × ×
3GFU-004. 4.00 125/250V 0.0174 8.86 × × ×
3GFU-04.5 4.50 125/250V 0.0170 9.77 × × ×
3GFU-005. 5.00 125/250V 0.0145 15.6 × × ×
3GFU-006. 6.00 125/250V 0.0132 18.0 × × ×
3GFU-06.3 6.30 125/250V 0.0120 19.3 × × ×
3GFU-06.5 6.50 125/250V 0.0118 21.9 × × ×
3GFU-007. 7.00 125/250V 0.0111 25.8 × × ×
3GFU-008. 8.00 125/250V 0.0088 33.2 × × ×
3GFU-010. 10.0 125/250V 0.0056 88.5 × × ×



Average Time Current Curves

 7. ENVIRONMENTAL SPECIFICATION:

Operating Temperature: -5℃~60℃

Storage Conditions

Temperature: +10℃~60℃

On average, It can be stored below the relative humidity or 75% for 3 years.

Without dew, It can be kept under humidity of 95% for 30 days.

SOLDERING PAAMETERS
8-1
Wave Solder

Soldering Temperature:260±5℃

Soldering Time:4 Sec.Max.

Manual Solder

Soldering Temperature: 350±5℃

Soldering Time: 3 Sec. Max.



OTHER NOTICE IN USING

If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
