Home > Products > Diesel Generator > 18KW 20KVA Double Cylinder Water Cooled Silent Cummins Generator Price Quality Choice

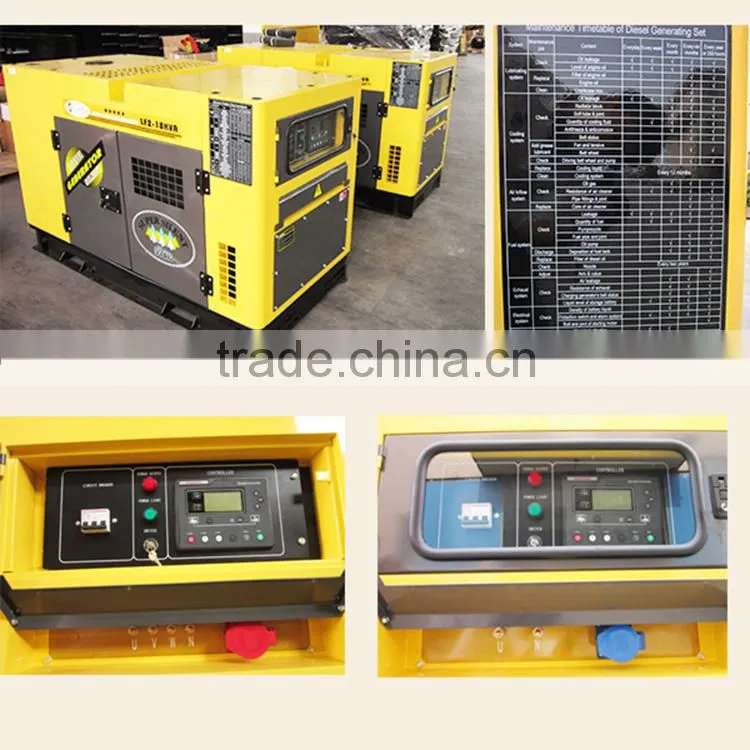

18KW 20KVA Double Cylinder Water Cooled Silent Cummins Generator Price Quality Choice
- Ningbo/Shanghai
- T/T PayPal
You May Like
-
5KW 5.5KVA Air Cooled Electric Start Kama Generator Diesel for Sale Quality Choice
-
100% Copper Wire Generator Diesel 3KVA With Price 178F Diesel Engine Generator 5HP Diesel Generator
-
5KW Diesel Generator Price Cheap 6KVA Diesel Generator 10HP Diesel Generator Set
-
3kW Small Home Use Silent Diesel Generators
-
China LONFA ANDITIGER Silent Electric Diesel Generator Set Price List
-
Silent Mobile Home Used Standby Genset Diesel Generator
Product Details
Place of Origin | Zhejiang, China | Brand Name | LONFA | |
Model Number | LF18000DST | Output Type | AC Three Phase | |
Speed | 3600 | Frequency | 50HZ | |
Rated Power | 20kva | Rated Voltage | 220V | |
Rated Current | 81A |
Product Description
18KW 20KVA Double Cylinder Water Cooled Silent Cummins Generator Price
Engine: Normal China Engine, original Perkins Engine, Cummins Engine are optional
Alternator: Normal China Alternator, Original Stanford alternator are optional
Mainly Brand: LONFA,ANDITIGER,ANDI or Customer's Own brand
High Quality Muffler/Silencer with low noise
Alert if the power output exceeds the max Power
Low oil pressure alarm system
With/withou ATS( Automatic transfer switch )system is optional
Any colour can be offered
Two after-sale service center
Branch Company :BUCKCASA GENERATOR CENTER IN CAPETOWN, SOUTH AFRICA.
Head Company: TAIZHOU LONGFA MACHINERY CO.,LTD IN TAIZHOU,ZHEJIANG ,CHINA
18KW 20KVA Double Cylinder Water Cooled Silent Cummins Generator Price Specification
ITEM | 10-100KVA DIESEL SILENT GENERATOR | |||||||
Rated frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated output(kVA) | 10.6/13.1 | 17/20 | 24/28 | 28/35 | 37/45 | 50/60 | 62/75 | 80/100 |
Max.output(kVA) | 11.6/14.5 | 18.5/22 | 26/30 | 31/38 | 40/48 | 54/64 | 66/80 | 85/105 |
Rated Voltage(V) | 400/230 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 |
416/240 | 240/416 | 240/416 | 240/416 | 240/416 | 240/416 | 240/416 | 240/416 | |
Rated current(A) | 15.3/18.2 | 24.5/27.8 | 34.6/38.9 | 40.4/48.6 | 53.4/62.5 | 72.2/83.3 | 89.5/104 | 115/138.8 |
Rated speed(r/min) | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 |
Pole No. | 4 | |||||||
Loop mode | Signle-phase,three-loop | |||||||
Excitation mode | Brushless self-excitation and constant voltage(AVR) | |||||||
Power factor(cos) | 0.8(lag) | |||||||
Insulation grade | H | |||||||
Engine model | KD388G | KD488G | KM493G | KM493ZG | KD4105G | KD4105ZG | KD6105G | KD6105ZG |
Engine type | Two/Three-cylinda | Four-cylinda | Six-cylinda | |||||
in-lined,four-stroke,direct injection,water-cooled | ||||||||
BoreXStroke(mm) | 88X90 | 88X90 | 93X102 | 93X102 | 105X125 | 105X125 | 105X125 | 105X125 |
Total displacement(L) | 1.642 | 2.19 | 2.771 | 2.771 | 4.33 | 4.33 | 6.494 | 6.494 |
Compression ratio | 18.2:1 | 18.2:1 | 18.2:1 | 18.2:1 | 17.5:1 | 17.5:1 | 17.5:1 | 17.5:1 |
Cooling water capacity(engine)(L) | 1.87 | 6 | 10 | 3.9 | 5.1 | 30 | 45 | 45 |
Radiator tank(L) | 3.25 | 3.7 | 8 | 8 | 10.4 | 10.4 | 12 | 12 |
Lube oil capacity(L) | 6.9 | 8.5 | 8.5 | 8.5 | 11 | 11 | 18.5 | 18.5 |
Starting system | 12V Electric starter | |||||||
Fuel type | 0#(summer),-10#(winter),-35#(chillness)diesel | |||||||
Fuel Consumption | ≤340 | ≤320 | ≤320 | ≤300 | ≤300 | ≤290 | ≤290 | ≤290 |
Output voltage(V) | 400/230;416/240 | |||||||
Receptacle | Two single-phase receptacles | |||||||
Connection pole | Available | |||||||
Noise level(zero load-full load)[dB(A)/7m] | 51/53 | |||||||
Fuel tank capacity(L) | 65 | 65 | 95 | 95 | 95 | 95 | 110 | 110 |
Continuous running time(h) | 15/12 | 10/8.5 | 10.5/9 | 9.5/7.5 | 7/6 | 5.5/4.5 | 5.5/4.5 | 4.5/4 |
Overall dimension(LXWXH)(Cm) | 157X78X105 | 157X78X105 | 190X95X120 | 190X95X120 | 225X95X130 | 225X95X130 | 270X114X150 | 270X114X150 |
Dry weight(kg) | 685 | 720 | 960 | 985 | 1270 | 1310 | 1650 | 1680 |
1.Q:What is the Quality Warranty for the products?
A:We offer Different quality as your market demand, there are two-- year's Warranty products, one-year's Warranty Products and 6- Month's Warranty products.
Our company provides a guarantee on purchased goods from the date factory inspection, subject to the requirements of the consumer, product manuals, instructions and descriptions of those attached to the delivered goods.
The warranty is in valid under the follow situations::
1. Normal wear parts and assemblies;
2. Failure to comply with the operating instructions;
3. Using substandard consumables (fuel, motor oil);
4. Violation of the storage conditions, mechanical damage during transportation.
5 .Any changes to the model you purchased.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai .2hours plane from Guangzhou. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase;
If you request copper wire, must 100% Pure Copper Wire ;
If you request Aluminium, must 100% Aluminium.
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,
but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
