US$ 35,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Zhangjiagang Yahua Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShanghHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pipe
Plastic Processed PE
Screw Design Single-screw
Automatic Grade fully automatic
Place of Origin Jiangsu, China
Brand Name YAHUA
Model Number SJSZ
Voltage 380V
Power(W) 22-132kw
Dimension(L*W*H) 35*3.5*3.8m
Weight 12T
Certification CE&ISO
After-sales Service Provided Engineers available to service machinery overseas



                             PE plastic pipe extrusion line

2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

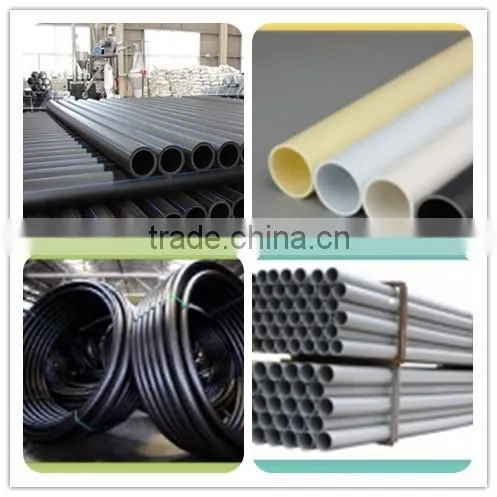

PE plastic pipe production line is mainly used in the manufacture of PE pipes with various diameters and wall thickness in the aspects such as the agricultural and construction etc.



This PE pipe production line include: material charger, SJ series single screw extruder, pipe mould,vacuum calibration tank, spray cooling tank, haul-off, no-duct cutter, stacker, winder(for small pipes).The hual-off equiped metering device to count the length.

2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line





 Pipe Range(mm) 16-63 20-110 75-160 90-250 110-315 160-450 315-630 500-800
Extruder Φ45mm Φ60mm Φ75mm Φ75mm Φ90mm Φ90mm Φ120mm Φ1501mm
Extruder Power AC30KW DC75KW 110KW 110KW 160KW 160KW 280KW 335KW
Extrusion Capacity(kg) 60-100 100-150 250-300 250-300 350-400 350-400 650-700 850-900
Max.Speed 10m/min 6m/min 6m/min 6m/min 3m/min 1.2m/min 0.9m/min 0.7m/min


2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

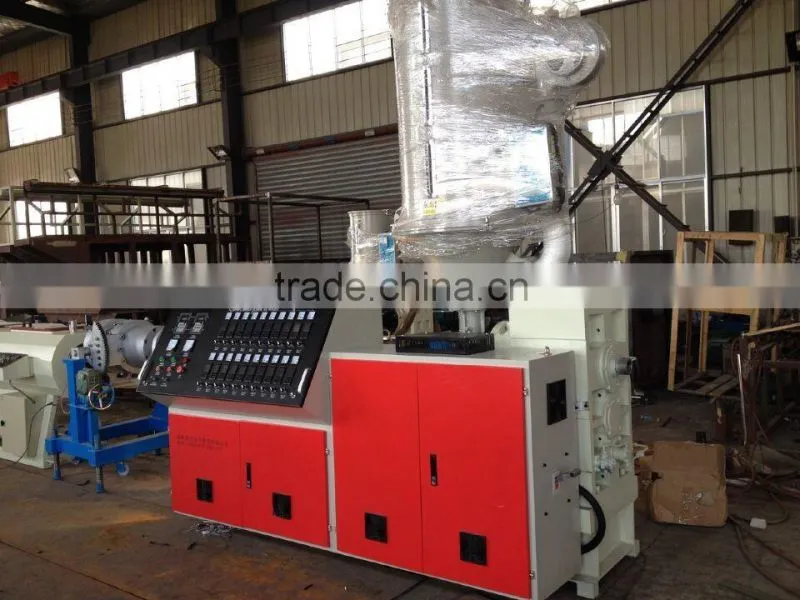

1.PE extruder

 2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

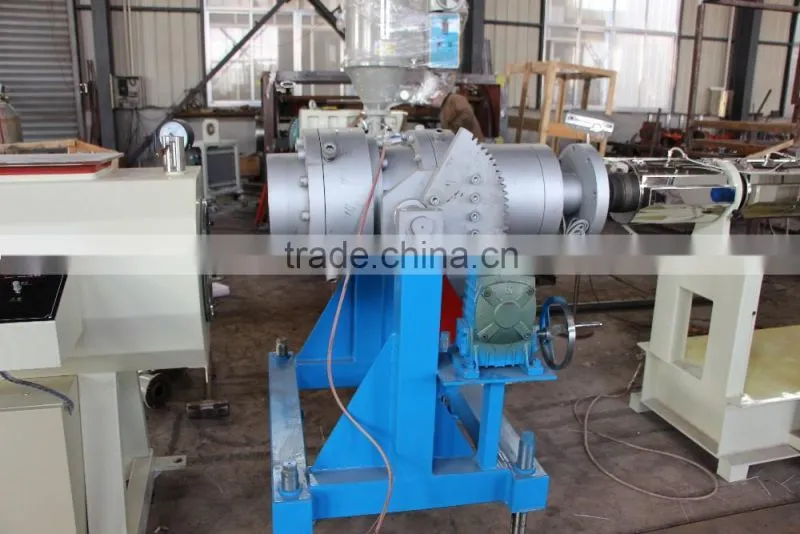

2.mould



 2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

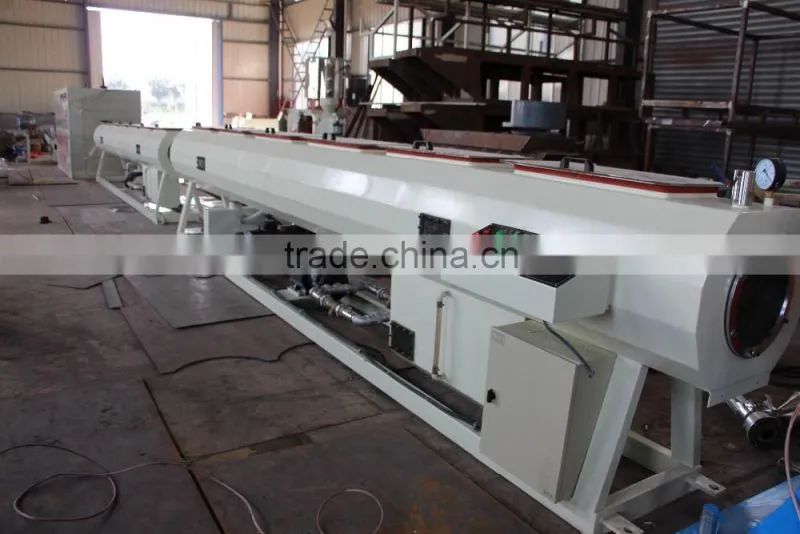

3.vacuum calibration tank

2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

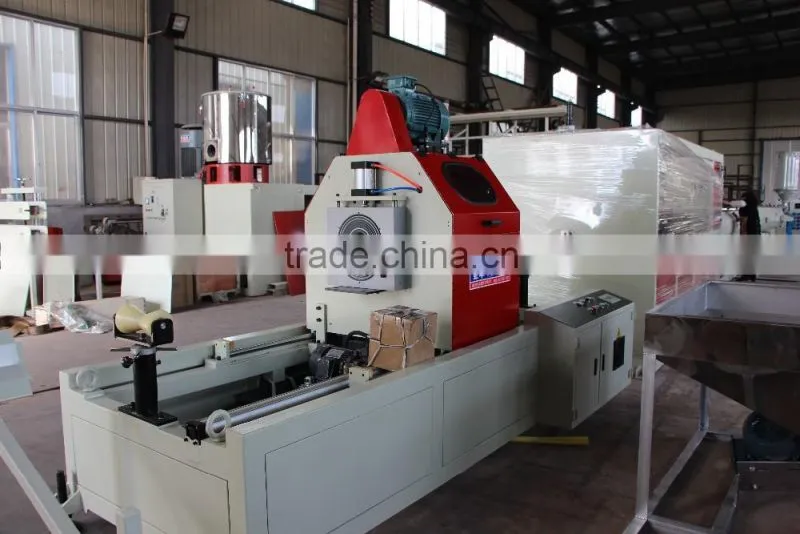

 4. cutting machine

2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

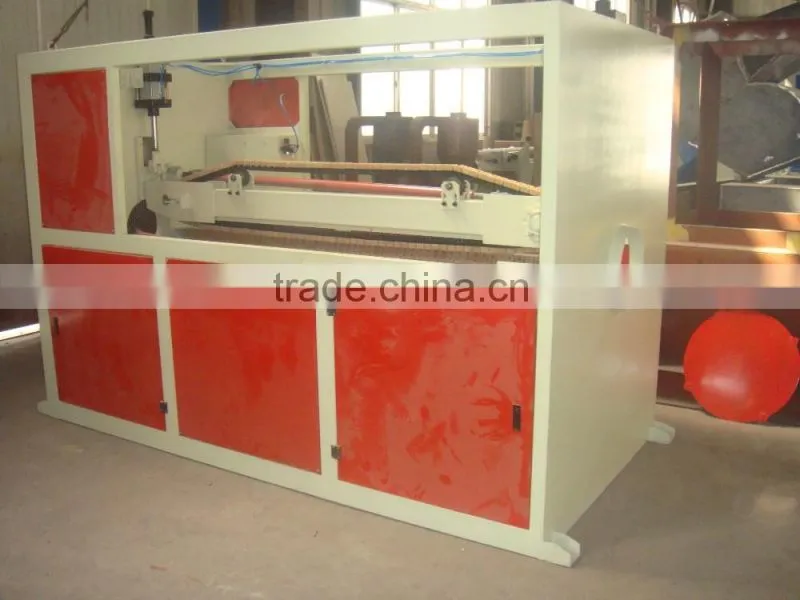

 5.Haul off

 2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

 2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line



2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line



2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line



2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line







2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line



2016 higher quality PE pipe extrusion line/PE pipe production machine/ PE plastic pipe extrusion machine line

 If you are interested in YAHUA machinery  ,please feel free to contact us.
Of course, welcome to visit our company!
