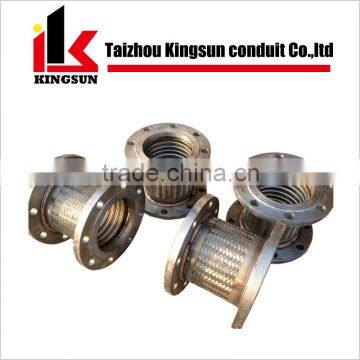

High Pressure Stainless Steel Braided Corrugated Hose
Introduction:
This stainless steel flexible pipe is used for wire protection at railways,engines, traffic system engineering,air-conditioners, various machineries,automatic controlling equipment,power plants, chemical industries, power distribution system,communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.
Product property:
1.The flexible pipes have extremely good waterproof,insulating and pull resistance.
2.The structure is buckle structure,which enhances the pull resistance and is not liable to crack or deform.
3.Good bending performance,The inner smoothness makes the entry of wires very easy.
Product usage:
Protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring.
How to use:
Put the wires/cables through the pipes before fitting correspondent type of DPJ joints.
Pictures:
Product parameter:
| Item No. | Specifications |
Outer diameter and tolerance(mm) |
Natural curve | Max.axial pull | Packaging unit(meter) | |
| Metric | G system | (mm) | (kg) | |||
| JS-JSBXG-6 | ø6 | 3/16’’ | 9.00±0.25 | 40 | 336 | 200 |
| JS-JSBXG-8 | ø8 | 1/4’’ | 11.8±0.30 | 45 | 470 | 200 |
| JS-JSBXG-10 | ø10 | 5/16’’ | 14.5±0.30 | 55 | 590 | 100 |
| JS-JSBXG-12 | ø12 | 3/8’’ | 16.5±0.35 | 60 | 710 | 100 |
| JS-JSBXG-13 | ø13 | 3/8’’ | 17.5±0.35 | 65 | 765 | 100 |
| JS-JSBXG-15 | ø15 | 1/2’’ | .20.2±0.35 | 80 | 885 | 100 |
| JS-JSBXG-16 | ø16 | 1/2’’ | 21.2±0.35 | 85 | 940 | 100 |
| JS-JSBXG-19 | ø19 | 3/4’’ | 24.5±0.40 | 95 | 1120 | 50 |
| JS-JSBXG-20 | ø20 | 3/4’’ | 25.5±0.40 | 100 | 1180 | 50 |
| JS-JSBXG-25 | ø25 | 1’’ | 31.7±0.45 | 120 | 1450 | 50 |
| JS-JSBXG-32 | ø32 | 1 1/4’’ | 39.6±0.50 | 150 | 1885 | 25 |
| JS-JSBXG-38 | ø38 | 1 1/2’’ | 46.6±0.60 | 180 | 2240 | 25 |
| JS-JSBXG-51 | ø51 | 2’’ | 59.5±1.00 | 220 | 3000 | 20 |
| JS-JSBXG-64 | ø64 | 2 1/2’’ | 73.5±1.50 | 310 | 3770 | 10 |
| JS-JSBXG-75 | ø75 | 3’’ | 84.5±2.00 | 350 | 4400 | 10 |
| JS-JSBXG-100 | ø100 | 4’’ | 109.0±3.0 | 410 | 4700 | 10 |
Nomal Packaging: Use KINGSON brand wrapping plastic film or brand carton box in condition.
Delivery Detail: 5-15days after we receive all the payment.
Taizhou Kingsun Conduit Co,.Ltd
Established in the year 1988,Kingsun International Co.,ltd is a leading manufacture and exportor of EMT,Flexible conduits and Accessories.Recently,it forms a complete network for sales in domestic,and established good business relationships with clients in Japan,South America and West Europe.
Our company is a professional producer of flexible pipes,flexible pipe joints,cable joints,plastic coated metal flexible pipes and metal pipe joints.Strict quality management and advanced production guarantee the quality of our products and contribute to the rapid development of our enterprise.Moreover,our enterprise has passed the evaluation of ISO9001:2000 certification and our cable joints and flexible pipes have passed ROHS environmental protection test.Our products are widely applied to such fields as electric engines,automobile cables,machinery,automatic instruments and meters and motors for tobacco equipment and installation engineering.
Company Show
1. Superior Quality:
All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.
2. Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.
3. Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clampsreducing bushings and so on.
4. Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
