plastic pipe winding

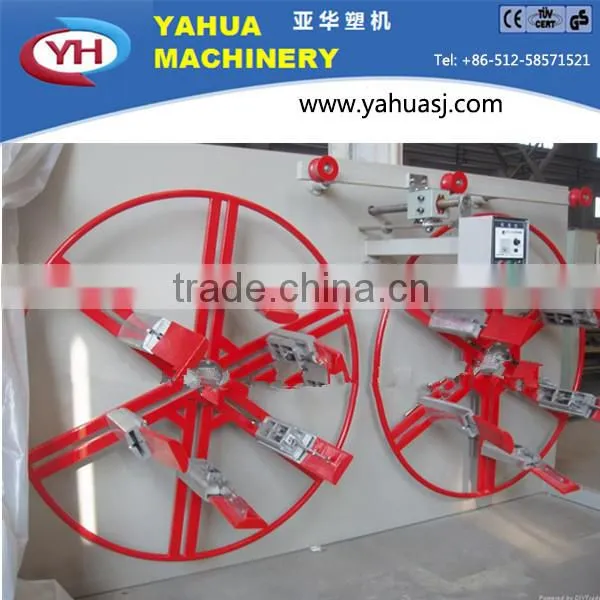

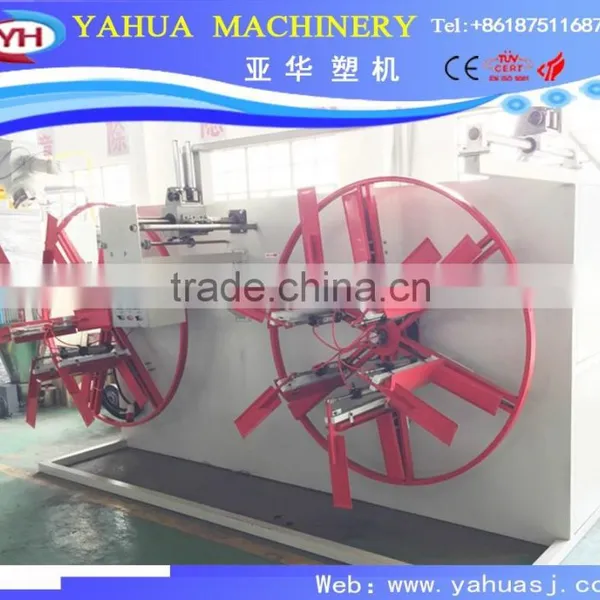

SPS plastic double station coiler,plastic pipe double station winder, Plastic pipe winder
1. This automatic machine is special suitable for kinds of plastic pipes. It adopts double winder, high effective.
2. The machine was mainly used to tolling and packing of the plastic soft pipes. Its matches other equipment in exchange to effect the automatic processing
The machine is mainly used in winding-up and packing of aluminium-plastic compound pipe, cross-linking compound and other plastic soft pipes. It adopts automatically winding, adjusting winding speed and winding method. It has two disk for continuous winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equiped with a ray creel stand to automatically wind displacement. It reaches winding up orderly. The machine structure is compact. Its automatication is high. Its appearance is beautiful and its operation is convenient.
Technical data |
1600Type Single Disk Winder |
3000Type Single Disk Winder |
Suitable pipe diameter |
Ø16-63mm |
Ø63-110mm |
Winding inner diameter |
550-1000mm |
1000-3000mm |
Winding Speed |
0.5-40 m/min |
0.5-50m/min |
Winding Width |
300-500mm |
300-500mm |
Winding Moment Motor Spec. |
16N.m |
30N.M |
Air compressor |
0.6MPa |
0.6MPa |
Dimensions(LXWXH) |
2700x1700x1800 |
3500X2000X3500 |
Weight |
800kg |
3000kg |
PVC Pipe Plastic Production Line
