Home > Products > Flexible Conduit Pipes > Explosion Protected Flexible Metal Corrugated Conduits

Explosion Protected Flexible Metal Corrugated Conduits

FOB Price

US$ 0.19 - 0.49 / Meter

1000 Meters(Min. Order)

Port Shanghai Port
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Kingsun, KINGSON
Model Number	JS	Type	Flexible
Material	Steel

Product Description

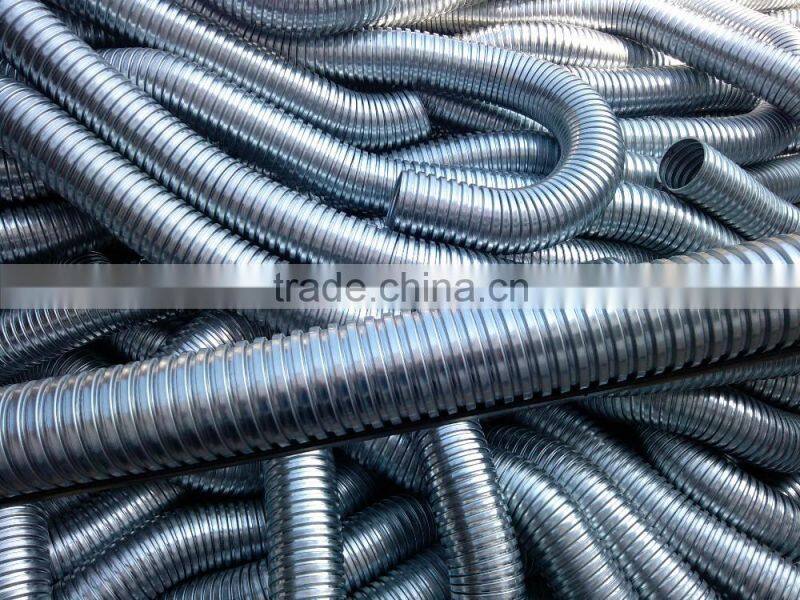

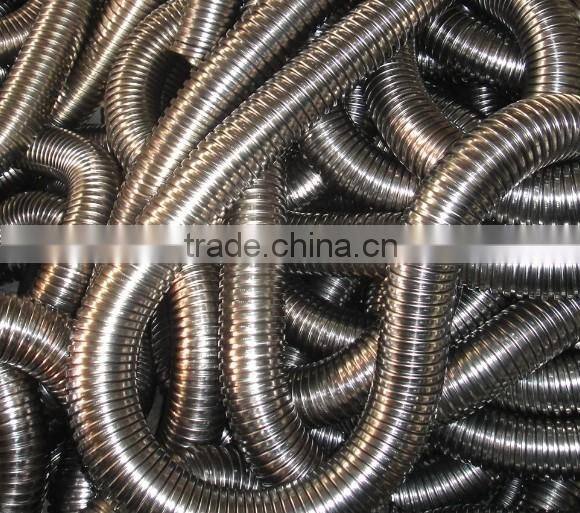

Explosion protected flexible metal corrugated conduits

1.Material: (inner layer) adopting galvanized steel band with special insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging) Color: Black and gray.
2.Working temperature: -10℃ ~ +80℃
3.Certification acquired: European Environmental Protection Certification,SGS: SH6134468/CHEM
4.Application: Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.
5.Usage: protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring.
6.How to use: Put the wires/cables through the pipes before fitting correspondent type of LNE-DPJ joints.

Detailed Images

Item No.	Specifications		Outer diameter and tolerance(mm)	Natural curve(mm)	Max.axial pull(N)	Packaging unit(meter)
Item No.	Metric	G system	Outer diameter and tolerance(mm)	Natural curve(mm)	Max.axial pull(N)	Packaging unit(meter)
JS-JS-6	ø6	3/16’’	8.2±0.25	40	336	200
JS-JS-8	ø8	1/4’’	11.0±0.30	45	470	200
JS-JS-10	ø10	5/16’’	13.5±0.30	55	590	100
JS-JS-12	ø12	-	15.5±0.35	60	710	100
JS-JS-13	ø13	3/8’’	16.5±0.35	65	765	100
JS-JS-15	ø15	-	19.0±0.35	80	885	100
JS-JS-16	ø16	1/2’’	20.0±0.35	85	940	100
JS-JS-19	ø19	-	23.3±0.40	95	1120	50
JS-JS-20	ø20	3/4’’	24.3±0.40	100	1180	50
JS-JS-25	ø25	1’’	30.3±0.45	120	1450	50
JS-JS-32	ø32	1 1/4’’	38.0±0.50	150	1885	25
JS-JS-38	ø38	1 1/2’’	45.0±0.60	180	2240	25
JS-JS-51	ø51	2’’	58.0±1.00	220	3000	20
JS-JS-64	ø64	2 1/2’’	72.5±1.50	310	3770	10
JS-JS-75	ø75	3’’	83.5±2.00	350	4400	10
JS-JS-100	ø100	4’’	108.5±3.0	410	4700	10
JS-JS-125	ø125	5’’	134.5±4.0	480	5100	10

Packing & Delivery

Our Service

1. Superior Quality:

All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.

2. Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.

3. Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clampsreducing bushings and so on.

4. Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.

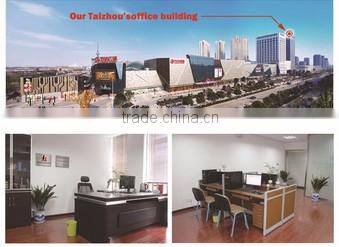

Our Company

Taizhou Kingsun Conduit Co,.Ltd

Established in the year 1988,Kingsun International Co.,ltd is a leading manufacture and exportor of EMT,Flexible conduits and Accessories.Recently,it forms a complete network for sales in domestic,and established good business relationships with clients in Japan, South America and West Europe.

Our company is a professional producer of flexible pipes, flexible pipe joints, cable joints, plastic coated metal flexible pipes and metal pipe joints,Strict quality management and advanced production guarantee the quality of our products and contribute to the rapid development of our enterprise. Moreover, our enterprise has passed the evaluation of ISO9001:2000 certification and our cable joints and flexible pipes have passed RoHS environmental protection test. Our products are widely applied to such fields as electric engines, automobile cables, machinery, automatic instruments and meters and motors for tobacco equipment and installation engineering.

FAQ

1.DO you have factory?
Yes ,welcome to you visit our factory at any time.

2.Can you send us the sample?
Yes ,We are accept your sample requirement.

3.How about the delivery time?
Within 15-20 days after we confirm you requirement.

4.what kind of payment does your company support?
T/T, 100% L/C at sight, Cash, Western Union are all accepted.

5.How to order steel galvanized pipe ?
Please give us your specification :product type,thickness,OD,quantity.

6.Do you have UL/CSA certification?
Yes,most of our products are UL approved.

7.Why choose us?
(1). We are China Leading Electrical products Manufacturer.
(2). Inspected by the Inspection Institution of UL Certification.
(3). 100% QC inspection Before Shipment.
(4). Best Quality & Best Service with Competitive price.
