Electronic Nichrome Alloy Heating Bright Wires
Introduction of heating wire:
The Nichrome chemical composition is nickel, chromium and ferrum, it used at operating temperatures up to 1200 degrees. Its chemical composition gives good oxidation resistance, especially under conditions of frequent switching or wide temperature fluctuations. They are used for electric resistances of appliances or for application of industrial furances.
1 good oxidation resistance
2 low embrittlement at high temperature
3 good plasticity(easier to give them a shape)
4 nice performance and processing
Applications of heating wire:
1 used in the explosives and fireworks industry as a bridgewire in electric ignition system
2 Industrial and hobby hot wire foam cutters
3 testing the colour of the flame in the non-luminous part of fire of a cation
4 used in ceramics as an internal support structure
Main Technical Data of heating wire:
| Chemical Composition and Main Property | ||||||
| Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1 | 1.04 | |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
| Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |

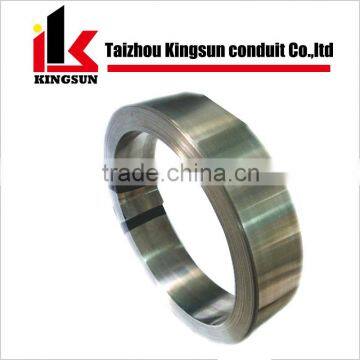

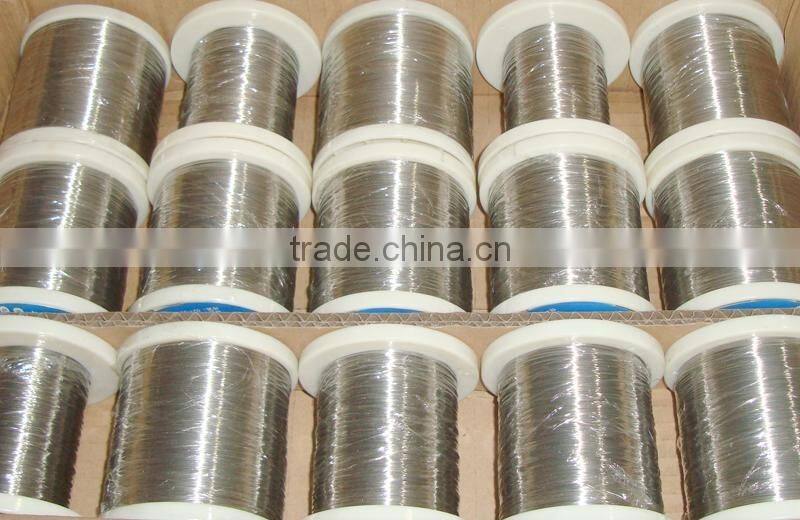

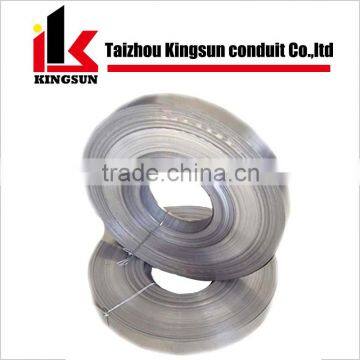

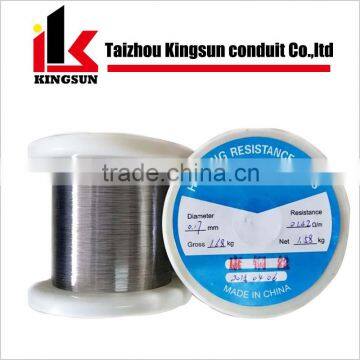

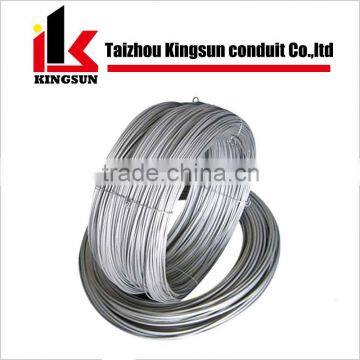

Pictures of heating wire:
Nomal Packaging: Use KINGSON brand wrapping plastic film or brand carton box in condition.
Delivery Detail: 5-15days after we receive all the payment.
Taizhou Kingsun Conduit Co,.Ltd
Established in the year 1988,Kingsun International Co.,ltd is a leading manufacture and exportor of EMT,Flexible conduits and Accessories.Recently,it forms a complete network for sales in domestic,and established good business relationships with clients in Japan,South America and West Europe.
Our company is a professional producer of flexible pipes,flexible pipe joints,cable joints,plastic coated metal flexible pipes and metal pipe joints.Strict quality management and advanced production guarantee the quality of our products and contribute to the rapid development of our enterprise.Moreover,our enterprise has passed the evaluation of ISO9001:2000 certification and our cable joints and flexible pipes have passed ROHS environmental protection test.Our products are widely applied to such fields as electric engines,automobile cables,machinery,automatic instruments and meters and motors for tobacco equipment and installation engineering.

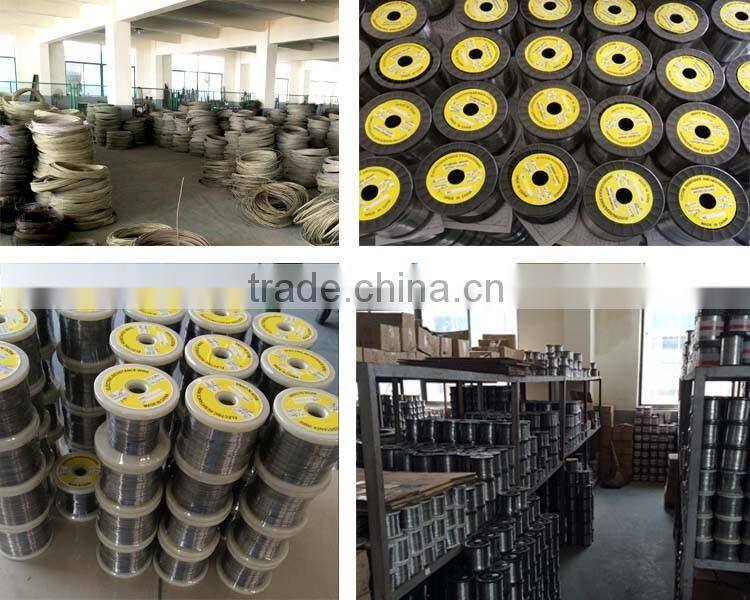

Company Show
1. Superior Quality:
All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.
2. Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.
3. Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clampsreducing bushings and so on.
4. Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.
