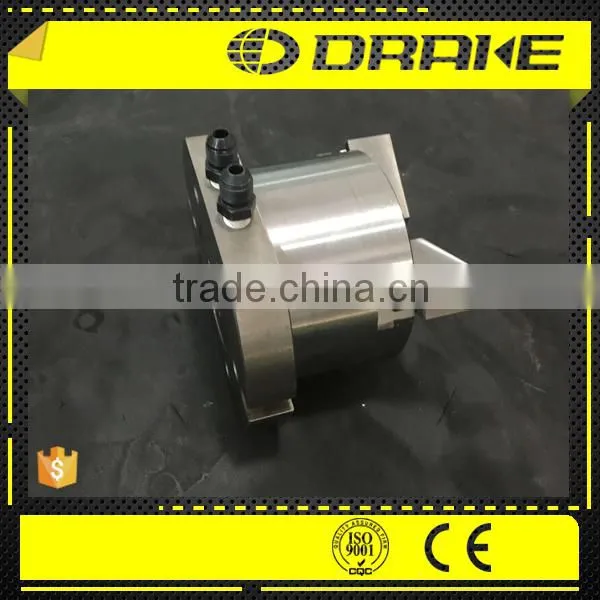

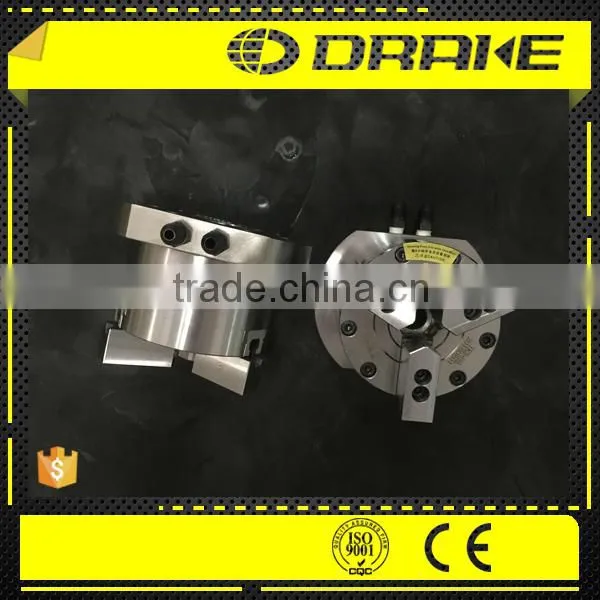

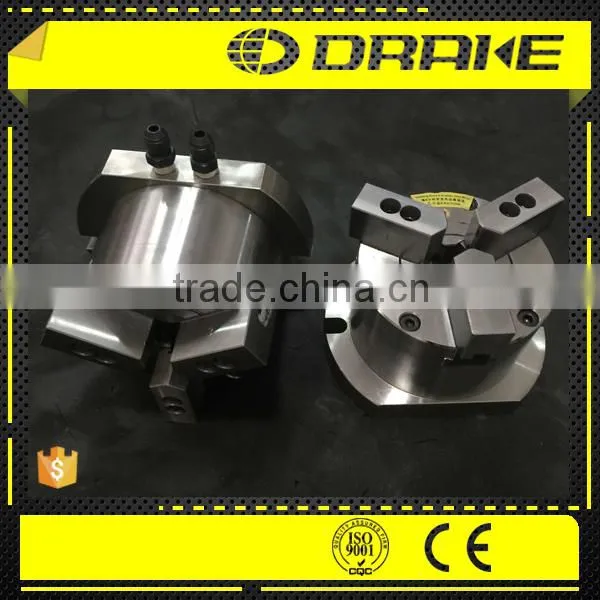

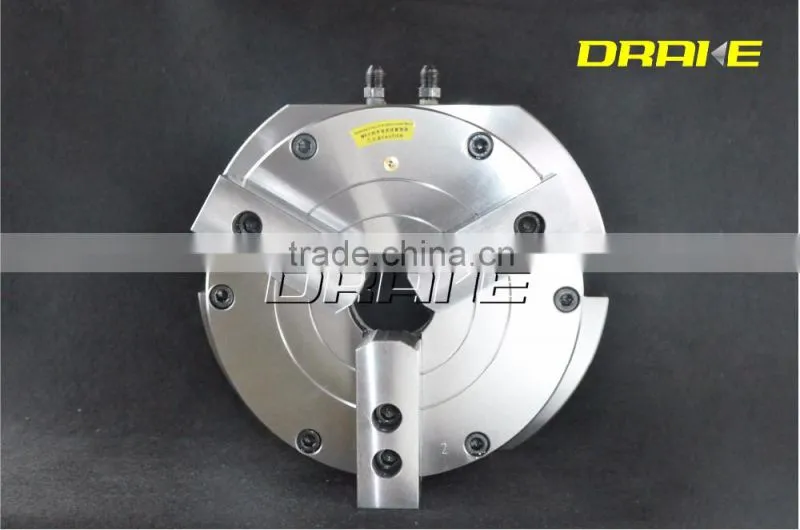

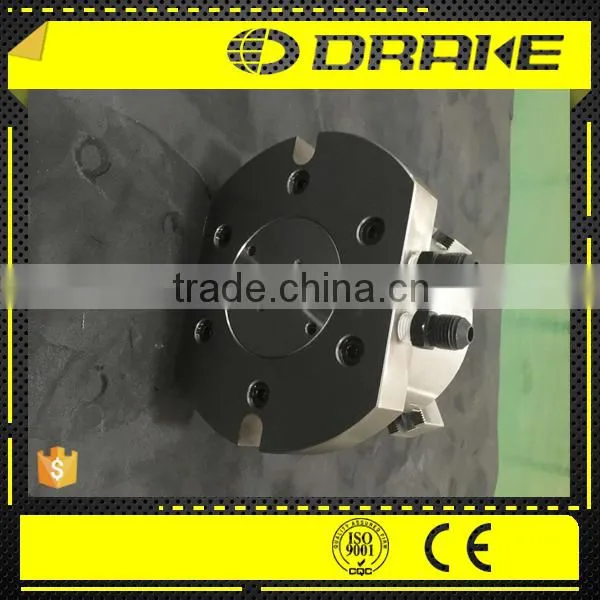

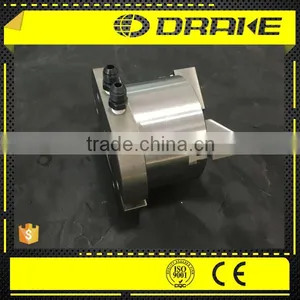

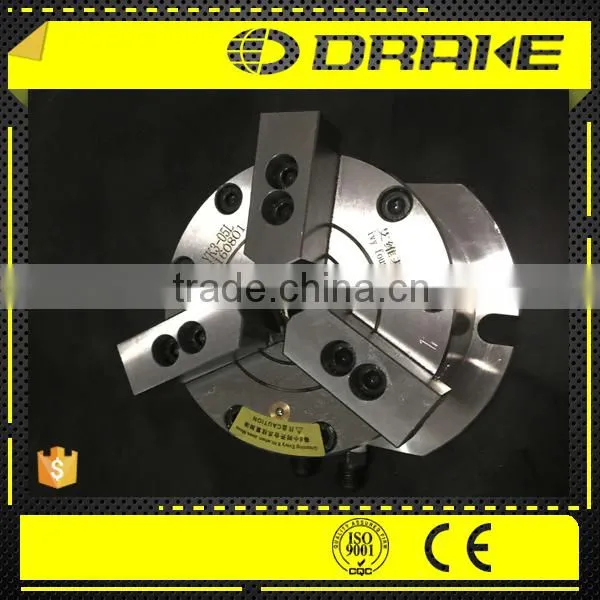

CNC wheel vertical lathe machine with 3 jaw Vertical Hollow Hydraulic Power Chuck
Technical features:

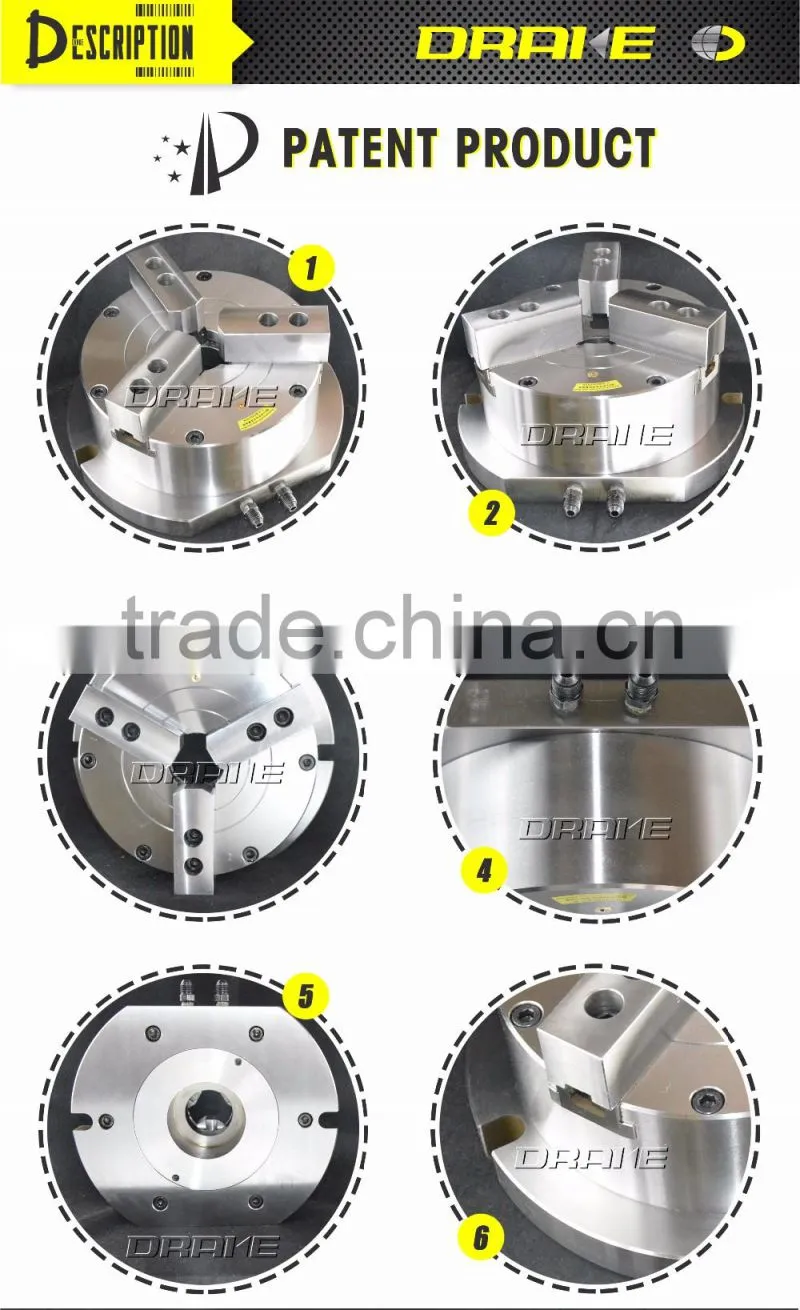

1. Patent product, vertical type with baseboard.
2. Super thin body, easy retrofit.
3. Accuracy, within 0.03mm.
4. Pneumatic operation Standard.
5. This chuck is applicable for machining center, driller and miller.
6. 2 jaw and 4 jaware available.
7. Rigid and short construction makes the stationary 3 jaw chucks ideal for
operating in machining centers
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

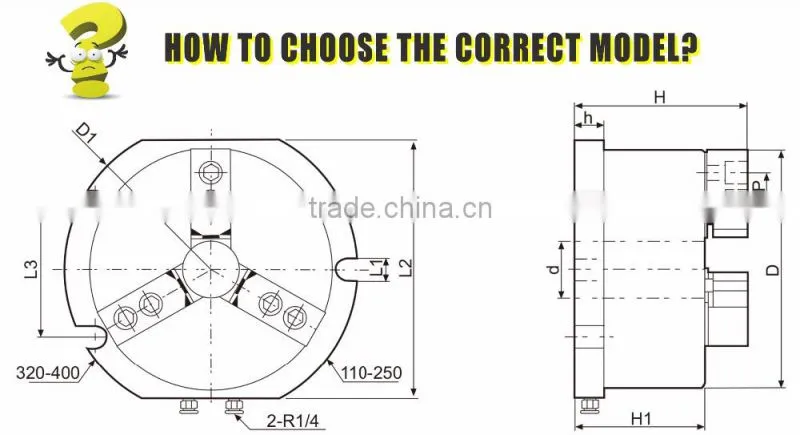

Size Parameters
| Model/Spec | D | D1 | d |
L1 | L2 | L3 | H | H1 | h | p |
| YK3-04L" | 115 | 160 | - | 2~15 | 120 | - | 116 | 92 | 20 | 14 |
| YK3-05L" | 135 | 175 | 20 | 2~15 | 140 | - | 120 | 97 | 26 | 14 |
| YK3-06L" | 172 | 218 | 35 | 2~17 |
180 | - | 142 | 109 | 26 | 20 |
| YK3-08L" | 208 | 265 | 40 | 2~17 | 220 | - | 155 | 115 | 26 | 25 |
| YK3-10L" | 252 | 310 | 60 | 2~20 | 260 | - | 157 | 115 | 26 | 30 |
| YK3-12L" | 322 | 400 | 80 | 2~20 | 340 | 150 | 185 | 133 | 30 | 30 |
| YK3-15L" | 400 | 480 | 100 | 2~20 | 430 | 150 | 220 | 148 | 35 | 43 |

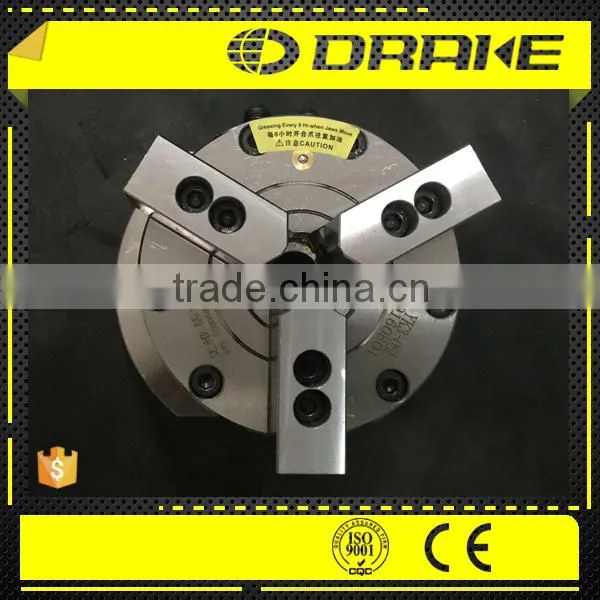

It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec |
Jaw Stroke (Diameter) (mm) |
Max. static clamping force (kgf) |
Max. static holding force (kgf) |
Permissible pressure (Mpa) |
Clamping range |
Holding range |
Net Weight (kg) |
| YK3-04L" | 3.2 | 2440 | 1630 | 0.4-1.5 | 3-115 | 15-120 | 8 |
| YK3-05L" | 3.7 | 3060 | 2040 | 0.4-1.5 | 5-130 | 15-140 | 11 |
| YK3-06L" | 4.2 | 5300 | 3460 | 0.4-1.5 | 5-170 | 20-180 | 18 |
| YK3-08L" | 5 | 8360 | 5100 | 0.4-1.5 | 10-210 | 25-230 | 28 |
| YK3-10L" | 6.5 | 11520 | 7140 | 0.4-1.5 | 20-250 | 30-260 | 40 |
| YK3-12L" | 8.5 | 13660 | 9990 | 0.4-1.0 | 30-320 | 40-340 | 75 |
| YK3-15L" | 12 | 19890 | 13260 | 0.4-1.0 | 40-400 | 60-420 | 120 |
jaw Vertical Hollow Hydraulic Power Chuck 3 jaw Vertical Hollow Hydraulic Power Chuck 3 jaw Vertical Hollow Hydraulic Power Chuck 3
