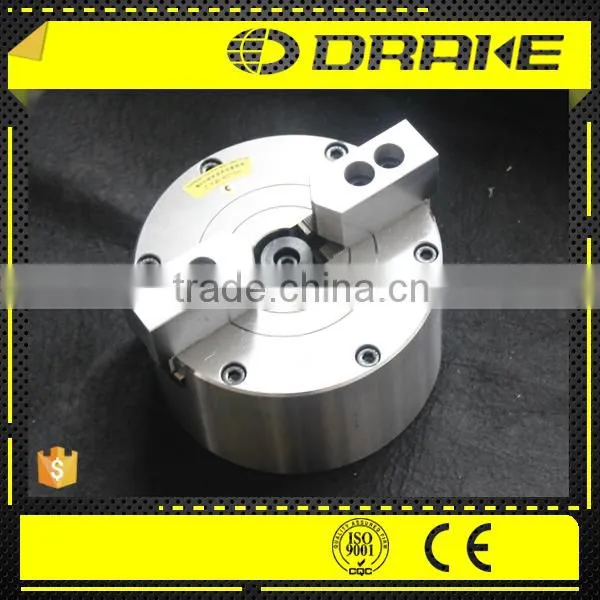

QS2-8 Air Operated 8inch Clamp Power Chuck Lathe (built-in with cylinder)
- 12780 Set / Sets per Month
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
-
LENZ6 valve chuck collet
-
LIVTER 5 inch 4 jaw wood lathe chuck for woodworking turning machine
-
LIVTER 3.75 inch woodworking chuck sets for wood rotary lathe machine accessories umbrella tooth lathe chuck sets
-
Lathe Chucks 3 Jaw Lathe Chuck 10\"/250mm 3 Jaw Drill Mill Tool Metal Lathe Chucks
-
LIVTER Multi-Functional Small Woodworking Lathe Chuck Household Diy Multi-Purpose British Threaded Shaft Connecting Four-Jaw Lin
-
High Precision 4-Inch 6-Inch Drilling Tools 4 Jaw Linkage Lathe Chuck For Wood Lathe
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | DRAKE | Model Number: | QS2-08" |
| Power: | Pneumatic | Number of Jaws: | 2 |
Product Description
QS2-8 Air Operated 8inch Clamp Power Chuck Lathe (built-in with cylinder)
Technical features:
1. The chuck is a built-in cylinder with large clamping force, good sealing, high
precision, safety and reliability, nice economical and pracitical applicability
and long service life, and it can clamp siphon, three-way.
2. Applicable to all kinds of CNC lathes.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec. | D | D1 | D2 | H | H1 | h | P | z-d |
| QS2-04" | 115 | 72 | 100 | 96 | 72 | 3 | 16 | 3-M8 |
| QS2-05" | 135 | 95 | 108 | 118 | 85 | 4 | 18 | 3-M8 |
| QS2-06" | 172 | 130 | 142 | 130 | 93 | 4 | 20 | 3-M8 |
| QS2-08" | 208 | 165 | 180 | 136 | 100 | 5 | 25 | 3-M10 |
| QS2-10" | 252 | 206 | 226 | 143 | 102 | 5 | 30 | 3-M10 |
| QS2-12" | 322 | 270 | 290 | 160 | 115 | 6 | 30 | 6-M12 |
| QS2-15" | 400 | 340 | 368 | 168 | 118 | 6 | 43 | 6-M16 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
Model/Spec. | Jaw Stroke (Diameter) (mm) | Maximum static clamping force(kgf) | Maximum static holding force(kgf) |
Permissible pressure(mm) | Limit speed (r/min) | Clamping range | Holding range | Net weight (Kg) |
| QS2-04" | 3.2 | 2040 | 1170 | 0.4-0.8 | 4500 | 2-120 | 15-120 | 4.8 |
| QS2-05" | 3.7 | 2856 | 1836 | 0.4-0.8 | 4000 | 3-140 | 15-140 | 7.6 |
| QS2-06" | 4.2 | 4896 | 2652 | 0.4-0.8 | 3600 | 4-180 | 20-180 | 13 |
| QS2-08" | 5 | 7140 | 4284 | 0.4-0.8 | 3300 | 5-215 | 20-240 | 21 |
| QS2-10" | 6.5 | 9282 | 6120 | 0.4-0.8 | 3000 | 10-260 | 30-280 | 33 |
| QS2-12" | 8.5 | 14076 | 9480 | 0.4-0.8 | 2500 | 10-350 | 40-360 | 66.5 |
| QS2-15" | 12 | 19788 | 15096 | 0.4-0.8 | 2000 | 20-420 | 60-440 | 112 |
| No. | Name | No. | Name |
| 1 | Hose fitting M6 | 9 | cket head bolt |
| 2 | cket head bolt | 10 | Grease nipple |
| 3 | Body | 11 | Center fixed cap |
| 4 | O-type sealing ring | 12 | Center fixed cap connection screw |
| 5 | Cylinder O-type sealing ring | 13 | Soft jaw |
| 6 | Plunger | 14 | Soft jaw connection screw |
| 7 | Cover plate | 15 | Master jaw |
| 8 | Cover plate O-type sealing ring | 16 | Y-type sealing ring |
The matching products including:
1. Soft jaws.
2. Oil-water separator, manual solenoid valve.
3. Air hose, foot-switch, Hex. socket head bolt, axle sleeve.
4. Pneumatic controller.
