Standard Two Jaw Box Chuck Air Spider Built in with Cylinder

FOB Price

USD $752.32 - $2,561.21 / Set

1 Set(Min.Order)

Supply Ability 12780 Set / Sets per Month
Port SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	DRAKE	Model Number:	QS2-04"
Power:	Pneumatic	Number of Jaws:	2

Product Description

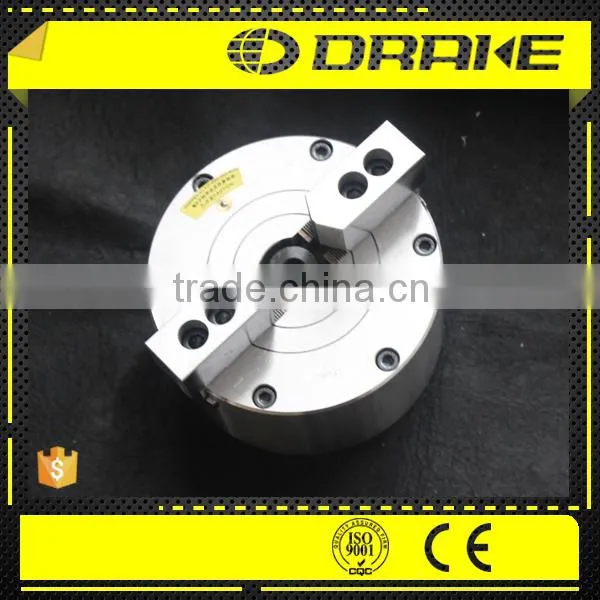

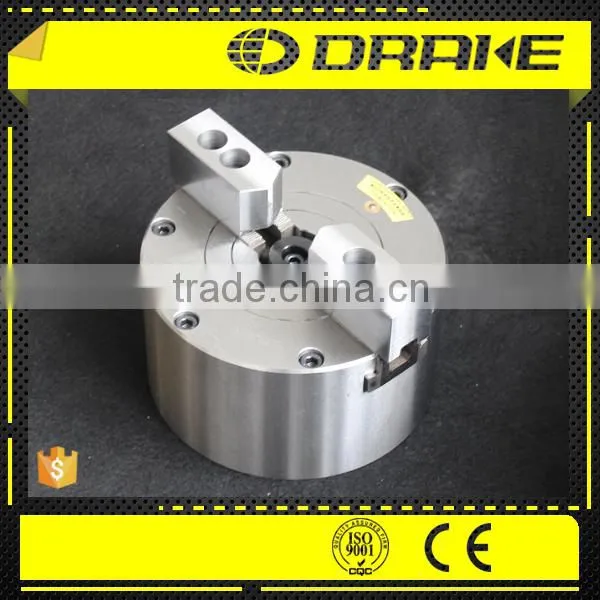

Standard Two Jaw Box Chuck Air Spider Built in with Cylinder

Product Description

Technical features:

1. The chuck is a built-in cylinder with large clamping force, good sealing, high

precision, safety and reliability, nice economical and pracitical applicability

and long service life, and it can clamp siphon, three-way.

2. Applicable to all kinds of CNC lathes.

Parameters

There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

Size Parameters

Model/Spec.	D	D1	D2	H	H1	h	P	z-d
QS2-04"	115	72	100	96	72	3	16	3-M8
QS2-05"	135	95	108	118	85	4	18	3-M8
QS2-06"	172	130	142	130	93	4	20	3-M8
QS2-08"	208	165	180	136	100	5	25	3-M10
QS2-10"	252	206	226	143	102	5	30	3-M10
QS2-12"	322	270	290	160	115	6	30	6-M12
QS2-15"	400	340	368	168	118	6	43	6-M16

It is recommended to grease chucks at least twice a day in order to maximize longevity

Performance Parameters

Model/Spec.	Jaw Stroke (Diameter) (mm)	Maximum static clamping force(kgf)	Maximum static holding force(kgf)	Permissible pressure(mm)	Limit speed (r/min)	Clamping range	Holding range	Net weight (Kg)
QS2-04"	3.2	2040	1170	0.4-0.8	4500	2-120	15-120	4.8
QS2-05"	3.7	2856	1836	0.4-0.8	4000	3-140	15-140	7.6
QS2-06"	4.2	4896	2652	0.4-0.8	3600	4-180	20-180	13
QS2-08"	5	7140	4284	0.4-0.8	3300	5-215	20-240	21
QS2-10"	6.5	9282	6120	0.4-0.8	3000	10-260	30-280	33
QS2-12"	8.5	14076	9480	0.4-0.8	2500	10-350	40-360	66.5
QS2-15"	12	19788	15096	0.4-0.8	2000	20-420	60-440	112

No.	Name	No.	Name
1	Hose fitting M6	9	cket head bolt
2	cket head bolt	10	Grease nipple
3	Body	11	Center fixed cap
4	O-type sealing ring	12	Center fixed cap connection screw
5	Cylinder O-type sealing ring	13	Soft jaw
6	Plunger	14	Soft jaw connection screw
7	Cover plate	15	Master jaw
8	Cover plate O-type sealing ring	16	Y-type sealing ring

Matching products

The matching products including:

1. Soft jaws.

2. Oil-water separator, manual solenoid valve.

3. Air hose, foot-switch, Hex. socket head bolt, axle sleeve.

4. Pneumatic controller.
