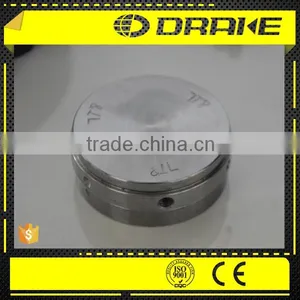

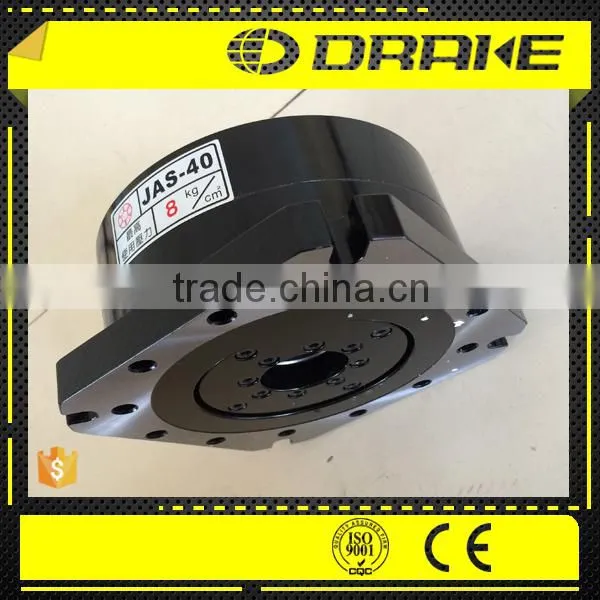

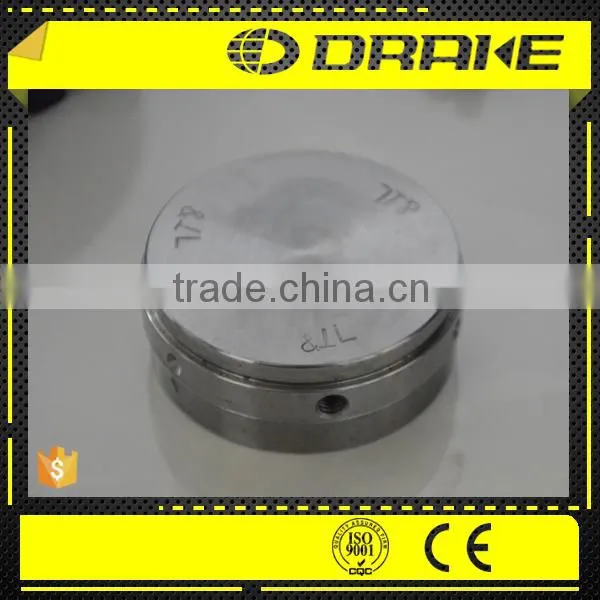

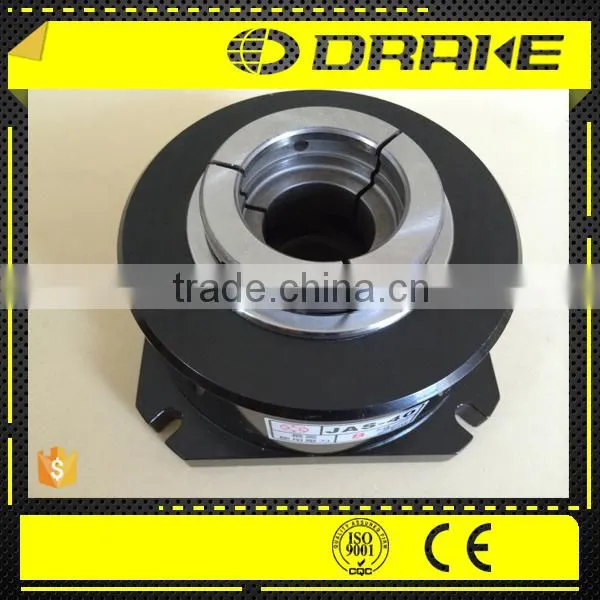

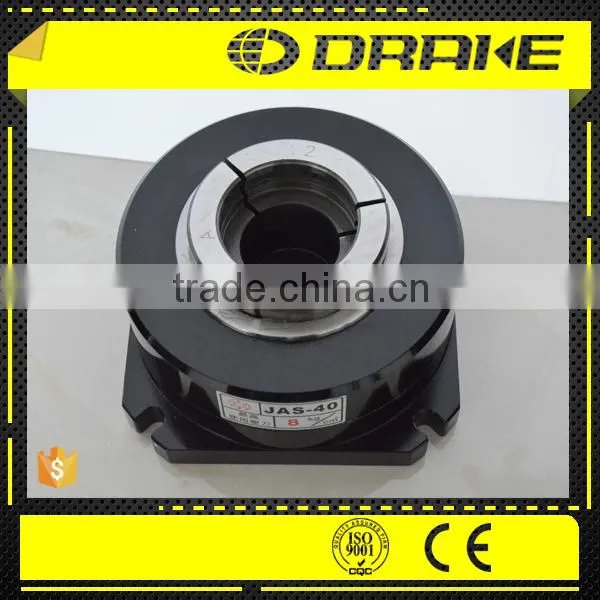

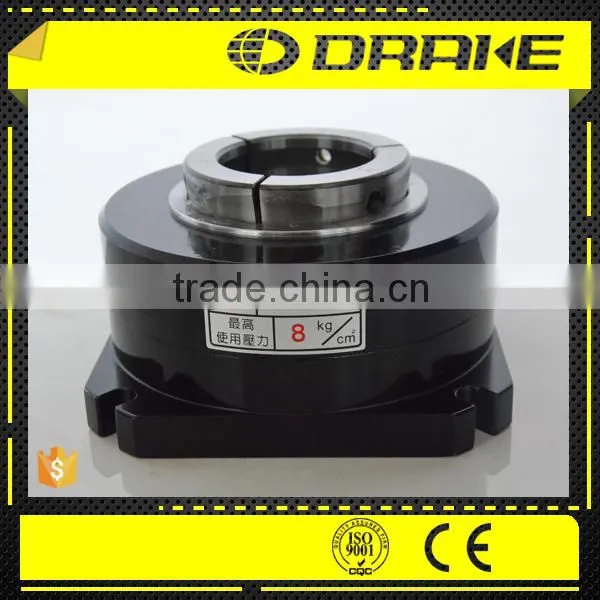

JAS air powered open-center pneumatic Stationary Collet Chucks for turret type cnc lathe machine

FOB Price

USD $782.26 - $2,501.21 / Set

1 Set(Min.Order)

Supply Ability 12090 Set / Sets per Month
Port SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	IVY pneumatic collet chucks
Model Number	JAS-40 pneumatic collet chuck	Power	Pneumatic
Number of Jaws	Other

Product Description

JAS air powered open-center pneumatic Stationary Collet Chucks for turret type cnc lathe machine

Product Description

Technical features:

1. Aluminum alloy, light weight, good heat dissipation, effectively reduce the temperature.

2. Built-in cylinder.

3. Clamping precision: 0.03-0.05mm

4. Can easily replace the vice jaws to improve accuracy

5. Simple structure, high efficiency, low cost, convenient installation.

6. Lever or Foot Pedal Actuated.

7. Low Maintenance with Oil Mist Lubrication System

Parameters

There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

Size Parameters

Model/Spec	A	B	C	D	E	F	G	H
JAS-15"	118	40	14	90	76	64	98.3	9
JAS-25"	144	60	26	100	108	75	115.3	9
JAS-40"	168	110	40	100	98	77	136.5	11

It is recommended to grease chucks at least twice a day in order to maximize longevity

Performance Parameters

Model/Spec	Power source	Working pressure (kg/cm²)	Max. chuck diameter (mm)	Through-hole aperture	Clamping torque (kg-m)	Net weight (kg)
JAS-15"	Oil pressure	3~15kg	ø16	ø14	/	5
JAS-25"	Oil pressure	3~15kg	ø28	ø25	4kg-m	9
JAS-40"	Air compressor	3~7kg	ø50	ø38	6kg-m	12.2

No.	Name	No.	Name
1	Vice jaw	5	Block
2	Collet	6	Body
3	Hex. socket screw	7	Fixed nut
4	Sleeve

Matching products

The matching products including:

1. Connecting bolt

2. Vice jaw

3. Collet
