5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity)

5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) thumbnail-1
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) thumbnail-2
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) thumbnail-3
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) thumbnail-4
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) thumbnail-5
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) thumbnail-6
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) photo-1
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) photo-2
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) photo-3
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) photo-4
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) photo-5
5KW Off Grid Hybrid Solar Wind Power System(Use Wind and Solar Power Take the Home Load ,free Electricity) photo-6
US$ 3,000 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Greentechy
Model Number:
GT-wind/solar 5kw hybrid system
Contact Supplier Request Quote Chat Now
Foshan Greentechy Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Greentechy
Model Number GT-wind/solar 5kw hybrid system
Specification Normal
Application Home
Output Voltage (V) 110V 120V 230V 240V
Load Power (W) 2KW +3KW
Solar Power (W) 2KW +3KW
Work Time (h) 24hours

Specifications

wind and solar life time more than 20 years ;
High frequency system supply
2KW wind turbine+ 3kw solar system

2KW  wind turbine + 3KW solar system, Off Grid Hybrid Solar Wind Power System(Use Wind and solar power take the home load ,free electricity)





Greentechy(China) Industrial Co.,Ltd is specialized in manufacturing and selling solar power system product, wind power system product, solar &wind hybrid system, solar street light system.

For solar system mostly use for household power supply, have main charger when non-sunshine. very useful system. Pure sine wave output, can take all inductive loads. Product sales to (France,USA,Canada,Pakistan,Indonesia,UAE,Bangladesh,

Philippines,Greece,Iran,Kuwait,Iraq,Bulgaria,Roumania,South Africa ect)

 5KW Off Grid Hybrid Solar Wind Power System(Use Wind and solar power take the home load ,free electricity)



solar and wind hybrid system  specifiction



5KW Solar and Wind hybrid power system




MODEL

PACKING SIZE(MM)

WEIGHT(KG)

QTY(PCS)

Remarks

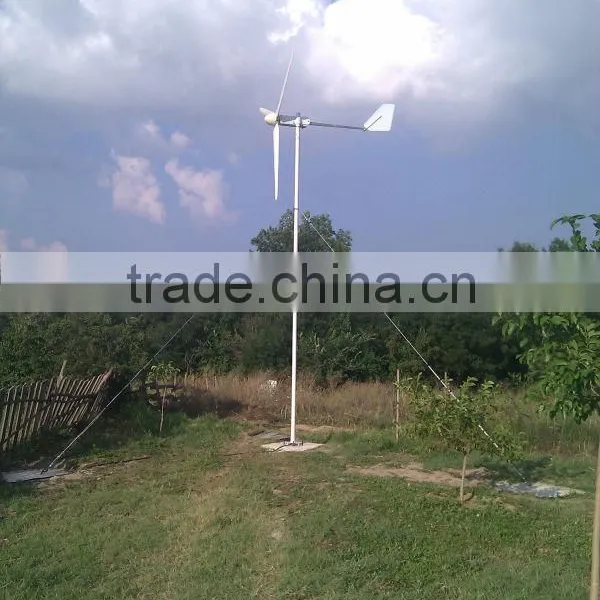

2KW/96VDC Wind generator           [Permanent-magnet -3phase A.C. Aluminum Alloy material]

1660*520*360mm

172 KGS

1

Notes:

1.pictures shown are for reference;

2.power consumption data is based on areas with average wind speed of 4.5m/s and average daily peak power sunshine of 4hrs.

3.the battery capacity is designed for 2 days backup in non-sunshine and windless weather

lar panel racks and cables are not included












2KW/96VDC blades, 3pcs[4.0m reinforced FPR,(blade),(wheel hub & press board), (dome)]











Guy cable tower[Height 6m,Galvanized seamless steel pipe surface, then spray antiseptic white paint]

3000*89*89mm

60 KGS

1

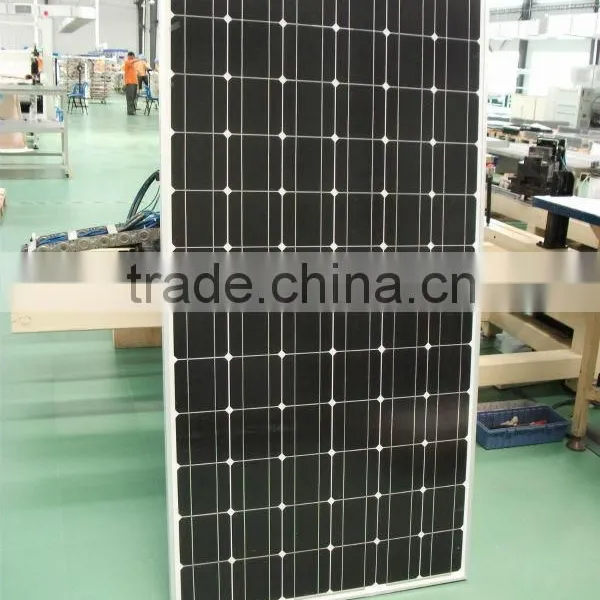

200W/36V Mono solar panel

1598*838*88mm/CTN, 2pcs/ctn

33KGS/CTN(2pcs/ctn)

15









5KW/96VDC off-grid solar inverter (LCD display,indoor,DC input 96V,AC output 220V/50HZ ,without the lightning protection,can be made with AC section)

555*345*530mm/CTN

35 KGS

1

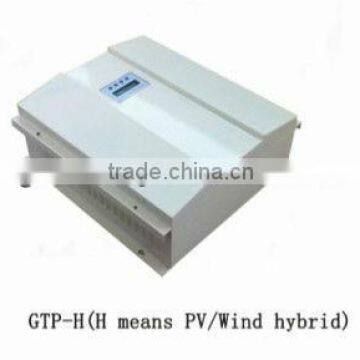

5KW/96VDC Wind and solar hybrid controller

master device package size: 500*300*300mm, dump load box package size: 750*450*260mm

master device weight: 9kgs, dump-load box weight: 19.5kgs

1

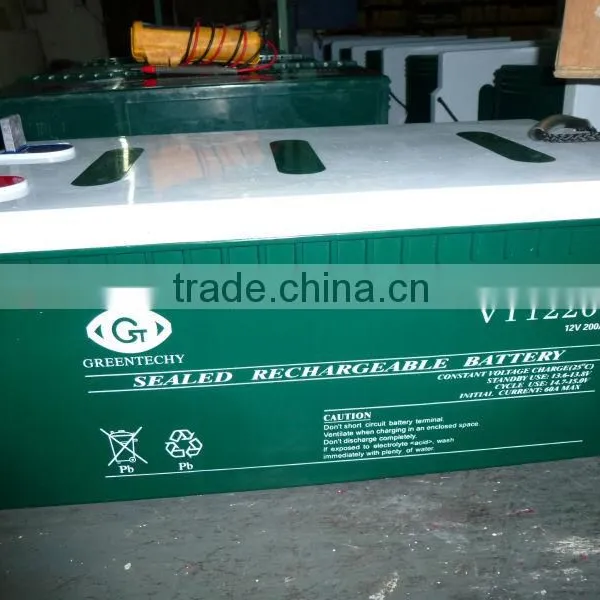

12V200AH Gel battery(green shell)

522*240*218mm/CTN

64 KGS/PC

8





5kw  off-grid wind  and solar hybrid system





Solar & wind hybrid systems product mainly use for home ,street lights system,both of them are Economic, Green and Environmentally Friendly .

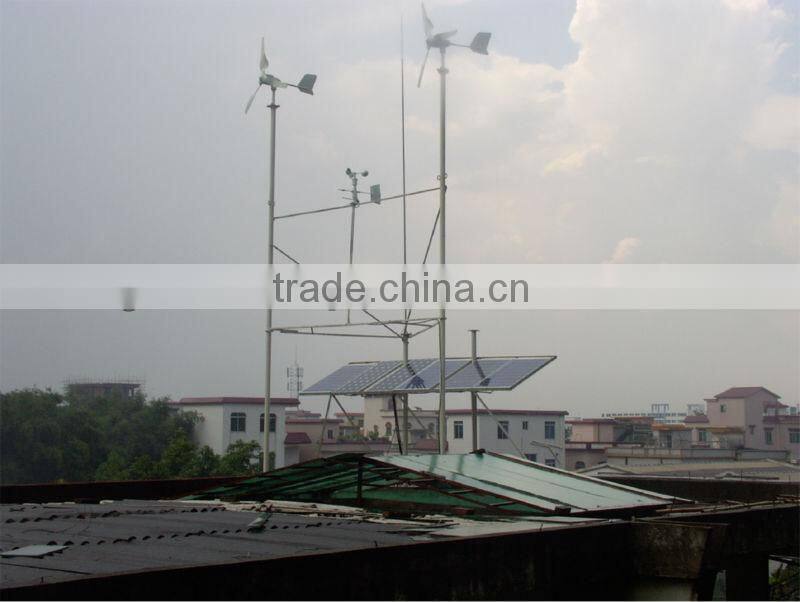

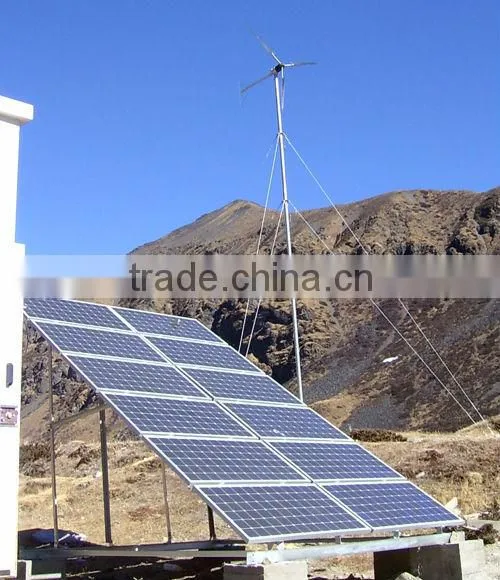

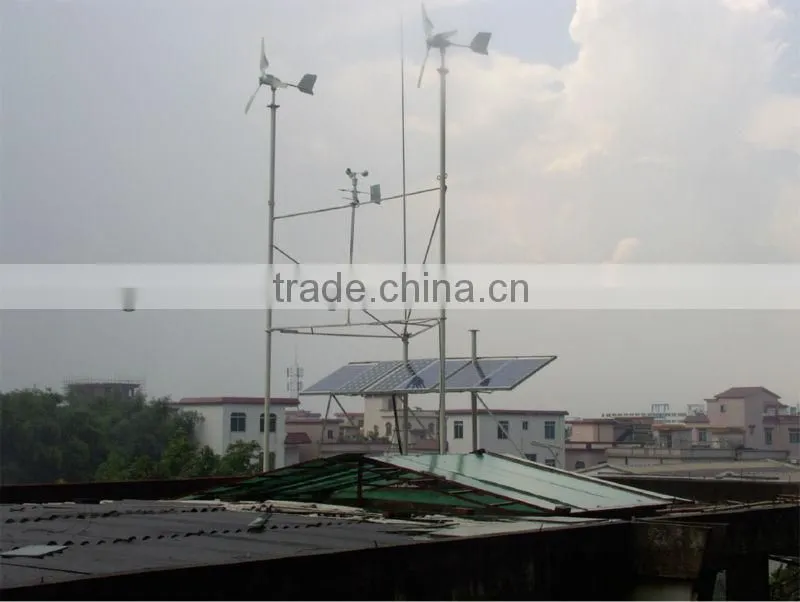

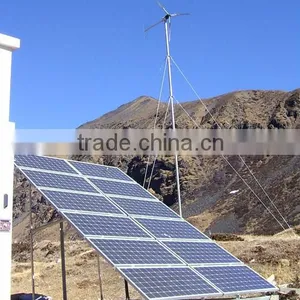

At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.



wind turbine :3pcs or 5pcs blades optional; guy cable tower or free stand tower optional;



solar panel :mono or poly panel optional; battery capacity and quantity can be optional;







 Question: What can be included for this system?

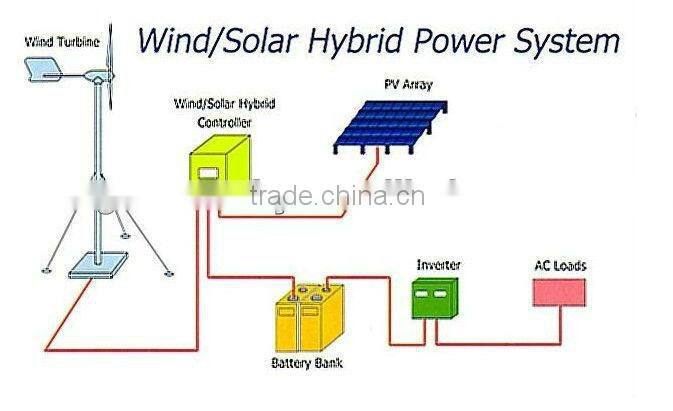

Answer: This system includes:solar panels,wind turbine(wind generator+blades+tower),wind and solar hybrid controller,inverter,battery,solar pv cable,bracket,and disconnectors.







 Question: What's the advantage for this hybrid system?



 Answer: 1.Steady operating.



                  2.The most advantage:On grid energy backup(not means sell electricity,just backup)



                  3.Make the utmost of nature resource of wind and sun.



                  4.Easy installation according to our instructions.



                  fessional parts supply







 Question:  How about the lifetime?



 Answer: The life time for solar panel is 25years,wind turbine is 20years,another parts is from 6-15years



5KW Off Grid Hybrid Solar Wind Power System(Use Wind and solar power take the home load ,free electricity)



We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours
