Specifications
LED & PV street/ourdoor lightingmono solar panel, VRLA battery
10-12 hours working model
complete system available

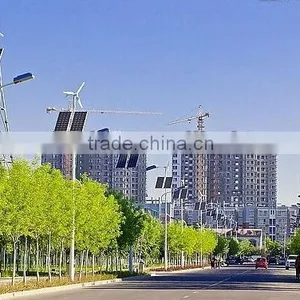

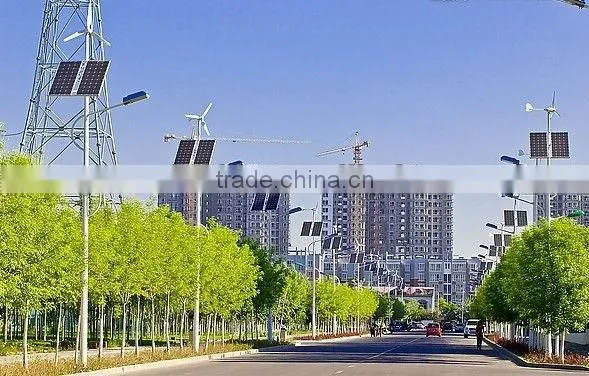

Items | Solar street light system |
Solar panel | Mono crystalline silicon power: 100Wp*4pcs (100w mono panel efficiency: 18.4%) |
Battery | High efficiency, SRS specially design for solar application GEL battery, 12V 200Ah*2 |
Controller | 24V 20A, LED indicator, IP21, over charge , discharge protection, temperature compensation and so on |
Solar panel bracket | 4×1.2CM angle Iron, hot dip galvanized type, plastic-coating / painting. |
Pole | 10m, high carbon steel, hot dip galvanized type, plastic-coating / painting. |
Lighting source | 100W LED lamp, Super Bright LED,110Lm/W, can form 4:1 rectangular shape lighting distribution without Lens or with 120°Beam angle. The central brightness is up to 45LUX. |
cable | 2.5mm2×2, SRS specially design for solar application, silicon rubber with purple copper cable. |
cabinet | Contain battery and controller, installed in the ground |
packing | Cartons / MDF (Middle Density Fiberboard) |
Working mode | about 10-12 hrs |
Reliability | Guarantee 100% lighting throughout the year |
Ambient temperature | -20°C to 60°C |
How to Install Solar Street Light and Some Tips Help You Fix it Better
Solar Street light is solar energy as a power providing night lighting, high efficiency illumination optical design, high brightness, easy installation, stable and reliable, no need of laying of cables, no consumption of conventional energy, long life. And it seems to be the best Light source Solar Street Light is mainly used urban roads, district roads, industrial parks, landscape lighting, scenic tour, parks, gardens, green belt, square, pedestrian street, fitness and recreation places such as Plaza lighting and decorative lighting.
Tip for installation:
1 Before construction, the area should be equipped with a good installation base of and with the relevant installation conditions;
2 Product should be installed without tall buildings, trees blocking the light;
3 Charge full before the first time to use;
4 Load of daily working hours should be confirmed to manufacturers in product factory programming;
5 The installation and construction should be under the guidance of the professional.
So next time, when installing solar street lights, remember to read these tips, they will help you fix the lights and improve your efficiency.
Greentechy(China) Industrial Co.,Ltd: professional for Solar system, wind turbine system, solar street LED lights system, wind/solar hybrid system! Welcome to talk details with us!!!
