Specifications
LED & PV street/ourdoor lightingmono solar panel, VRLA battery
10-12 hours working model
complete system available
Items | Solar street light system |
Solar panel | Mono crystalline silicon power: 100Wp*4pcs (100w mono panel efficiency: 18.4%) |
Battery | High efficiency, SRS specially design for solar application GEL battery, 12V 200Ah*2 |
Controller | 24V 20A, LED indicator, IP21, over charge , discharge protection, temperature compensation and so on |
Solar panel bracket | 4×1.2CM angle Iron, hot dip galvanized type, plastic-coating / painting. |

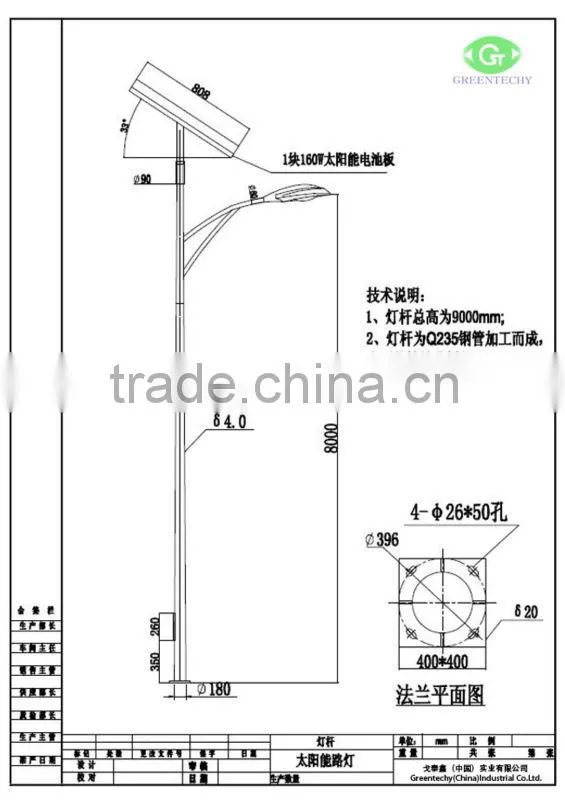

Pole | 10m, high carbon steel, hot dip galvanized type, plastic-coating / painting. |
Lighting source | 100W LED lamp, Super Bright LED,110Lm/W, can form 4:1 rectangular shape lighting distribution without Lens or with 120°Beam angle. The central brightness is up to 45LUX. |
cable | 2.5mm2×2, SRS specially design for solar application, silicon rubber with purple copper cable. |
cabinet | Contain battery and controller, installed in the ground |
packing | Cartons / MDF (Middle Density Fiberboard) |
Working mode | about 10-12 hrs |
Reliability | Guarantee 100% lighting throughout the year |
Ambient temperature | -20°C to 60°C |
How to Install Solar Street Light and Some Tips Help You Fix it Better
Solar Street light is solar energy as a power providing night lighting, high efficiency illumination optical design, high brightness, easy installation, stable and reliable, no need of laying of cables, no consumption of conventional energy, long life. And it seems to be the best Light source Solar Street Light is mainly used urban roads, district roads, industrial parks, landscape lighting, scenic tour, parks, gardens, green belt, square, pedestrian street, fitness and recreation places such as Plaza lighting and decorative lighting.
Tip for installation:
1 Before construction, the area should be equipped with a good installation base of and with the relevant installation conditions;
2 Product should be installed without tall buildings, trees blocking the light;
3 Charge full before the first time to use;
4 Load of daily working hours should be confirmed to manufacturers in product factory programming;
5 The installation and construction should be under the guidance of the professional.
So next time, when installing solar street lights, remember to read these tips, they will help you fix the lights and improve your efficiency.

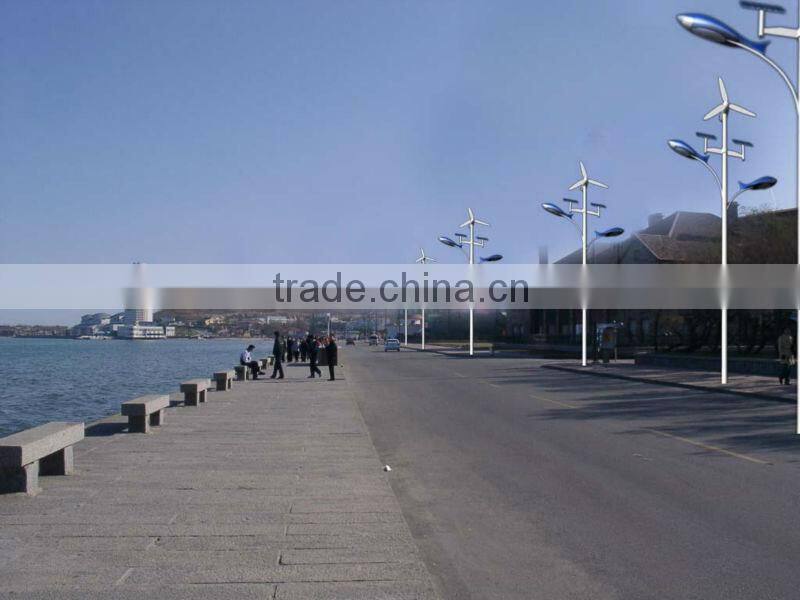

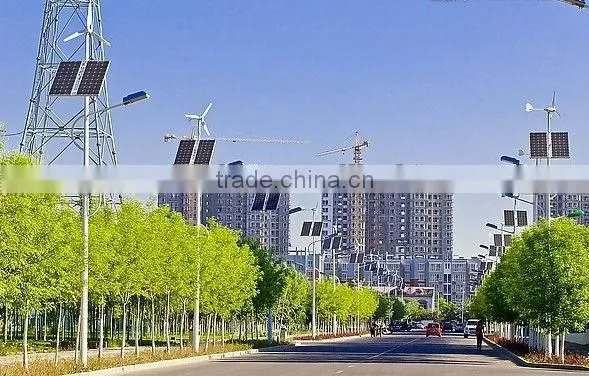

100W LED Wind Solar Street Light
Features of wind solar street light:
Two lighting systems are designed into one combined system, if some days there is sunlight but no wind energy, the solar panel charges the battery. Similarly if some days there is wind energy but no sunlight, the wind turbine can power the battery. If both wind & solar energy is enough, both can charge the battery. The wind turbine continues to work around the clock supplying energy for the system.
The street light has been designed to maximize efficient use of the energy generated using a energy-saving luminaries which is switched automatically by a light sensor.
It is intended for permanent installations and can be located in the remotest of sites since no mains services are required saving on installation costs, inconvenience and time. Whole system is virtually maintenance free and there are NO daily running costs the power is completely free and clean
Advantage of wind solar hybrid street light (LED solar wind street lamp )
A. Generating power day and night
B. Balance seasonal power output difference of wind and solar
C. Independent system, no city grid cable needed
D. Longer battery life
E. Easy installation, simple operation, applicable in majority of roads
F. Intelligent lighting control system, maintenance free
Major Applications
A. Highway
B. City main road
C. School campus road
D. Sidewalk
E. Pathway
F. Farm & ranches lighting
G. Villa lighting
H. Landscape lighting - park, square etc.
System Design
Greentechy(China) Industrial Co.,Ltd has various kind of wind-solar hybrid lighting system designed for various load capacity and natural resources condition, the hybrid system requires precise calculation and design according to application, street road condition, terrain etc. Otherwise the system will have problem such as inefficient lighting, complete no power in raining season or even safety issue. Please send us your load capacity and application range via email, we will quote you with a clear custom designed solution accordingly.
Technical Support & Services
A. Custom design - base on light source load, lighting hours, site wind & solar resources condition
B. Detailed installation guide or optional on-site technician guidance
C. Remote system operation monitoring - operating stage
D. Warranty on major parts - warranty & replacement
Standard Solution
For your reference, please send enquiry to us directly, we will design the whole system accordingly. - The best quality wind solar street lighting system is always the most fitable design and also good quality parts! ! !
Greentechy(China) Industrial Co.,Ltd: professional for Solar system, wind turbine system, solar street LED lights system, wind/solar hybrid system! Welcome to talk details with us!!!
