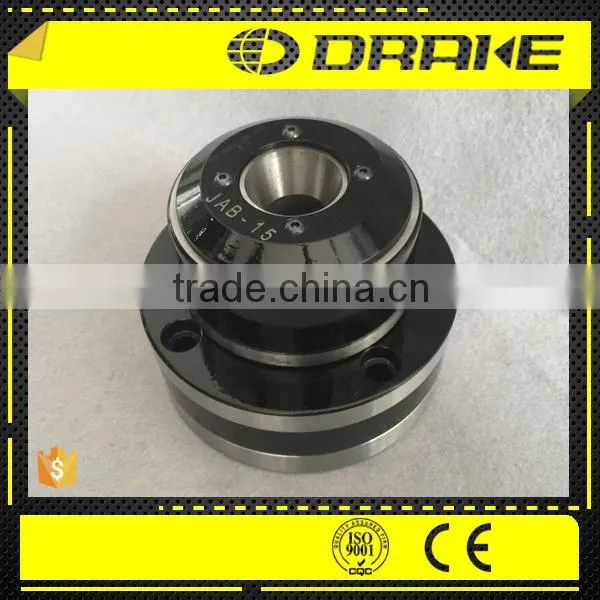

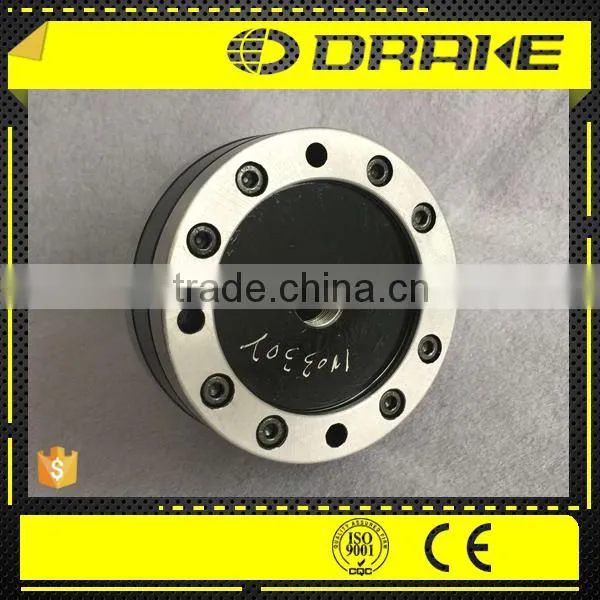

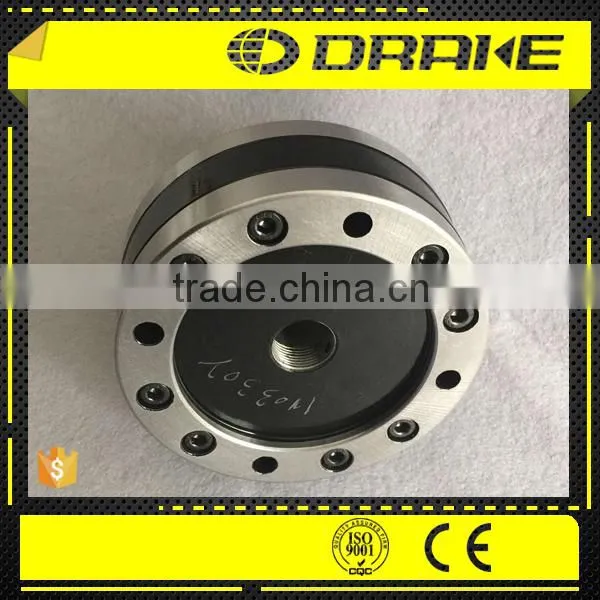

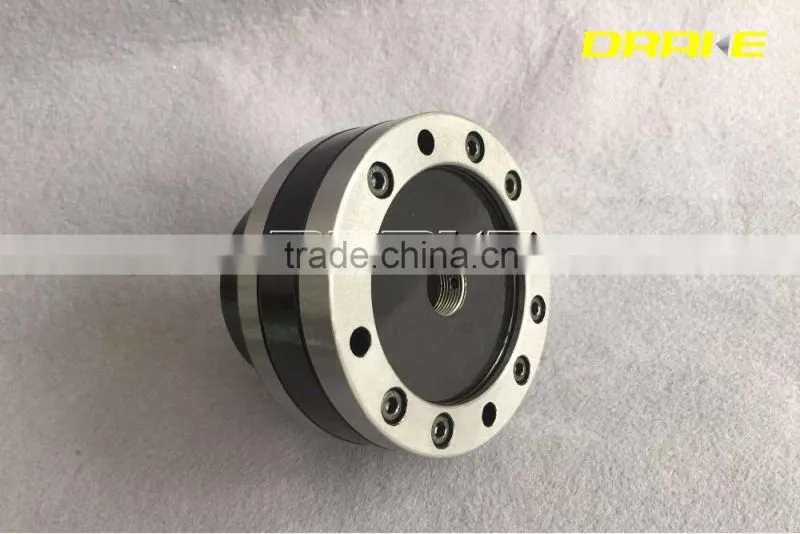

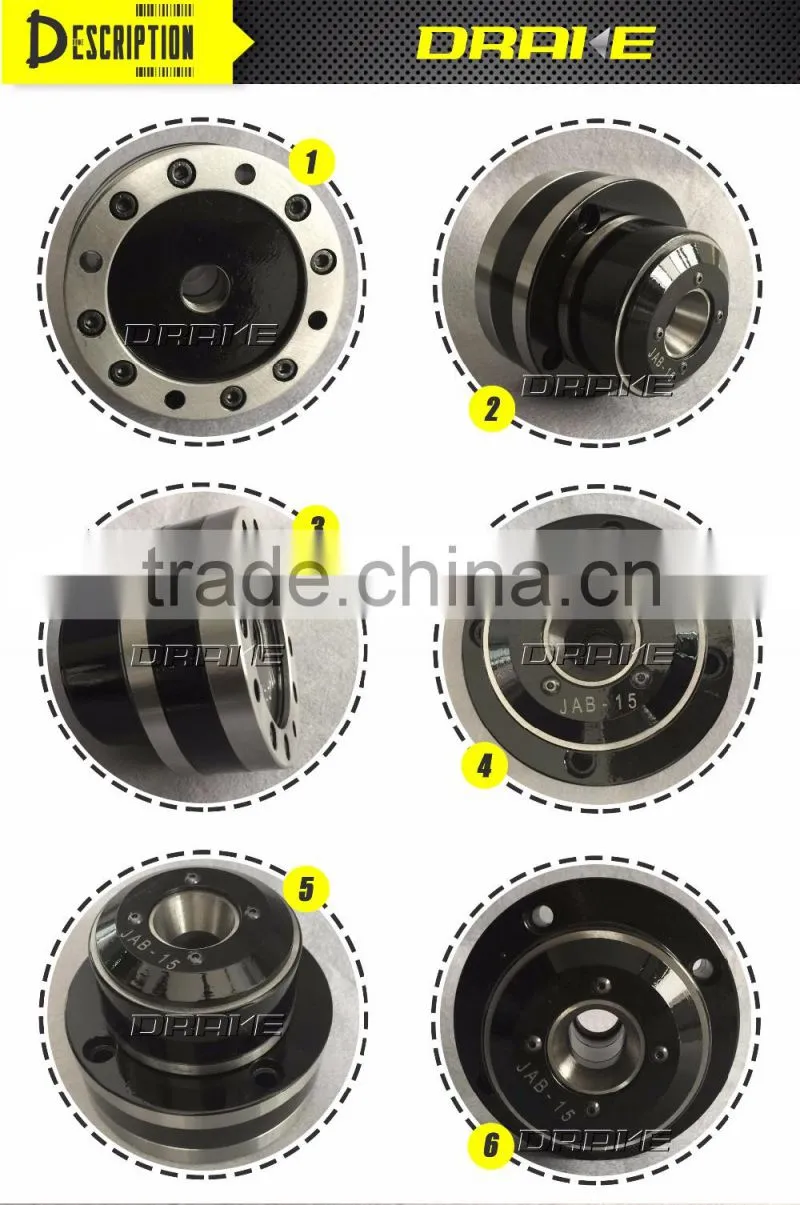

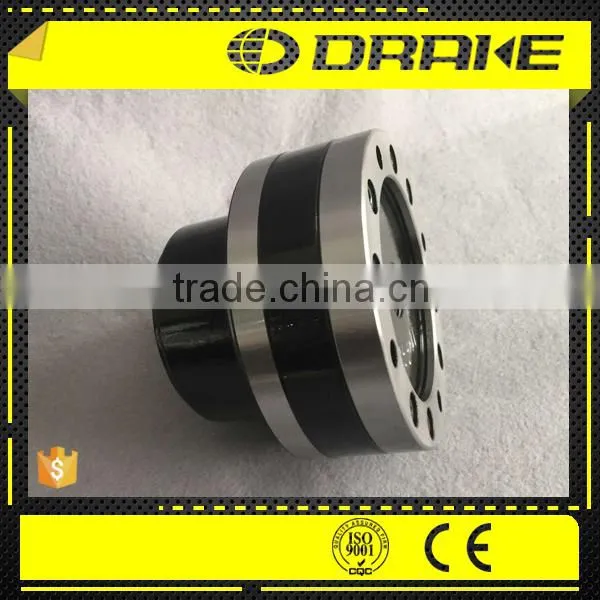

JAB High speed rotary air Dead Length pneumatic power Collet Chucks
Technical features:
1. The collet chuck has the two configuration of inside expansion and outside clamp.
2. When the pressure is interrupted, the chuck clamping is at state.
3. Can be mounted on the front end, in order to reduce the connection plate thickness.
4. The collet dosn't retract,therefore the working length can be normally controled.
5. Its accuracy is within 0.01mm.
6. Easily Convert any Lathe or Grinder into a Production Machine.
7. Change from Collet Chuck to Standard Chuck Quick and Easy.
8. Lever or Foot Pedal Actuated.
9. Low Maintenance with Oil Mist Lubrication System
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A |
B |
C (H6) |
D | E |
F | G |
H |
J |
| JAB-15 | 135 | 100 | 26 | 4 | 105 | 45 | 68 | 115 | 74 |
| JAB-25 | 192 | 155 | 46 | 5 | 125 | 65 | 95 | 172 | 74 |
| JAB-40 | 192 | 155 | 69 | 5 | 139 | 105 | 126 | 172 | 89 |
| JAB-60 | 230 | 190 | 89 | 6 | 110 | 105 | 136 | 210 | 96 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec |
Max. speed (rpm) |
Pison stroke (mm) |
Clamping torque (kg/cm²) |
Working pressure (kg/cm²) |
Max. chuck diameter (mm) |
Net weight (kg) |
| JAB-15 | 4000 | 4 | 3 | 3-8 | Ø15 | 3.2 |
| JAB-25 | 4000 | 4 | 3 | 3-8 | Ø25 | 9.5 |
| JAB-40 | 4000 | 4 | 4.5 | 3-8 | Ø40 | 13.5 |
| JAB-60 | 4000 | 4 | 7.8 | 3-8 | Ø60 | 20.35 |

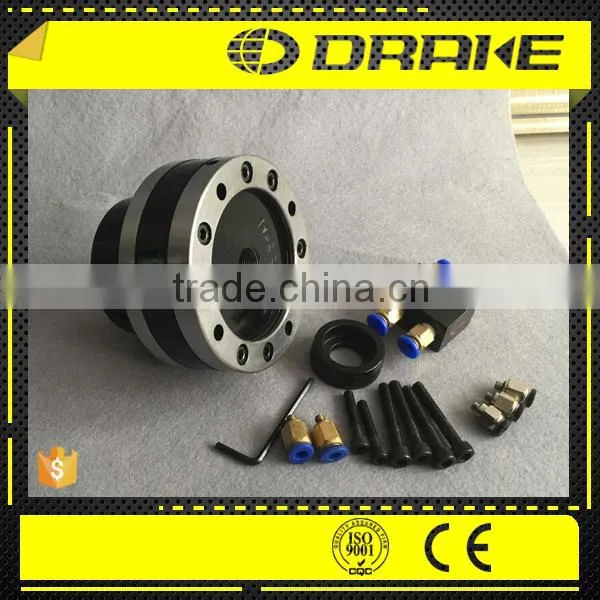

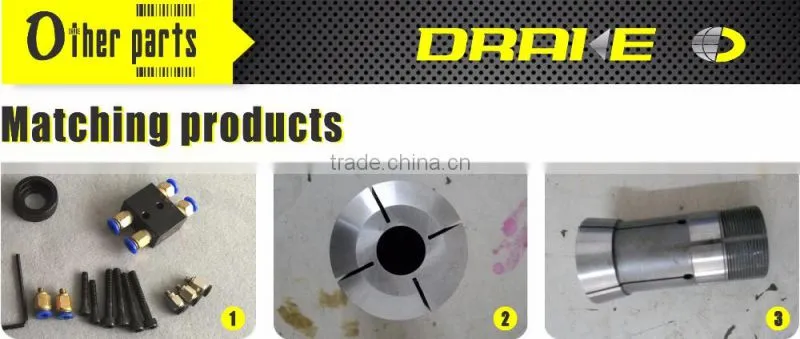

The matching products including:
1. Connecting bolt, quick coupling
2. Collets
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
