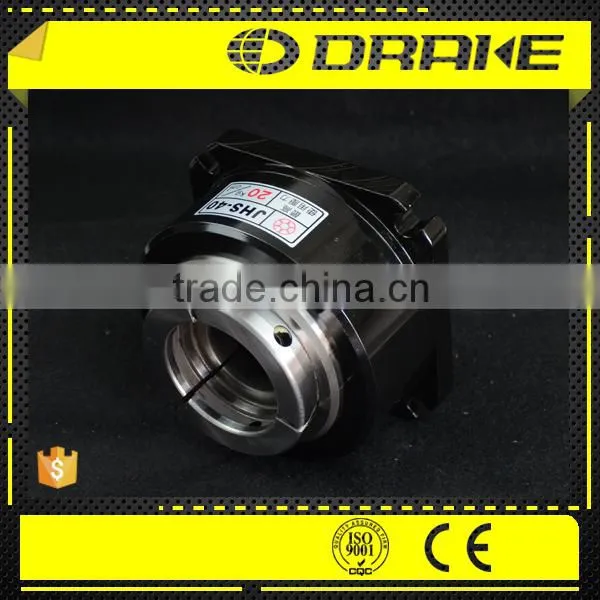

JHS open-center high speed Stationary hydraulic power Collet Chuck for machinery rotary working table

FOB Price

US$ 762.42 - 2,501.53 / Set

1 Set(Min. Order)

Port SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	IVY hydraulic collet chucks
Model Number	JHS-40 hydraulic collet chuck	Power	Hydraulic
Number of Jaws	Other, Jaw pad

Product Description

JHS open-center high speed Stationary hydraulic power Collet Chuck for machinery rotary working table

Product Description

Technical features:

1. Aluminum alloy, light weight, good heat dissipation, effectively reduce the

temperature.

2. Powered by Hydraulic.

3. Clamping precision: 0.03-0.05mm

4. Can easily replace the vice jaws to improve accuracy

5. Simple structure, high efficiency, low cost, convenient installation.

6. Lever or Foot Pedal Actuated.

7. Low Maintenance with Oil Mist Lubrication System

Parameters

There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

Size Parameters

Model/Spec	A	B	C	D	E	F	G	H
JHS-40"	144	95	38	100	96	73	115.3	11
JHS-70"	188	135	69	155	94	73	146.4	11
JHS-90"	260	135	87	170	95	73	169.7	13

It is recommended to grease chucks at least twice a day in order to maximize longevity

Performance Parameters

Model/Spec	Working pressure (kg/cm²)	Max. chuck diameter (mm)	Through-hole aperture	Clamping torque (kg-m)	Net weight (kg)
JHS-40"	20	ø50	38	15kg-m	8.5
JHS-70"	20	ø90	68	18kg-m	13.1
JHS-90"	18	ø90	87	15kg-m	15.5

Matching products

The matching products including:

1. Connecting bolt

2. Jaw pad

3. Collet
