Specifications
Competitive price 5W to 300W mono poly solar panels1.High quality
2.Easy maintenance
3.25 years warranty

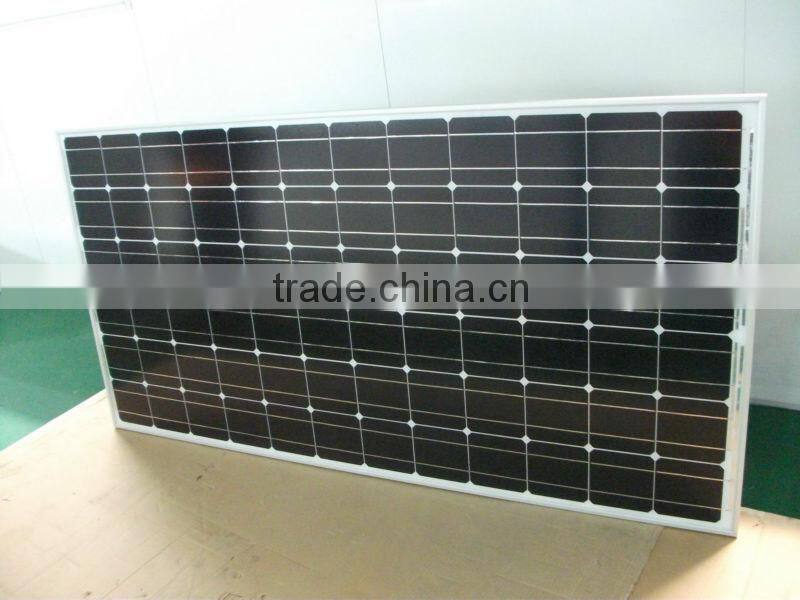

Competitive price 5W to 300W mono poly solar panels
Electrical Characteristics:200w(For other model, pls contact Vivian cheng to get more details or new prices of solar panel):
| MONO | 200W |
| Nominal peak power(Pmax) | 200Wp |
| Maximum power voltage(Vmp) | 37.4V |
| Maximum power current(Imp) | 5.35A |
| Short-circuit current(Isc) | 5.68A |
| Open circuit voltage(Voc) | 45.5V |
| Optimized cell efficiency(η) | 18.60% |
| Power tolerance: ±3% | |
| Limits | |
| Operating temperature | -40°C to +85°C |
| Maximum system voltage | 1000VDC |
| Temperature and Coefficients | |
| NOCT | 48°C±2°C |
| Number of cells and type of connection | 72,serial connection |
| Dimensions | Length:1580mm Width:808mm Height:35mm |
| Net weight | 14.80kgs/pc |
| Gross weight | 450kgs/ctn(28pcs/ctn) 33kgs/ctn(2pcs/ctn) |
| Package dimension | 1635x1140x956mm 1598x838x88mm |
| Container loading | 868PCS/40’GP 62PCS/PALLET 372PCS/20’GP 62PCS/PALLET |
| STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C | |
| Guaranteed Power Output Warranted Tolerance: ±5% | 15 year:90% of its nominal power rating |
| 25 year:80% of its nominal power rating | |
| Impact Resistance | Can bear the force that is generated by one 227g steel ball fall down from 1m height |
| Warranty period | 10 years:Materials and workmanship defects |
| Certificates | CE,ISO,IEC61215&61730(TUV),UL1703/CSA,MCS |
| Cells | Monocrystalline silicon photovoltaic cell |
Features:
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Rigorous quality control to meet highest international standards.
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4. Unique frame design, high mechanical strength, and easy Installation.
5. Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditions
Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications
Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
4.5 years limited warranty on material and workmanship
5.10 years and 20 years limited warranty for minimum power output.
