Standard Hardened Jaw for Conventional Lathe Machine
US$ 285.57 - 653.28
MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
IVY pneumatic chucks hard jaws
Model Number:
HJ12 hard jaws (chuck jaw)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI GUANGZHOU DALIAN QINGDAO NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Standard Hard Top Jaw for Conventional Lathe MachineUS$ 252.28 - 615.62MOQ: 1 Pair -
Standard Soft Top Jaws for Automatic Gang Type Cnc LatheUS$ 39.28 - 53.72MOQ: 1 Pair
-
Standard Hardened Jaw for Automatic Gang Type Cnc LatheUS$ 285.52 - 653.26MOQ: 1 Pair
-
Standard Hard Top Jaw for Automatic Gang Type Cnc LatheUS$ 252.26 - 615.61MOQ: 1 Pair
-
Standard Soft Top Jaws for Car Wheel Making Cnc MachineUS$ 39.25 - 53.75MOQ: 1 Pair
Place of Origin
Jiangsu, China
Brand Name
IVY pneumatic chucks hard jaws
Model Number
HJ12 hard jaws (chuck jaw)
Power
Hydraulic
Number of Jaws
3

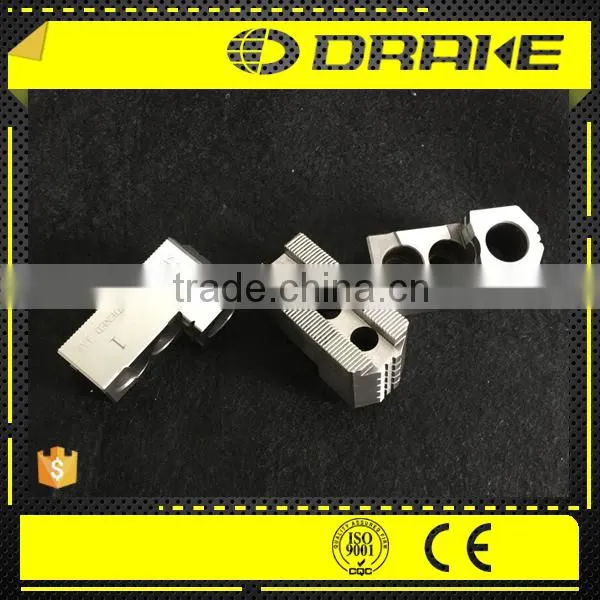

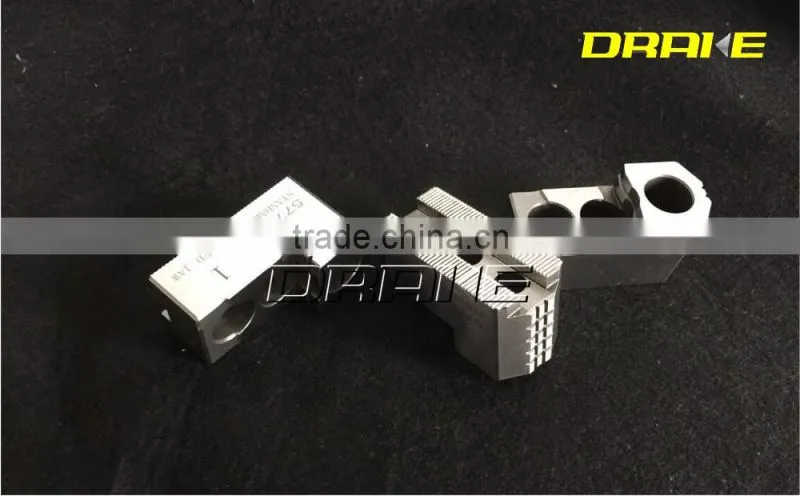

Standard hardened jaw for Conventional Lathe Machine
Product Description
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

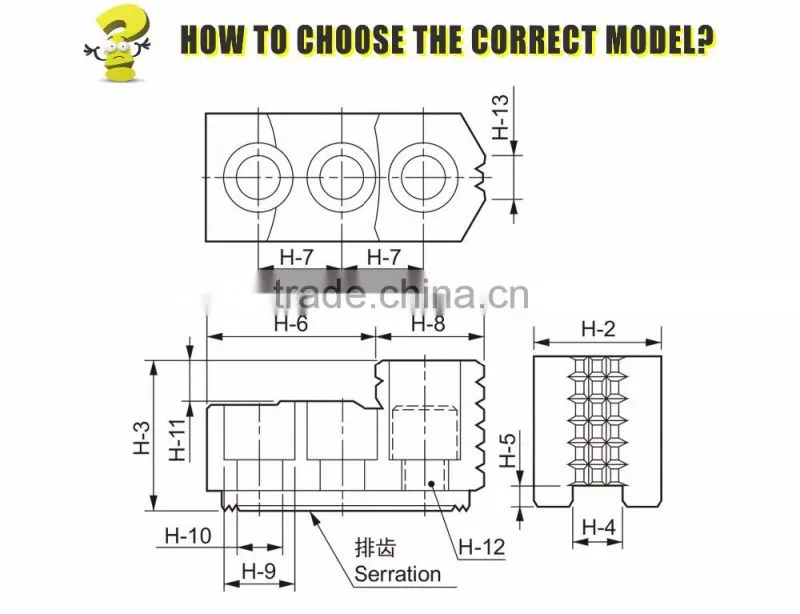

Size Parameters
| Model/Spec. | H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | H-10 | H-11 | H-12 | H13 |
Serration Pitch |
Reference Diagram |
3-jaw Weight |
| HJ05 | 53 | 23 | 27.5 | 10 | 4 | 30.5 | 14 | 22.5 | 13.5 | 8.5 | 10 | M8 | 6 | 1.5×60° | figure2 | 0.4 |
| HJ06 | 67 | 31 | 35 | 12 | 5 | 39.5 | 20 | 27.5 | 17 | 11 | 12 | M10 | 11 | 1.5×60° | figure2 | 1.0 |
| HJ08 | 86 | 35 | 51 | 14 | 5 | 31 | 25 | 18 | 19 | 13 | 12 | M12 | 12 | 1.5×60° | figure1 | 1.9 |
| HJ10 | 99.5 | 40 | 54 | 16 | 5 | 43 | 30 | 17 | 19 | 13 | 13 | M12 | 15 | 1.5×60° | figure1 | 2.9 |
| HJ12 | 103 | 50 | 52 | 21 | 4 | 62.5 | 30 | 40.5 | 25 | 17 | 17 | M16 | 30 | 1.5×60° | figure2 | 3.5 |
| HJ12-1 | 103 | 50 | 52 | 18 | 5 | 62.5 | 30 | 40.5 | 22 | 15 | 17 | M14 | 30 | 1.5×60° | figure2 | 3.6 |
| HJ15 | 149 | 62 | 86 | 22 | 8 | 63 | 43 | 34 | 32 | 21 | 20 | M20 | 40 | 1.5×60° | figure1 | 9.6 |
| HJ15-1 | 149 | 62 | 86 | 25.5 | 5 | 63 | 43 | 34 | 32 | 21 | 20 | M20 | 40 | 1.5×60° | figure1 | 9.5 |
| HJ24-1 | 159.5 | 80 | 90 | 25 | 9 | 104.5 | 50 | 55 | 32 | 21 | 40 | M20 | 55 | 3.5×60° | figure2 | 14.3 |
NOTE: We can provide all kinds of hard jaws
40Cr
| Chemical Elements(%) | Mechanical Property (Mpa) | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength | Yield Strength |
| 0.42~0.50 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | ≥600 | ≥355 |
Certifications

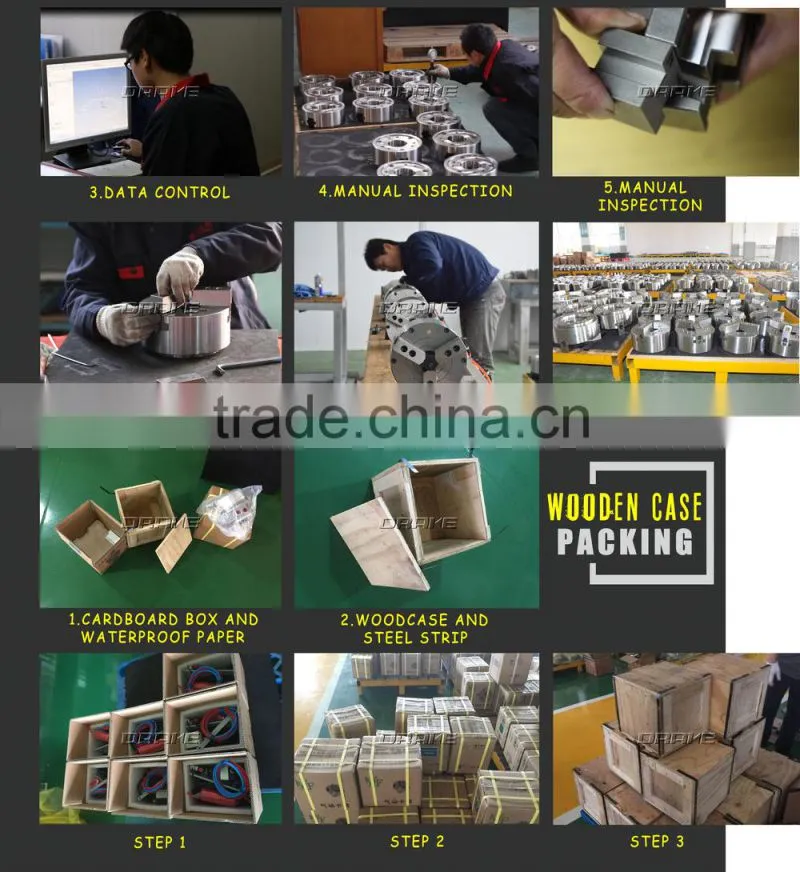

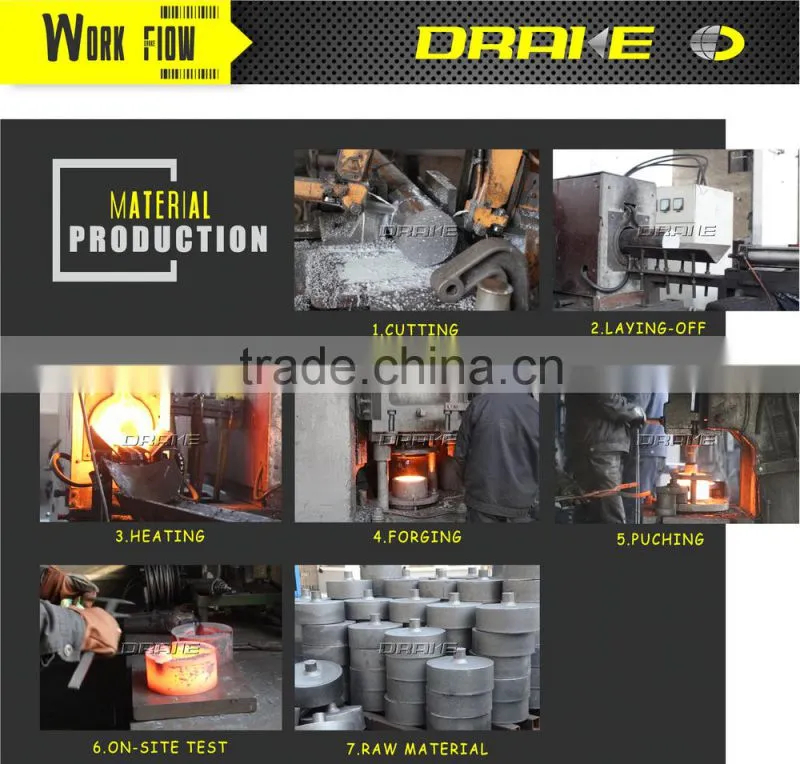

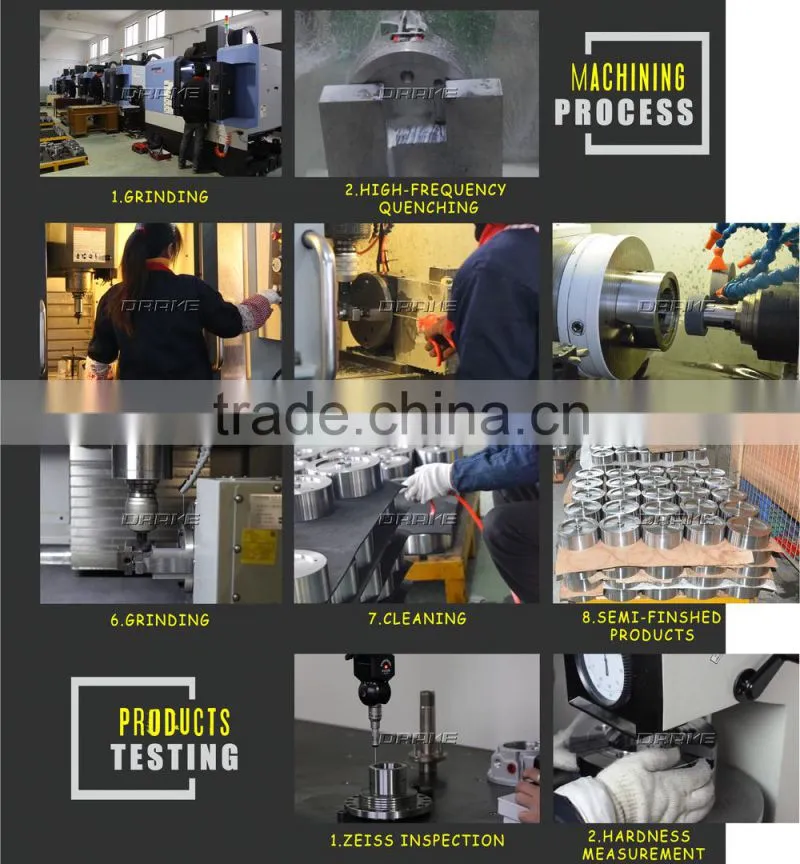

Flow & Packing

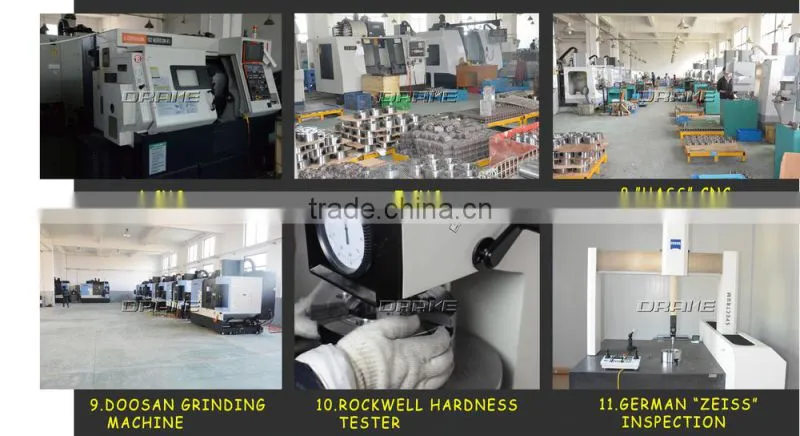

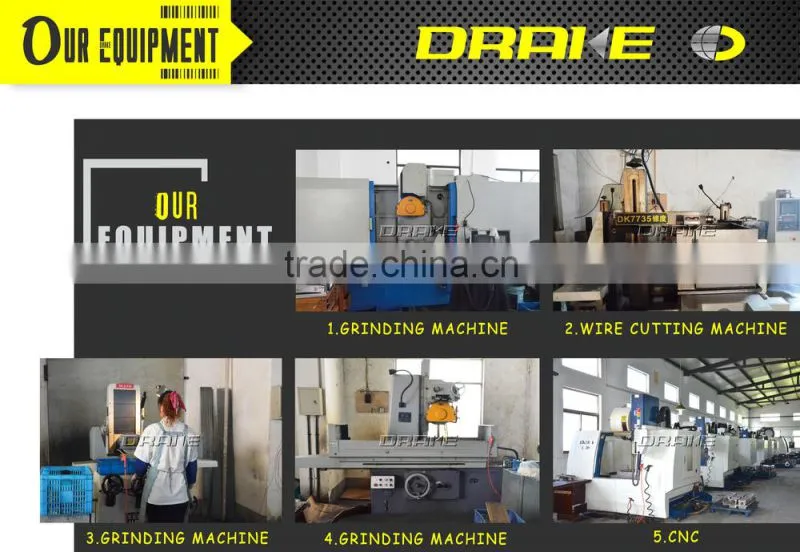

Equipments
Video
lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
