Popular Good Quality Indoor Full Colour p6 LED Display

FOB Price

US$ 1 - 5 / Square Meter

2 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Technology Specifications and product features;

1.Physical index	Pixel:6mm
	Color:Red+Green+Blue
	Pixel configuration:1R1G1B
	Pixel density:27778dots/sqm
	LED type :SMD3528
2 Module	Panel pixel(dots):32dots×16dots (32dotsx32dots optional)
	Modul size: 192mmx96mm (192mmx192mm optional)
3 Screen	Viewing:H120⁰,V120⁰
	Storage temperature:-40°C_~~+65°C
	Operated temperature:-40°C~~+60°C
	Humidity:10%-95%
	Screen thickness:cabinet thickness 12cm(Front Maintenance)
	Cabinet weight:35kg/sqm
	Protection:IP31
4 Power supply	Power: AC220Vor 380V
	Max power consumption:1200W/sqm average 500W/sqm
5 Control system	Computer:DELL V230 or similar computer
	Operating system:WIN7/2000/XP
	Display card:DVI
	Control mode:synchronization control
	Refresh frequency:≥2000Hz
	Grey/Color:16K,4K(Optional)/16.7M colors
	Calibrate Brightness:256level adjust
	Control system adopts:DVI+Master card+ Internet line
6 Main specifications	Driver:Constant current
	Driver mode:1/8 scan (1/8 scan optional)
	Frame frequency:≥60Hz
	Brightness:≥2000cd/sqm
	Accepting signal:RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
	MTBF:≥1000hours;Life-span:100,000hours
	Level up degree:pixel≤0.5mm;module<1mm
	Uniformity:pixel and module uniformity brightness
	Malfunction dot rate:<0.0001
	Switch power load:5V/40A
	Computer display mode:1024×768
	Control distance:internet line :100m;single mode fiber: 20km;multi mode fiber:500m

Product show:

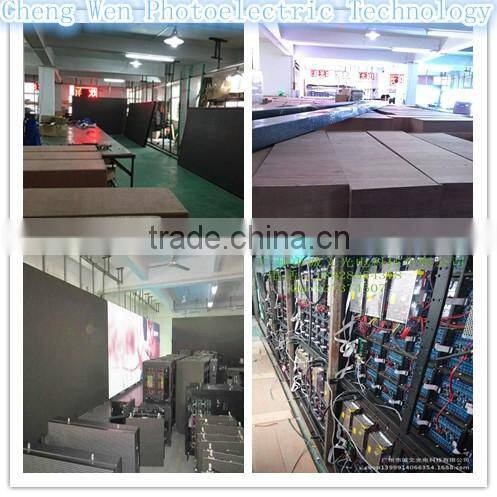

Our company;

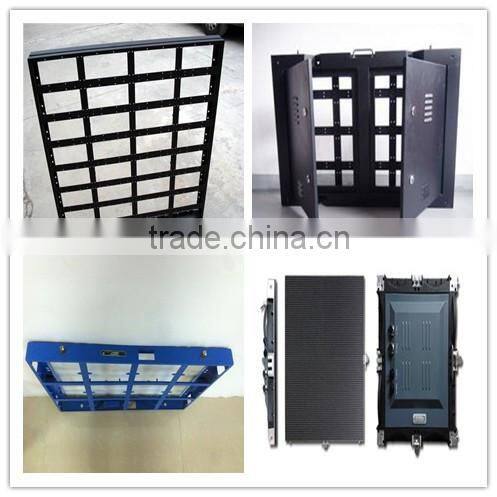

Display box:

Out packing:

Our service:

1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc
