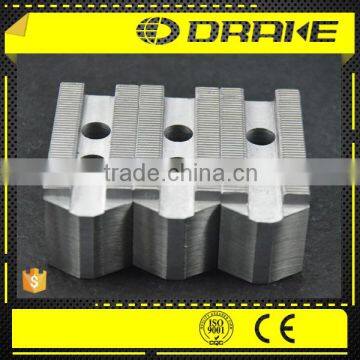

Standard Soft Jaws for Turret Type Cnc Lathe Machine CNC
US$ 39.27 - 53.72
MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DRAKE
Model Number:
HC05
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI QINGDAO NINGBO GUANGZHOU TIANJIN DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Use Standard Soft Jaws for Turret Type Cnc Lathe MachineUS$ 39.27 - 53.72MOQ: 1 Pair -
Standard Soft Jaws for Turret Type Cnc Lathe MachineUS$ 39.27 - 53.72MOQ: 1 Pair
-
Pneumatic Alloy Hard Jaw for Power ChuckUS$ 251 - 614.26MOQ: 1 Pair
-
Standard Soft Top Jaws for Turret Type Cnc Lathe MachineUS$ 39.27 - 53.72MOQ: 1 Pair
-
Standard Hardened Jaw for Turret Type Cnc Lathe MachineUS$ 285.25 - 653.23MOQ: 1 Pair
Place of Origin
Jiangsu, China
Brand Name
DRAKE
Model Number
HC05
Power
Hydraulic
Number of Jaws
Other
Standard soft jaws for turret type cnc lathe machine CNC
Product Description
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Szie Parameters
| Model/Spec. |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
Serration Pitch | 3-jaw Weight (kg) |
| HC04 | 53 | 23 | 23 | 10 | 5 | 9 | 14 | 30 | 14 | 9 | 14 | M8 | 3 | 1.5×60° | 0.45 |
| HC05 | 62 | 25 | 30 | 10 | 5 | 9 | 14 | 39 | 14 | 9 | 21 | M8 | 5 | 1.5×60° | 0.7 |
| HC06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 1.5 |
| HC08 | 95 | 35 | 37 | 14 | 5 | 24 | 25 | 46 | 19 | 13 | 22 | M12 | 16 | 1.5×60° | 2.4 |
| HC10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | 19 | 13 | 27 | M12 | 18 | 1.5×60° | 3.7 |
| HC12 | 130 | 50 | 50 | 21 | 5 | 39 | 30 | 61 | 25 | 17 | 33 | M16 | 23 | 1.5×60° | 6.5 |
| HC15 | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1.5×60° | 12.5 |
| HC08-1 | 95 | 35 | 37 | 12 | 5 | 24 | 20 | 51 | 17 | 11 | 21 | M10 | 14 | 1.5×60° | 2.4 |
| HC12-1 | 130 | 50 | 50 | 18 | 5 | 39 | 30 | 61 | 23 | 15 | 30 | M14 | 23 | 1.5×60° | 6.6 |
| HC15-1 | 165 | 62 | 62 | 25.5 | 5 | 37 | 43 | 85 | 32 | 21 | 38 | M20 | - | 1.5×60° | 12.5 |
| HC24-1 | 180 | 64 | 70 | 25 | 9 | 40 | 60 | 80 | 32 | 21 | 45 | M20 | - | 3.0×60° | 15.8 |
| HC32-1 | 210 | 74 | 90 | 25 | 9 | 40 | 80 | 90 | 32 | 21 | 65 | M20 | - | 3.0×60° | 29.2 |
NOTE: We can provide all kinds of soft jaws
45#
| Chemical Elements(%) | Mechanical Property (Mpa) | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength | Yield Strength |
| 0.42~0.50 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | ≥600 | ≥355 |
