Home > Industrial Equipment & Components > Cutter & Tongs > Chuck > Hardened Top Chuck Jaw Used for CNC Horizontal Machining Centers
Hardened Top Chuck Jaw Used for CNC Horizontal Machining Centers
US$ 251 - 614.26
MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
IVY pneumatic chucks hard jaws
Model Number:
HJ12 hard jaws (chuck jaw)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI GUANGZHOU DALIAN QINGDAO NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Pneumatic Alloy Hard Top Jaw for Power ChuckUS$ 251 - 614.26MOQ: 1 Pair -
Lathe Chuck Standard Soft Top Jaw for Cnc LatheUS$ 39.27 - 53.72MOQ: 1 Pair
-
Lathe Chuck Standard Hardened Jaw for Cnc LatheUS$ 285.27 - 653.21MOQ: 1 Pair
-
Lathe Chuck Standard Hard Top Jaw for Cnc LatheUS$ 252.25 - 615.61MOQ: 1 Pair
-
Chuck Soft Jaw for High Speed Machining CenterUS$ 39.27 - 53.72MOQ: 1 Pair
Place of Origin
Jiangsu, China
Brand Name
IVY pneumatic chucks hard jaws
Model Number
HJ12 hard jaws (chuck jaw)
Power
Hydraulic
Number of Jaws
3

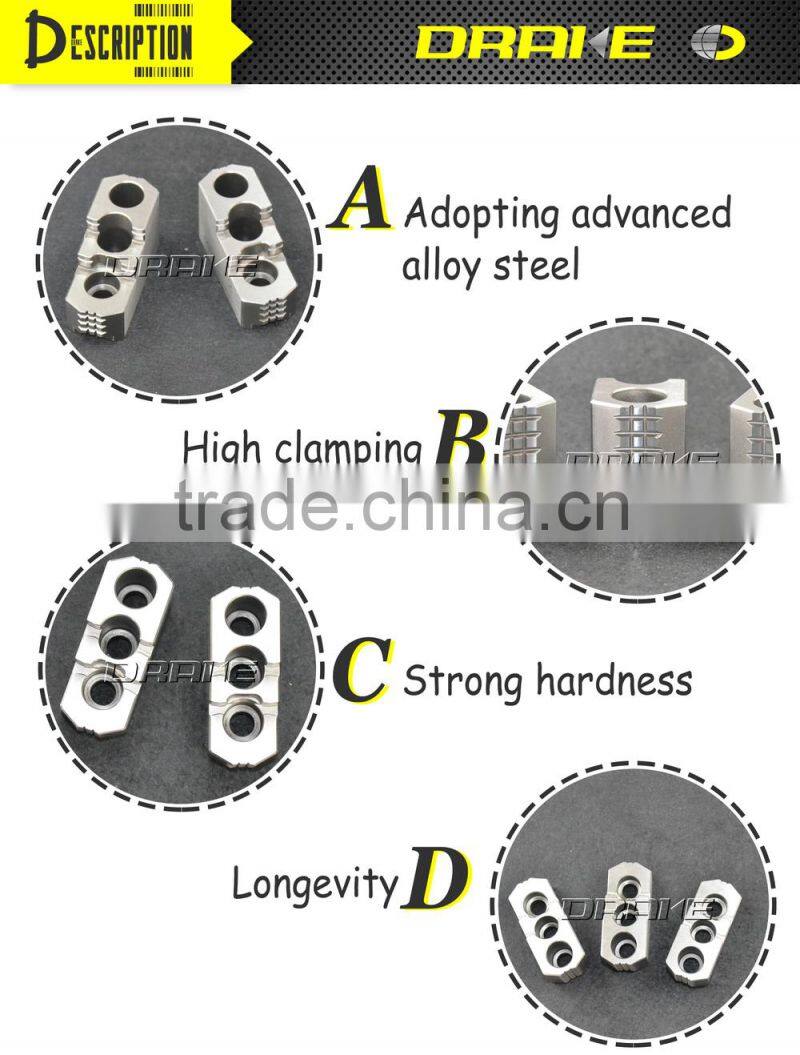

Hardened Top Chuck Jaw used for CNC Horizontal Machining Centers
Product Description
hydraulic chuckhydraulic chuckhydraulic chuckhydraulic chuckhydraulic chuck
Parameters

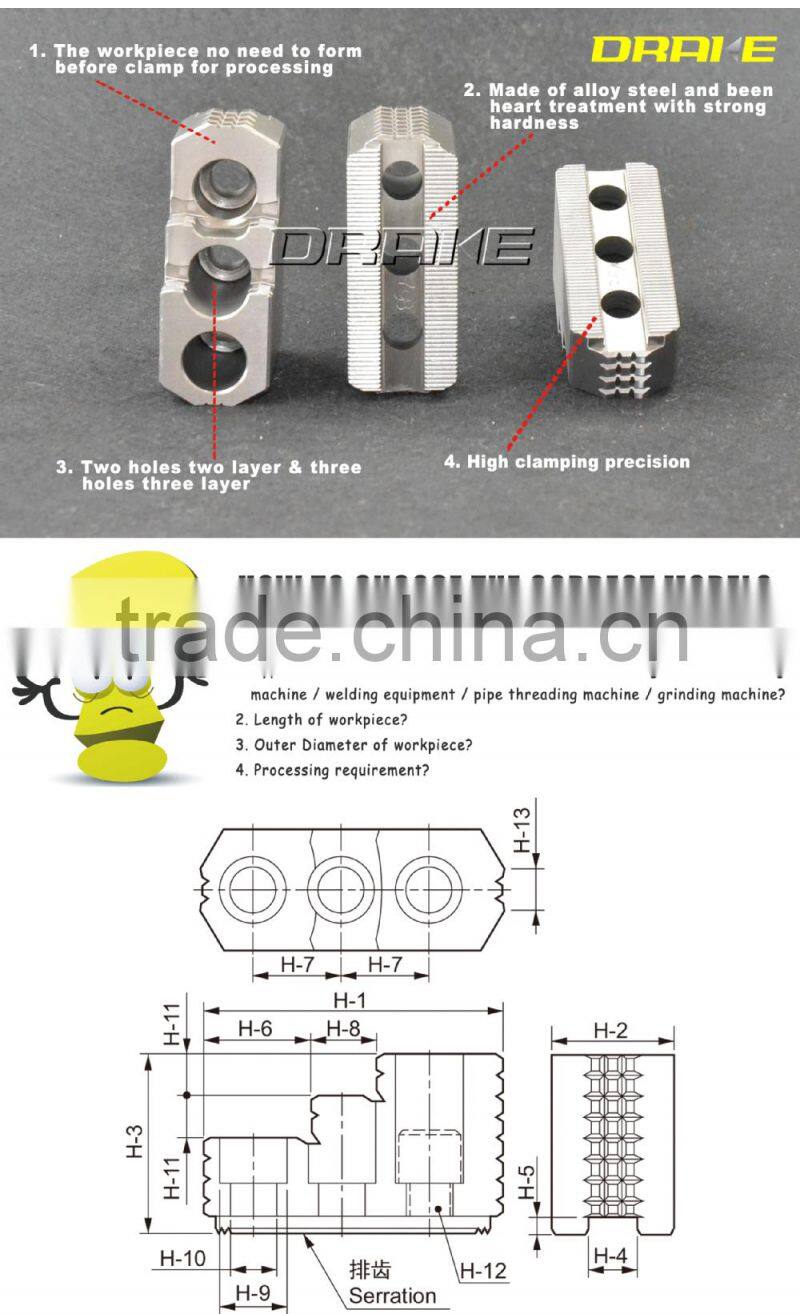

Size Parameters
| Model/Spec. | H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | H-10 | H-11 | H-12 | H13 |
Serration Pitch |
Reference Diagram |
3-jaw Weight |
| HJ05 | 53 | 23 | 27.5 | 10 | 4 | 30.5 | 14 | 22.5 | 13.5 | 8.5 | 10 | M8 | 6 | 1.5×60° | figure2 | 0.4 |
| HJ06 | 67 | 31 | 35 | 12 | 5 | 39.5 | 20 | 27.5 | 17 | 11 | 12 | M10 | 11 | 1.5×60° | figure2 | 1.0 |
| HJ08 | 86 | 35 | 51 | 14 | 5 | 31 | 25 | 18 | 19 | 13 | 12 | M12 | 12 | 1.5×60° | figure1 | 1.9 |
| HJ10 | 99.5 | 40 | 54 | 16 | 5 | 43 | 30 | 17 | 19 | 13 | 13 | M12 | 15 | 1.5×60° | figure1 | 2.9 |
| HJ12 | 103 | 50 | 52 | 21 | 4 | 62.5 | 30 | 40.5 | 25 | 17 | 17 | M16 | 30 | 1.5×60° | figure2 | 3.5 |
| HJ12-1 | 103 | 50 | 52 | 18 | 5 | 62.5 | 30 | 40.5 | 22 | 15 | 17 | M14 | 30 | 1.5×60° | figure2 | 3.6 |
| HJ15 | 149 | 62 | 86 | 22 | 8 | 63 | 43 | 34 | 32 | 21 | 20 | M20 | 40 | 1.5×60° | figure1 | 9.6 |
| HJ15-1 | 149 | 62 | 86 | 25.5 | 5 | 63 | 43 | 34 | 32 | 21 | 20 | M20 | 40 | 1.5×60° | figure1 | 9.5 |
| HJ24-1 | 159.5 | 80 | 90 | 25 | 9 | 104.5 | 50 | 55 | 32 | 21 | 40 | M20 | 55 | 3.5×60° | figure2 | 14.3 |
NOTE: We can provide all kinds of hard jaws
40Cr
| Chemical Elements(%) | Mechanical Property (Mpa) | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength | Yield Strength |
| 0.42~0.50 | 0.17~0.37 | 0.50~0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | ≥600 | ≥355 |
Certifications
Flow & Packing
Equipments
Video
lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
