CNC Lathe Machine Soft Jaw for Hydraulic CNC Maching Center Service

FOB Price

US$ 39.27 - 53.72 / Pair

1 Pair(Min. Order)

Port SHANGHAI QINGDAO NINGBO GUANGZHOU TIANJIN DALIAN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	DRAKE
Model Number	HC12	Power	Hydraulic
Number of Jaws	Other

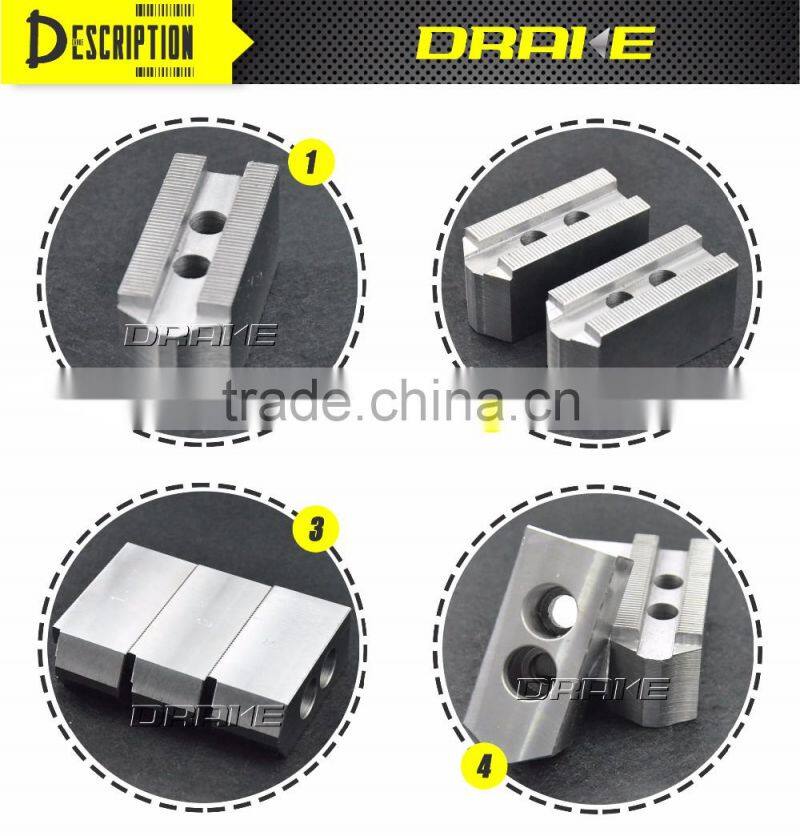

Product Description

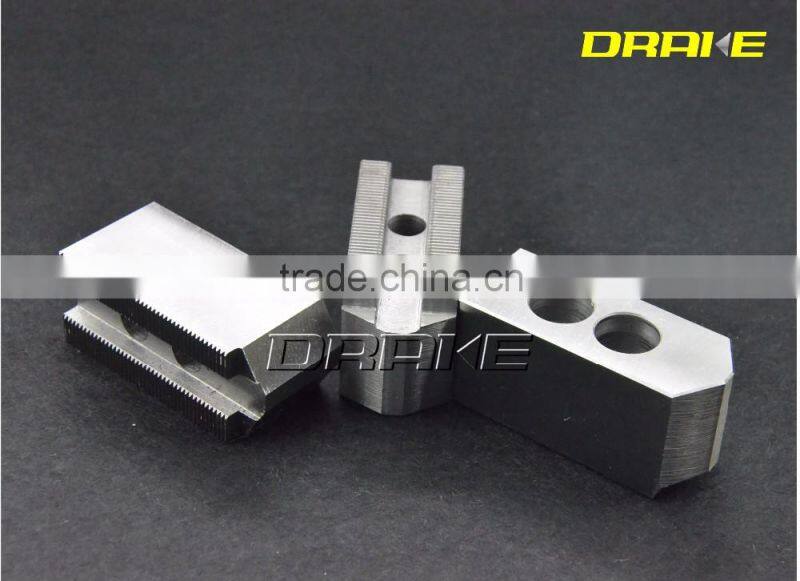

CNC Lathe Machine Soft Jaw for Hydraulic CNC Maching Center Service

Product Description

Parameters

There are three questions to answer to aid the correct choice of power chuck:

1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

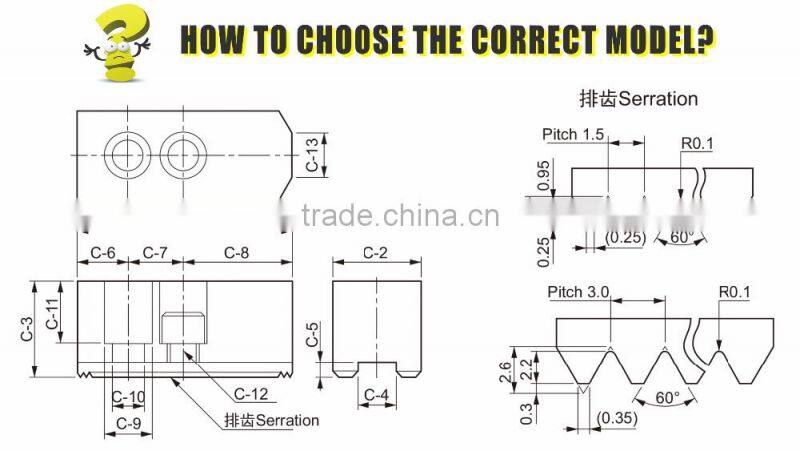

Szie Parameters

Model/Spec.	C-1	C-2	C-3	C-4	C-5	C-6	C-7	C-8	C-9	C-10	C-11	C-12	C-13	Serration Pitch	3-jaw Weight (kg)
HC04	53	23	23	10	5	9	14	30	14	9	14	M8	3	1.5×60°	0.45
HC05	62	25	30	10	5	9	14	39	14	9	21	M8	5	1.5×60°	0.7
HC06	73	31	36	12	5	15	20	38	17	11	21	M10	14	1.5×60°	1.5
HC08	95	35	37	14	5	24	25	46	19	13	22	M12	16	1.5×60°	2.4
HC10	110	40	42	16	5	30	30	50	19	13	27	M12	18	1.5×60°	3.7
HC12	130	50	50	21	5	39	30	61	25	17	33	M16	23	1.5×60°	6.5
HC15	165	62	62	22	8	37	43	85	32	21	38	M20	-	1.5×60°	12.5
HC08-1	95	35	37	12	5	24	20	51	17	11	21	M10	14	1.5×60°	2.4
HC12-1	130	50	50	18	5	39	30	61	23	15	30	M14	23	1.5×60°	6.6
HC15-1	165	62	62	25.5	5	37	43	85	32	21	38	M20	-	1.5×60°	12.5
HC24-1	180	64	70	25	9	40	60	80	32	21	45	M20	-	3.0×60°	15.8
HC32-1	210	74	90	25	9	40	80	90	32	21	65	M20	-	3.0×60°	29.2

NOTE: We can provide all kinds of soft jaws

45#

Chemical Elements(%)								Mechanical Property (Mpa)
C	Si	Mn	P	S	Cr	Ni	Cu	Tensile Strength	Yield Strength
0.42~0.50	0.17~0.37	0.50~0.80	≤0.035	≤0.035	≤0.25	≤0.25	≤0.25	≥600	≥355
