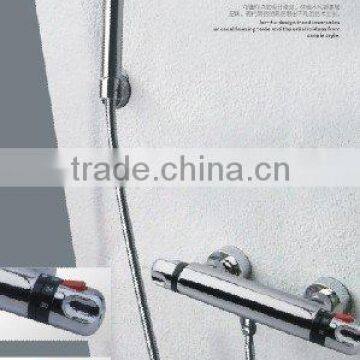

Thermostatic Shower Rail Set

Work  mpa

0.05-1Mpa

The best Mpa

0.1-0.5Mpa

Cold water  temperature

5-29°C

Hot water   temperature

50-80°C

temperature range

20-50°C

Set security button temperature

38°C

Cold water to test its

Cold water from five seconds for the water flow rate dropped to measures 1.9 per minute, Out the flow of water≤150ml, leaving water temp≤49°C

Life  tests

CSA B125-98 ASSE 1016(≥100,000cycle)

Water temperature automatically regulate sensitivity

As the temperature and pressure variation20%, Water temperature changes≤2°C. As the pressure constant, Hot water the temperature change50-80°C, Cold temperature4-29°C, And out of the water temperature≤2°C

Standards

CSA B125-98 ASSE 1016 EN 1111 AS-4032.1 QB2806-2006

Work  mpa

static head1.6Mpa, dynamic pressure0.6Mpa

operating temperature

top85°C

opening degree

max23°

rotation

max100°

Lock nuts torque

10-12N.m

dba

In 0.3mpa the maximum 19 decibel(attach muffler)

Handle the torque

≥15N.m

Blasting stress test

in 3.5Mpa  one minute. no leakage

Water temperature automatically regulate sensitivity

Water pressure to change for 50%, the water temperature changes ≤ 2 °C

cold feed

Cold water from five seconds for the water flow velocity automatically to a minute, perhaps measures 1.9 ≤ 150ml, water temperature ≤ 49 °C

Life  tests

CSA B125-98 ASSE 1016(≥100,000cycle)

Standards

CSA B125-98 ASSE 1016 EN 1111 AS-4032.1 QB2806-2006
