VIN Code laser marking machine for kinds metals

Specifications

Laser marking machine
1.Mark on all kinds of metals
2. Continuous work on 24 working hours
3.CE Approved
4.High Quality

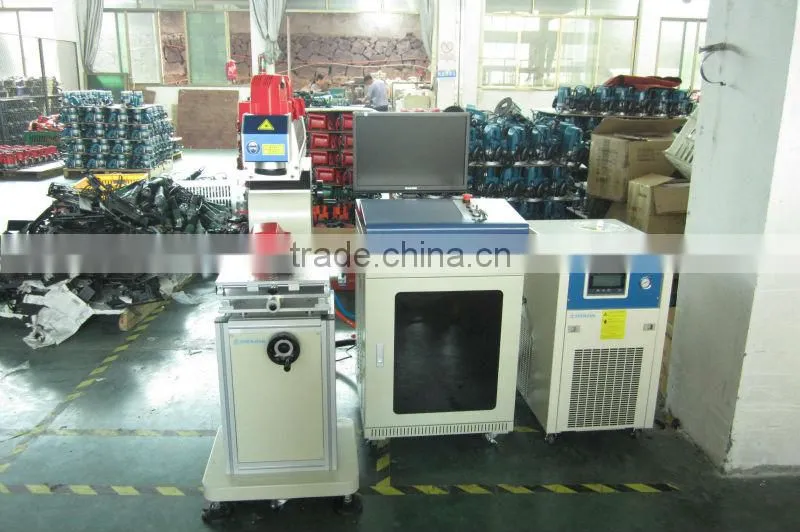

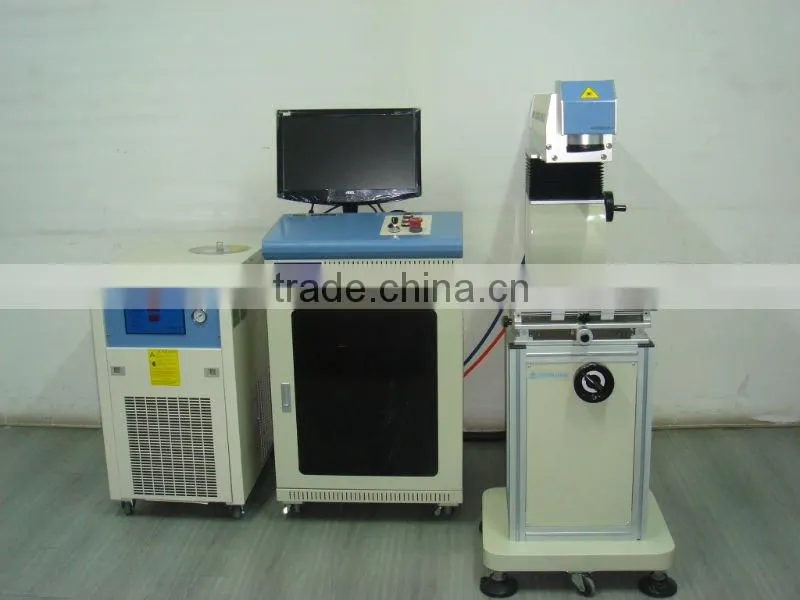

Laser  marking machine

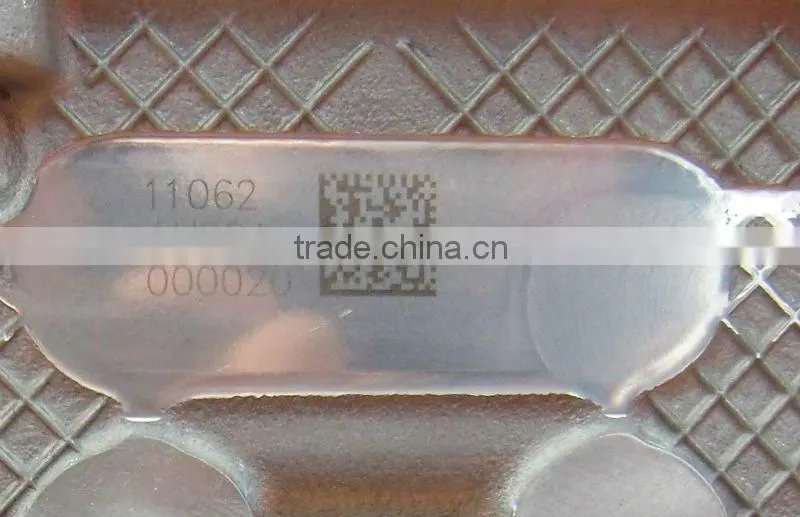

 Sample



Technical parameters

Input voltage:	AC220V±20V
Frequency:	50Hz
Input power:	1.5kVA
Wavelength:	1.064µm
Power:	50W
Instability:	±5%
Radio-frequency power:	≤50W
Modulating frequency power:	200Hz~50kHz
Pulse duration modulation:	4µs~25µs
Working area:	110mmx110mm
Scanning speed	0~7000mm/s
Marking depth:	0.01~0.2mm (according to material)
Marking width:	0.1-0.2mm (according to material)
XY table working area:	85mm x 85mm
Laser head lifting height:	200mm
Cooling way:	Refrigeration unit cools the circulating media then the circulating media cools the laser cavity.
Refrigerating power:	1P
Refrigeration unit:	De-ionized water, distilled water or purified water.



·Feature:



1. Diode pumped laser marking machine adopts high-quality semi-conductor module, life time over 10k hours.
2. Fast speed & no touch processing, the heat exchange is little, the material is not easy to distort.
3. Can quickly mark letter, figure, graphics or auto-coding, serial No., batch No., barcode, 2 -D code, etc. on metal or nonmetal surface (plastic, silicon or porcelain, etc.) which are precise, permanent, non-polluting and environment-friendly.
4. 4.      Its mainly equipped with the international advanced semiconductor light-emitting diode. diode laser module, scanner head, beam expander, reflect lens, Q-switch, Q-driver and other key parts imported from USA,UK, Singapore etc.



·Main application field: Hardware, IC, instrumentation, electronics,machinery industry, jewelry, glasses, auto parts, telecommunications products, plastic buttons etc.
